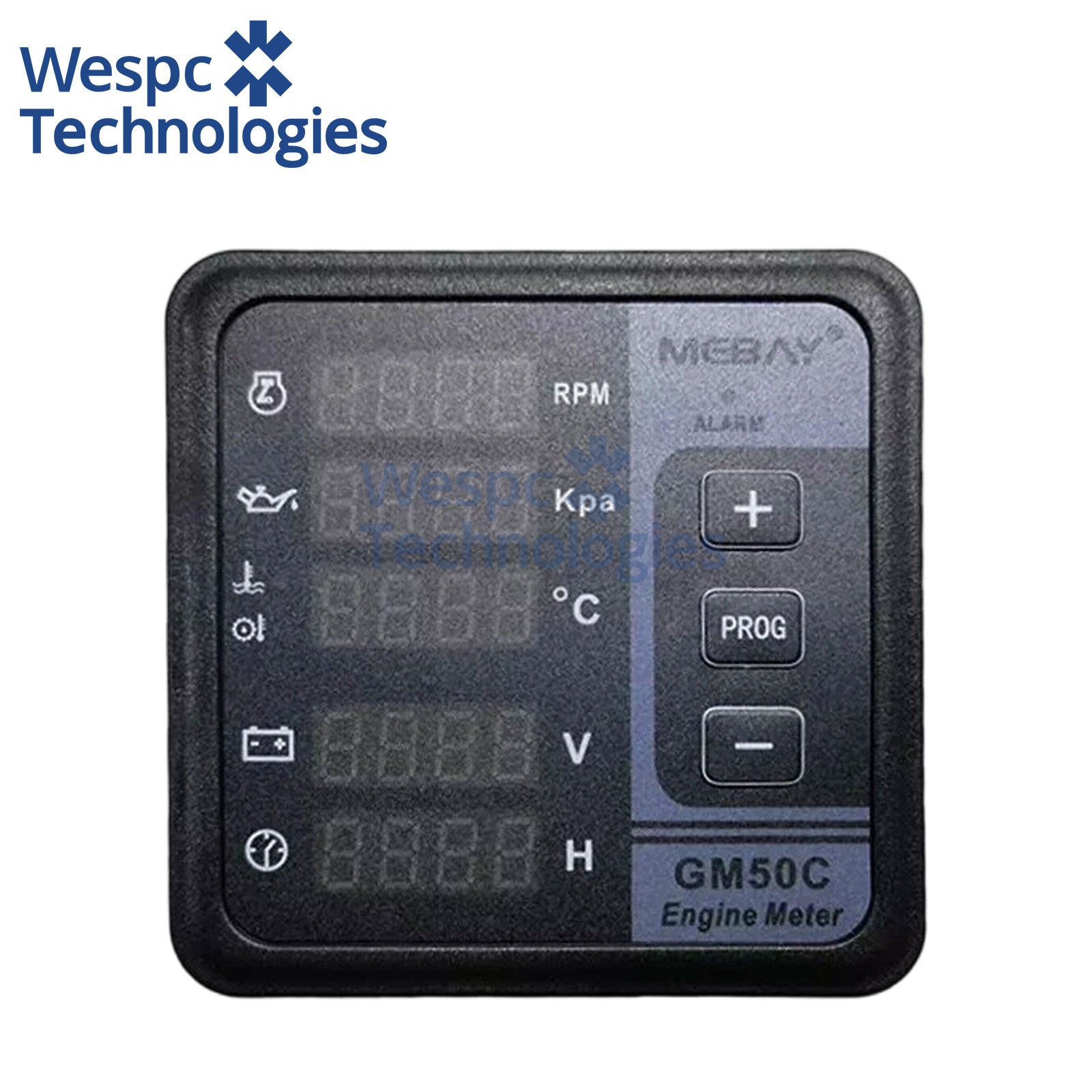

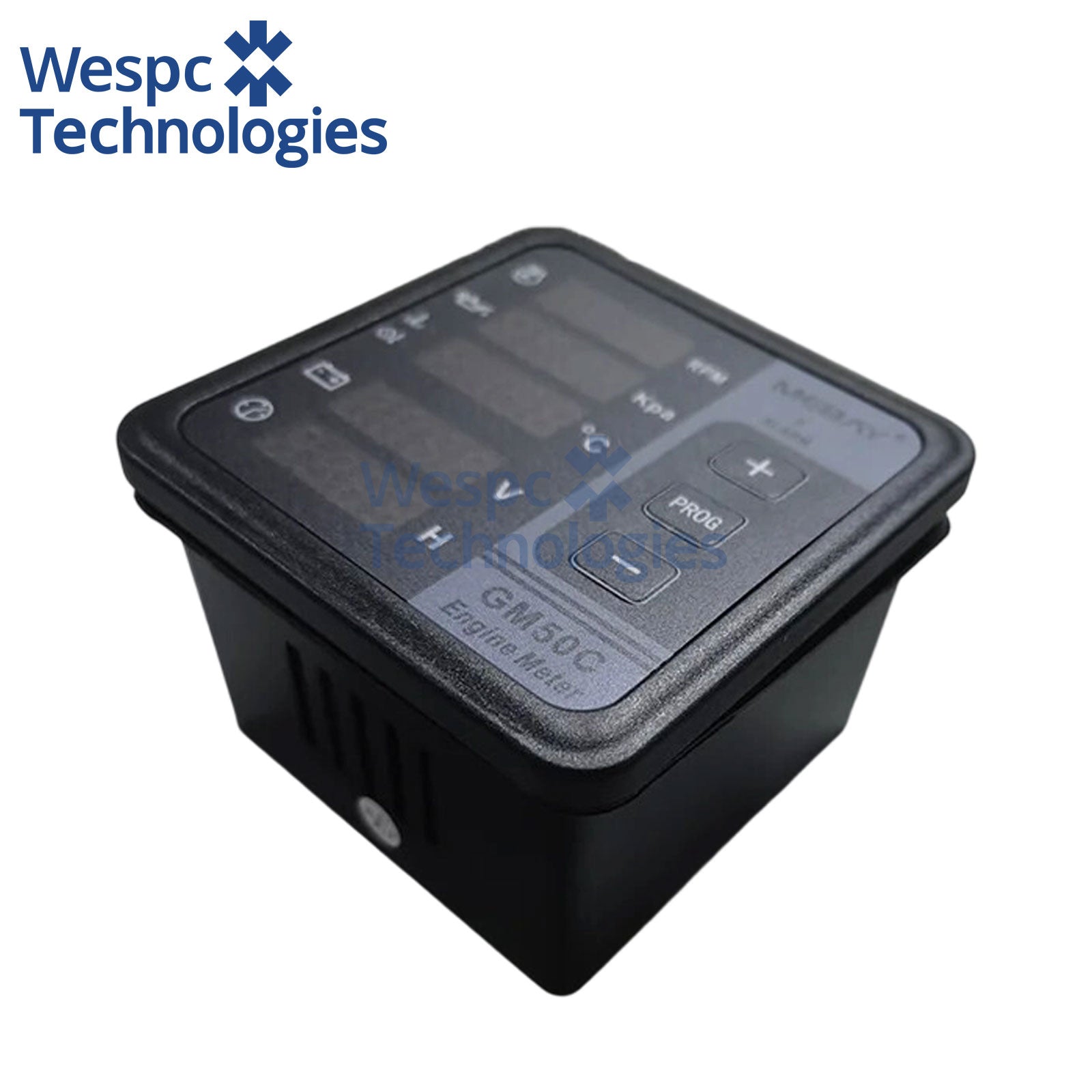

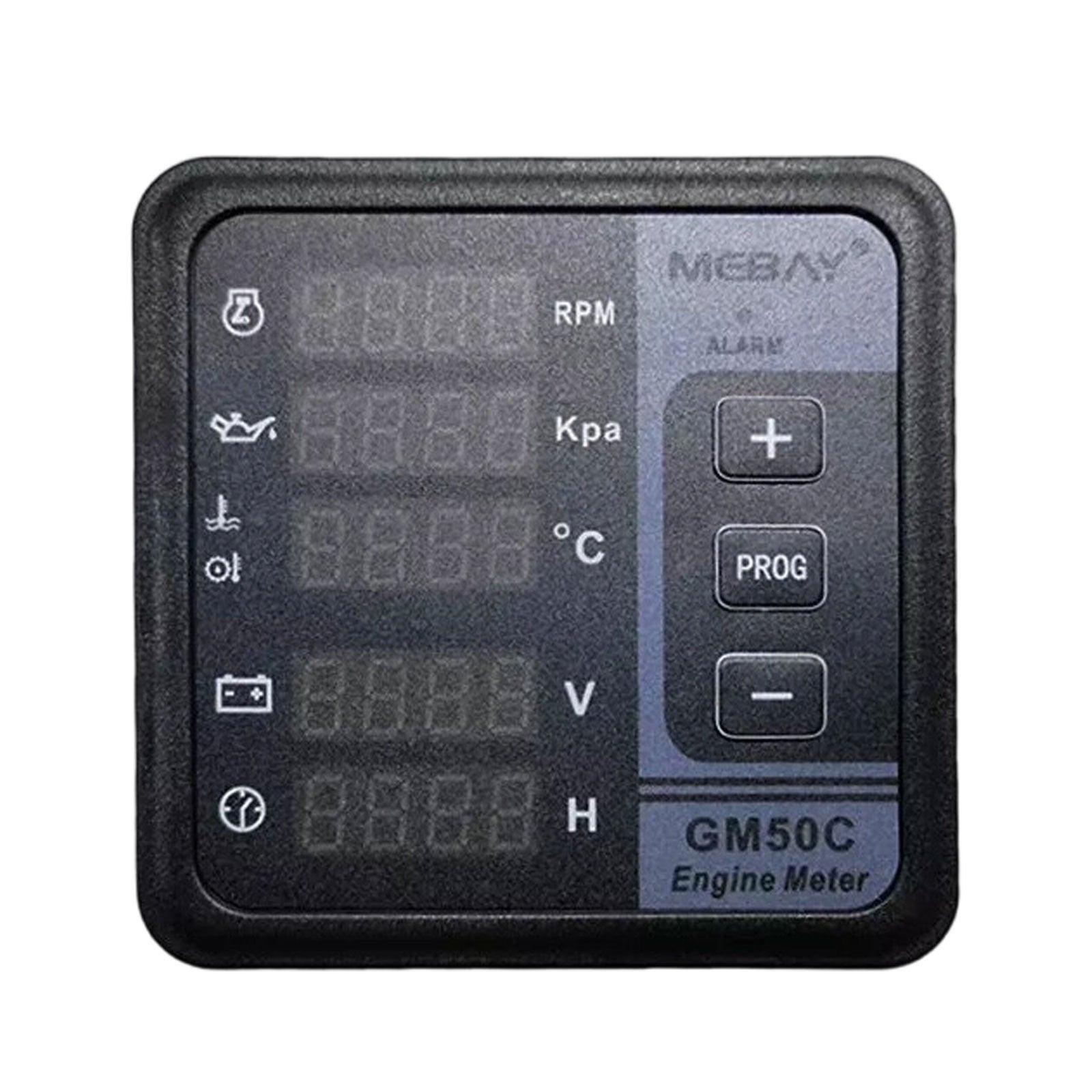

Original Mebay Genuine GM50C Generator Digital Multifunction Meter Engine Battery Voltage

Original Genuine GM50C Generator Digital LCD Multifunction Meter Monitor Engine Speed Oil Pressure Oil/Water Temperature Battery Voltage

Product Information:
Part No.:GM50C
GM50C：Engine parameters gathered through Can Port andinsideJ1939protocol, Display ECU alarm code,Protection Alarm, Enginespeedcontrolfunction,value set by front face buttons.

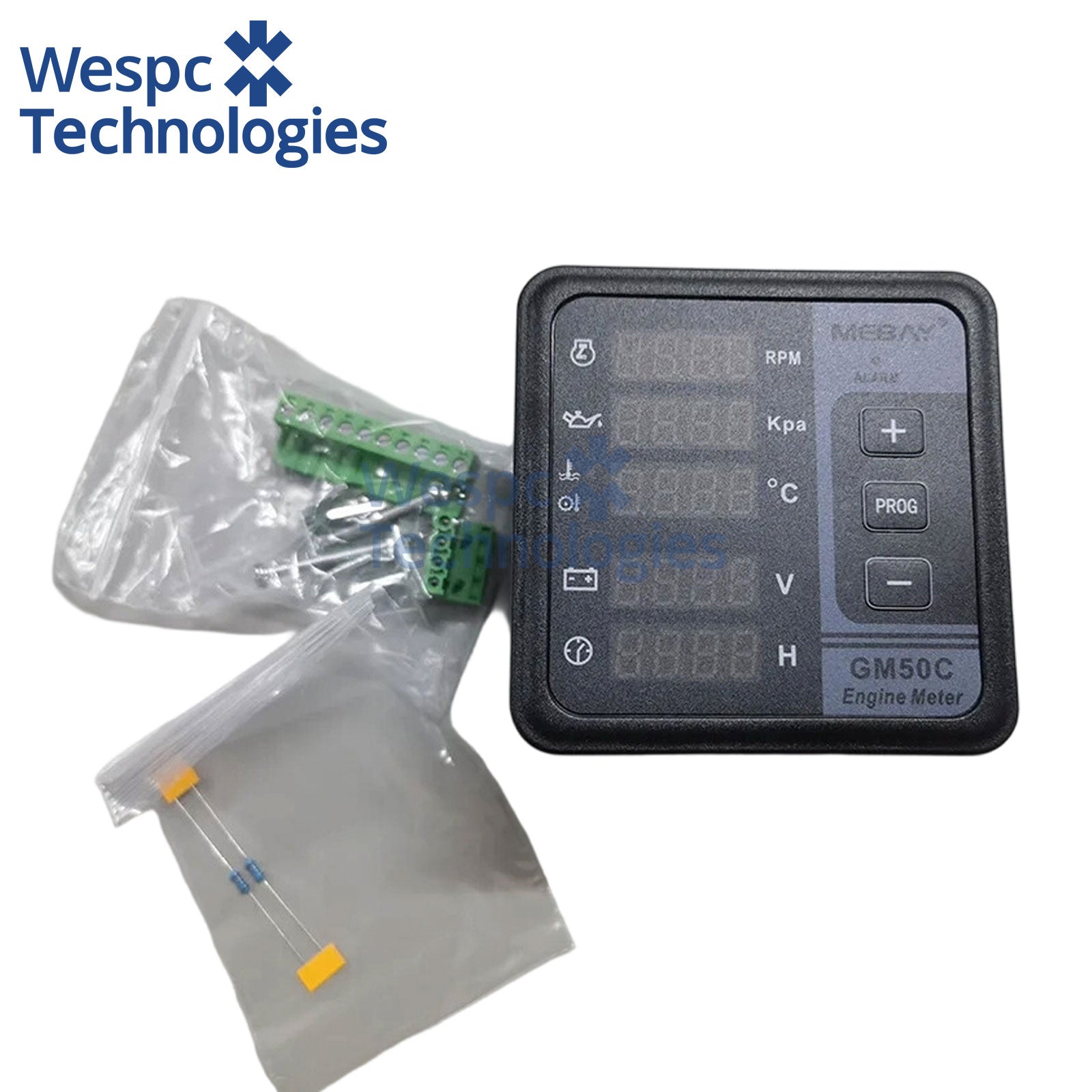

Package includes: 1pc Digital Multi Functional Meter

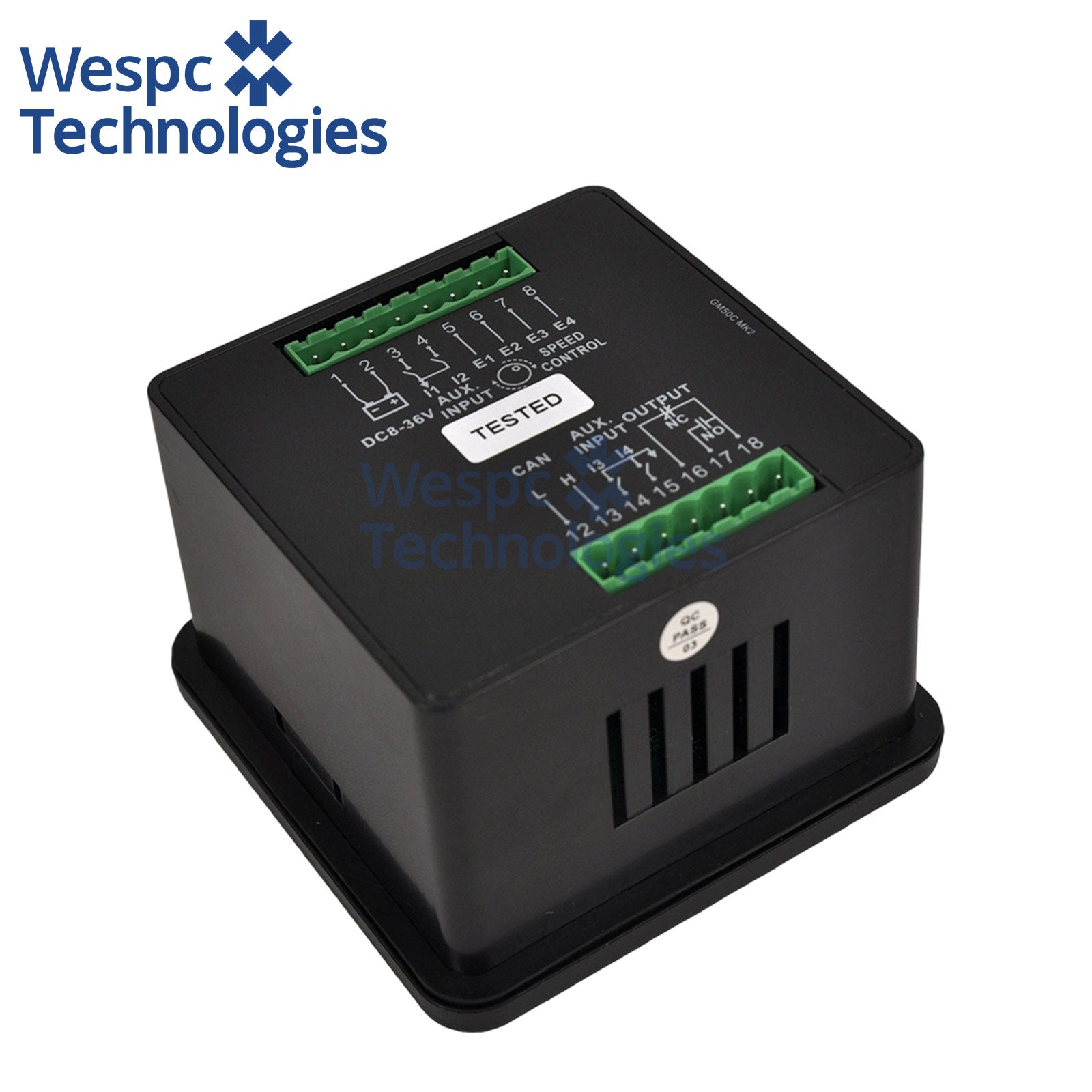

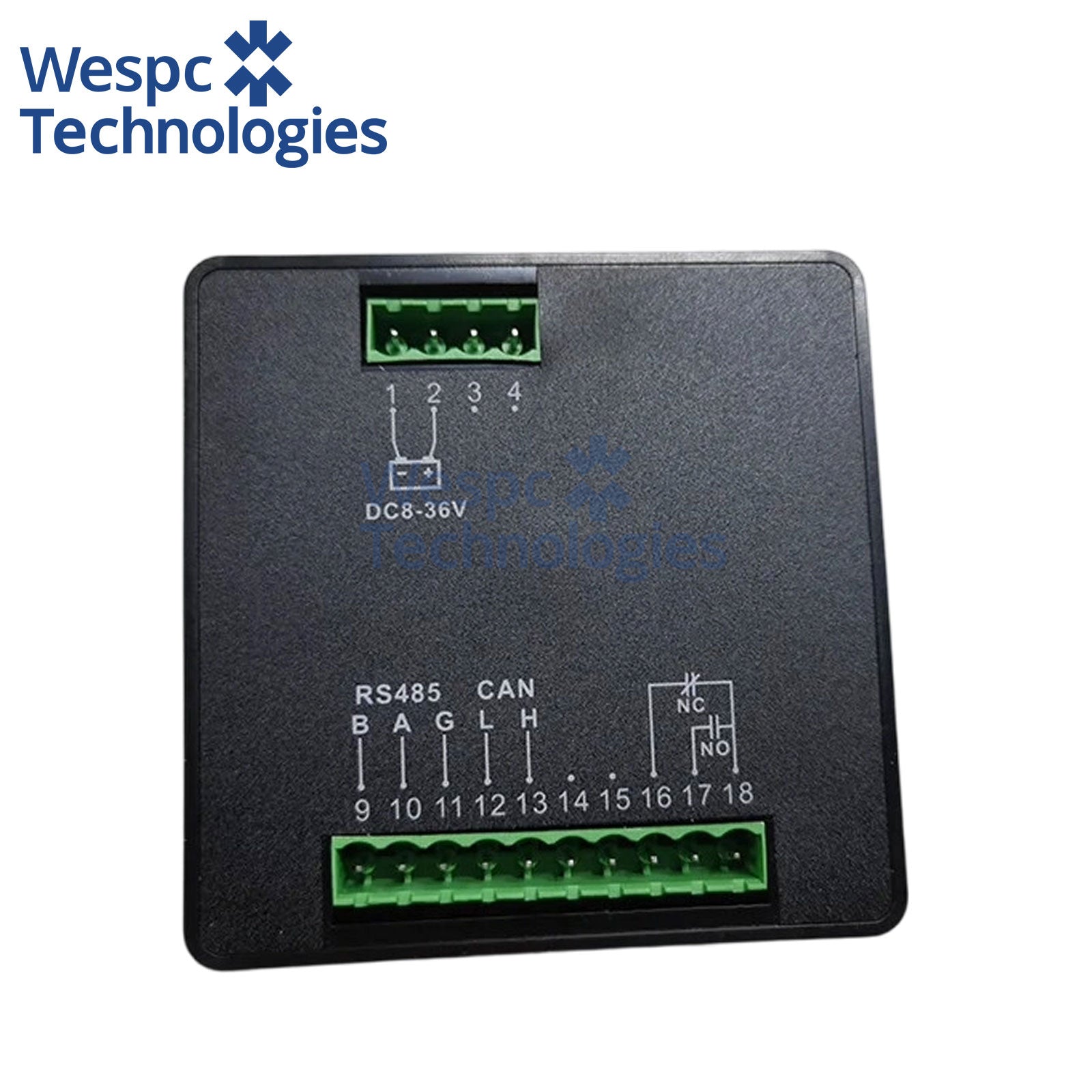

Mebay Digital Meter GM50C is one light and low price-orientated module used for demonstrating engine RPM,water/oil temperature, oil pressure, battery voltage and Hours. The users can adjust and set the parameters by the button on the front face in order to meet the different requests. Besides, it uses the European-style terminals for connection which is more convenient for installation and detachment

Specification
·DC Supply: 8～36 V continuous;
·Consumption Power: MAX 1.5 W;
·Battery Voltage Accuracy: deviation≦±1%;
·Accumulation Time :0-999999Hours;
·Min Time Record :0.1Hours;
·Alarm Output: Neg-output, Max DC1A;
·Operation Temperature:-30～65℃; Storage Temperature:-40～85℃;
·Ingress Protection:IP54(The front face after installation); Size (W * H * D):100mm*100mm*77mm;
·Installation Size (W * H):91mm*91mm; Weight:150 g

Features
Various kinds of protections
Input frequency is available to check RPM
Variety of sensor curves' parameters is set inside
Sensor curve can be self-defined by buttons
English and symbols demonstration
The parameters can be set and adjusted by the button on the front face.

Parameter Display
Engine RPM Engine Oil Pressure
Engine Oil Temperature
Engine Cooling Water Temperature
Battery Voltage Accumulation Time.
