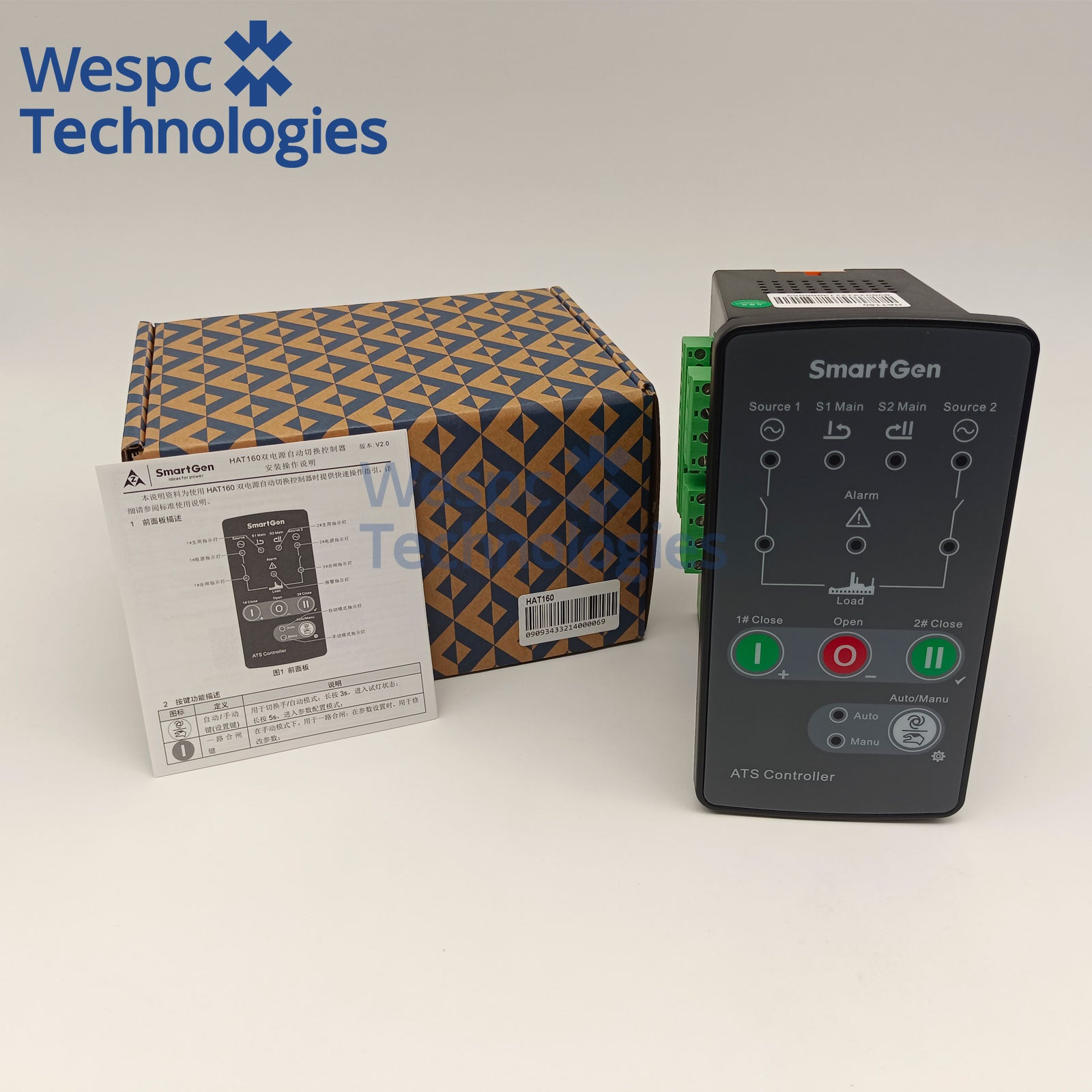

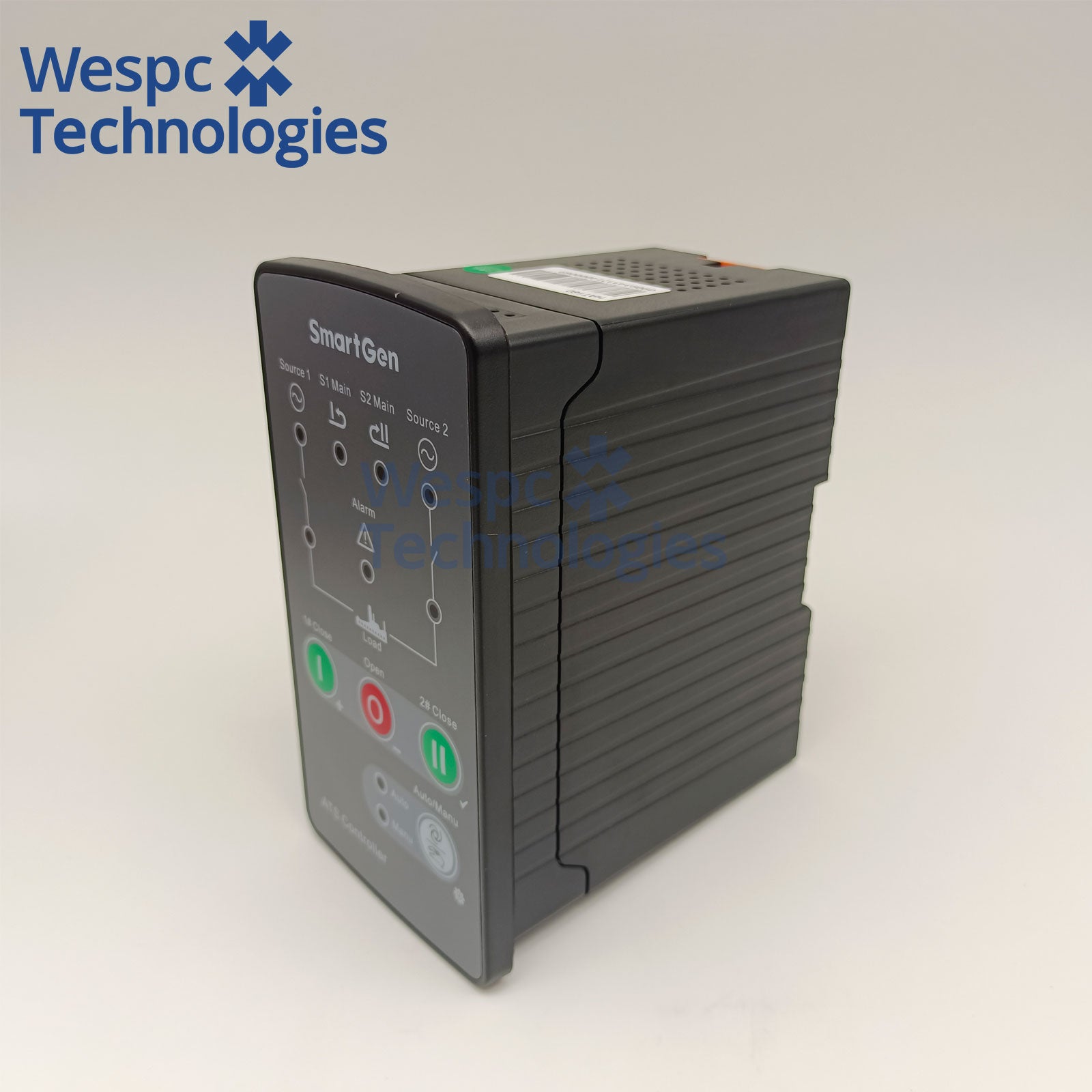

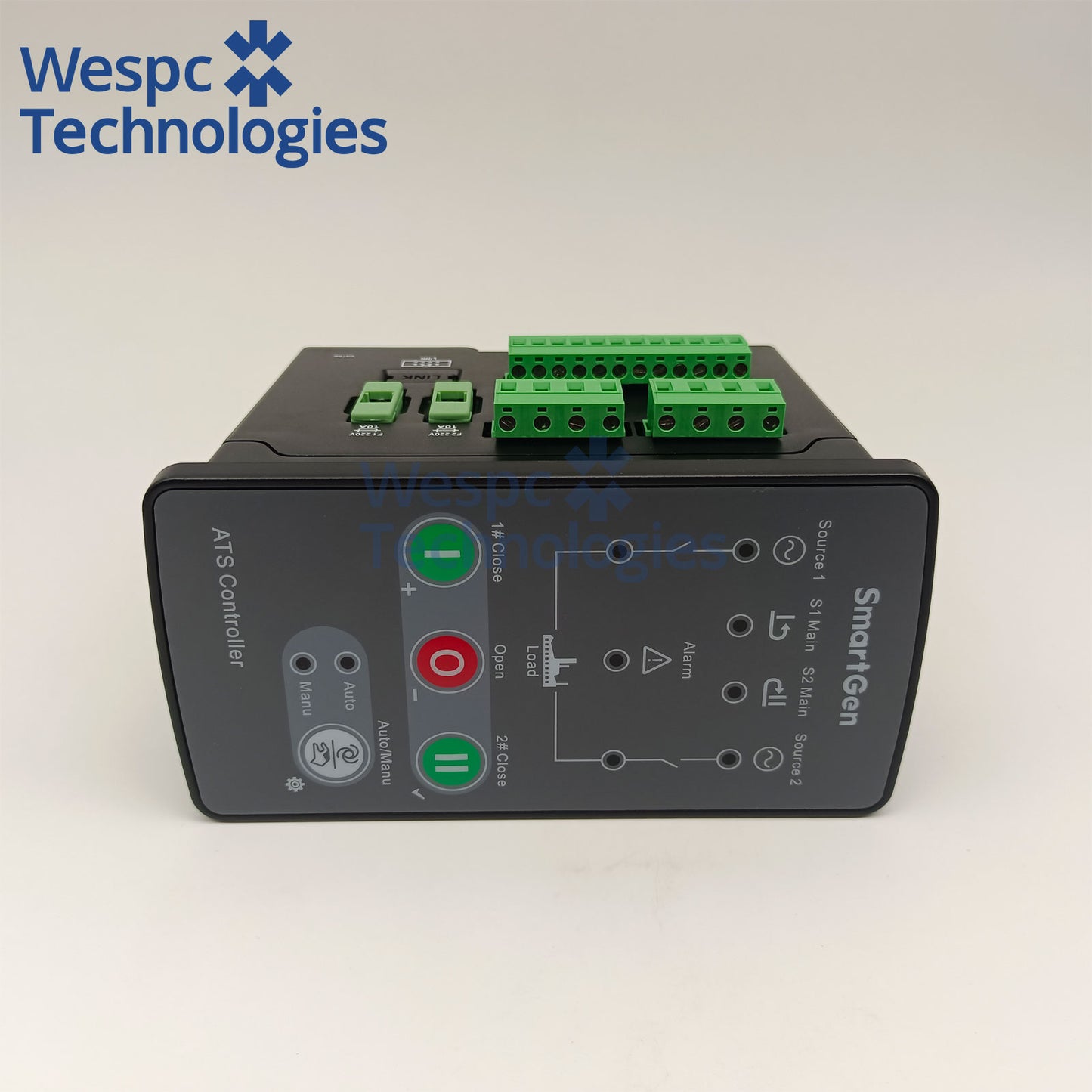

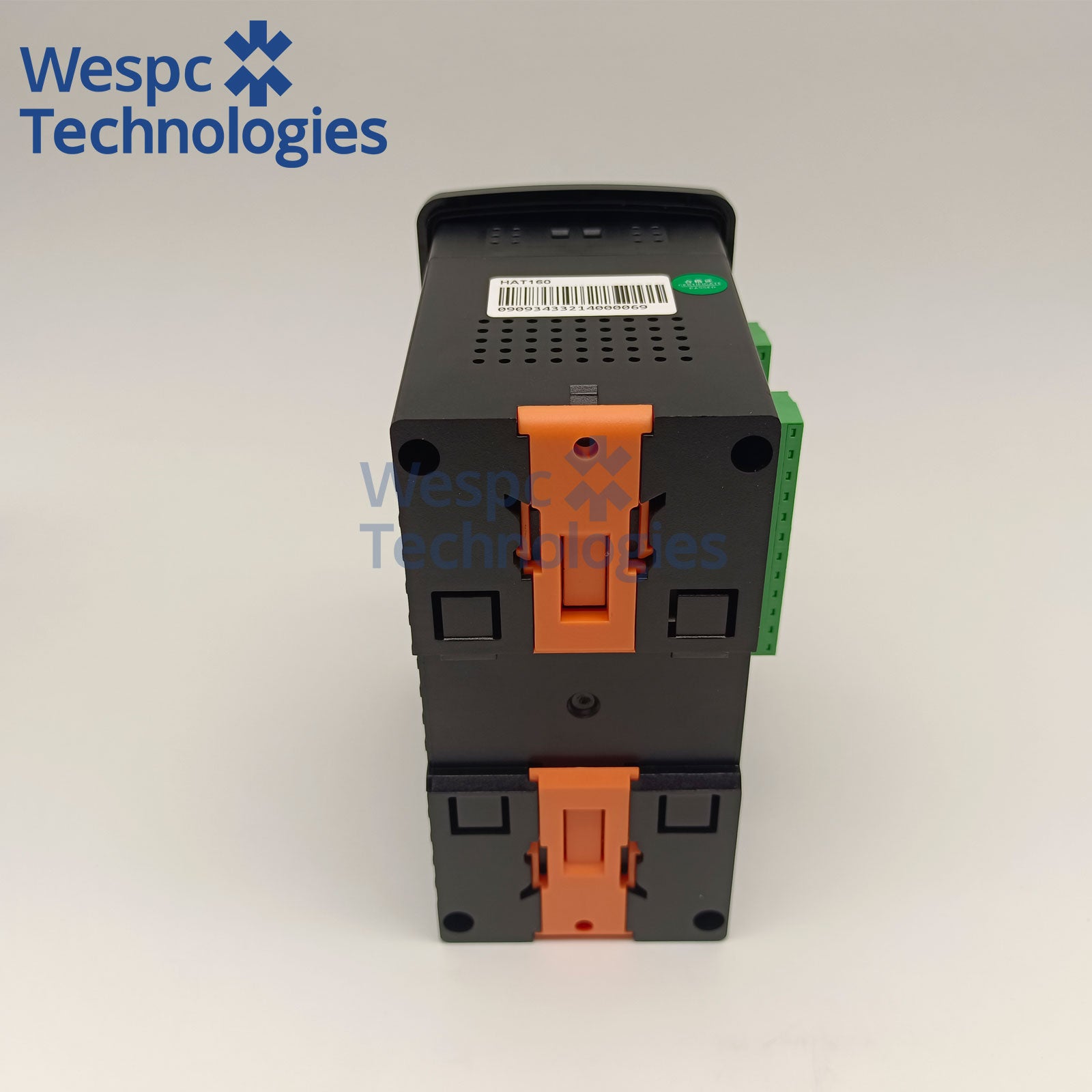

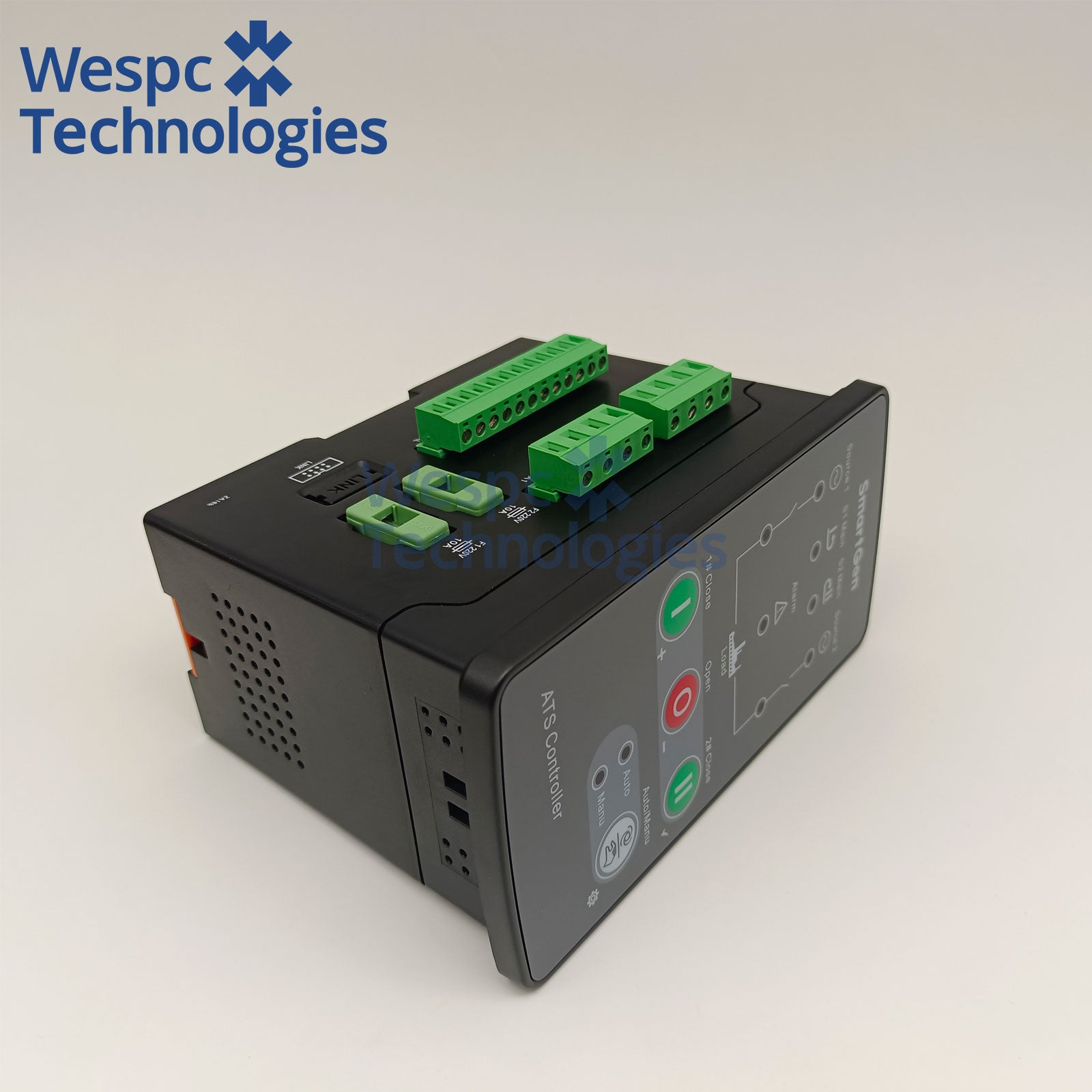

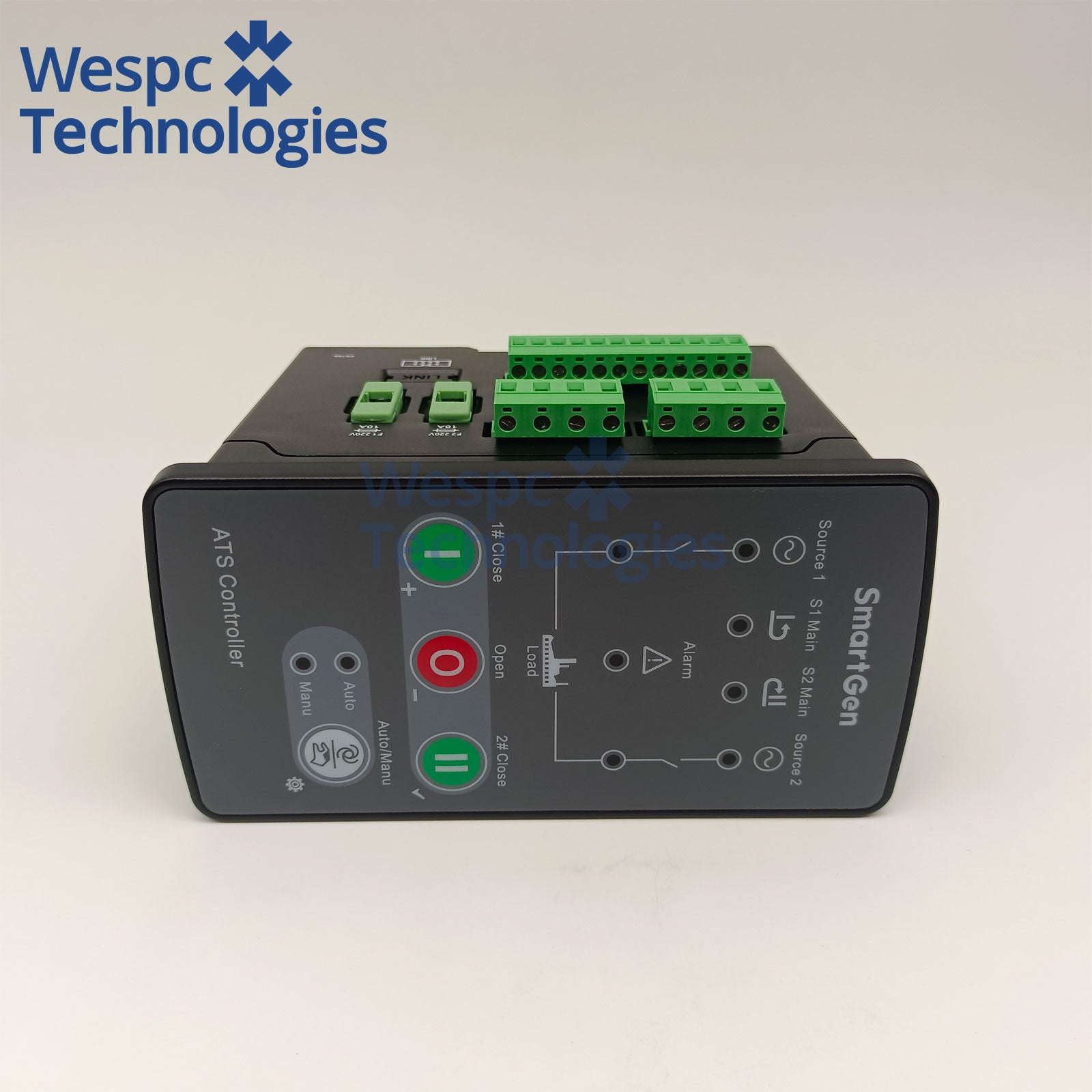

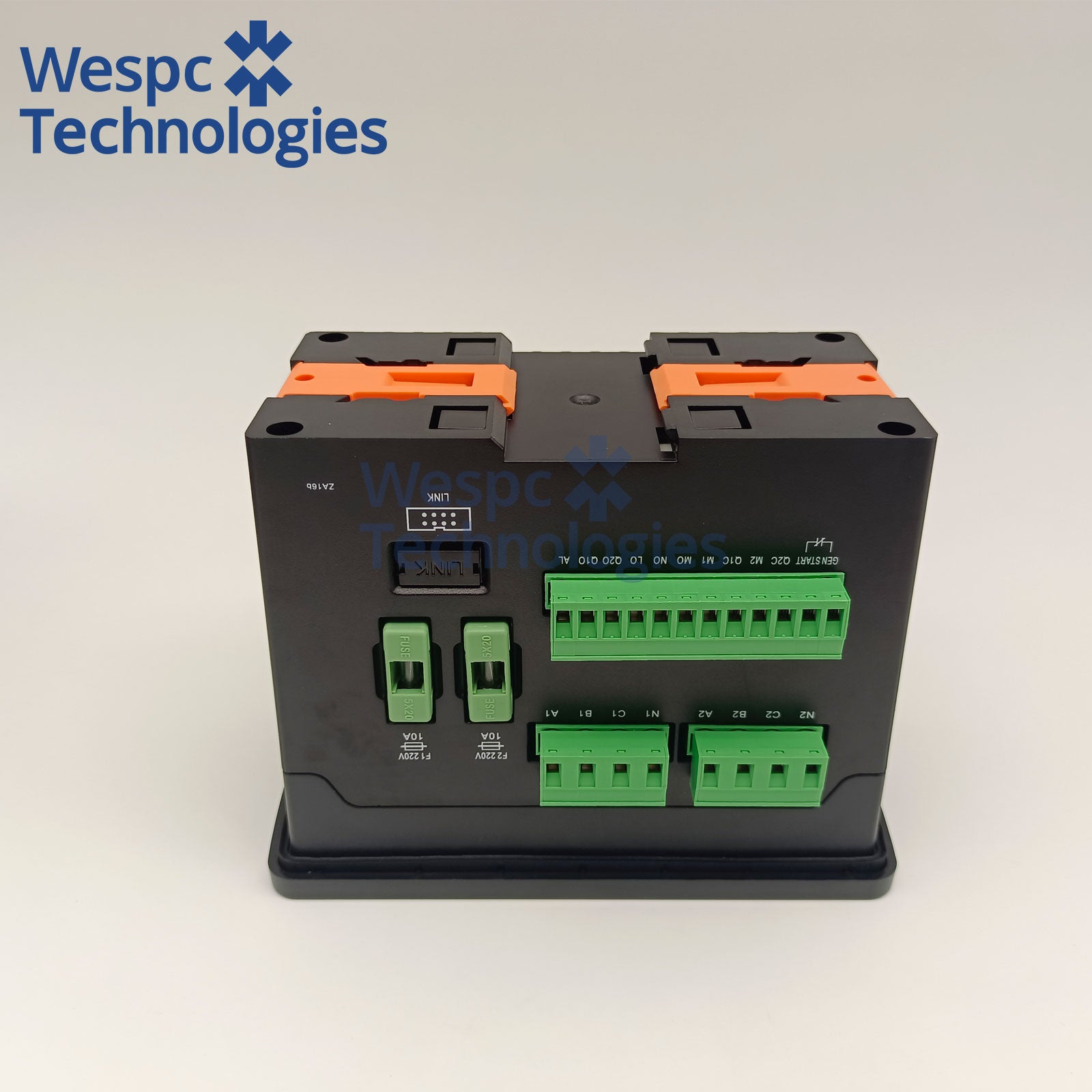

Original SmartGen HAT160 Dual Power ATS Automatic Transfer Controller Fits for 2-stage CB PC ATS Switch
Original SmartGen HAT160 Dual Power ATS Automatic Transfer Controller Fits for 2-stage CB PC ATS Switch
Regular price
$128.00 USD
Regular price
$0.00 USD
Sale price
$128.00 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
SMARTGEN HAT160 Original Automatic Transfer Switch ATS Controller 230/400VAC 50Hz
Overview：

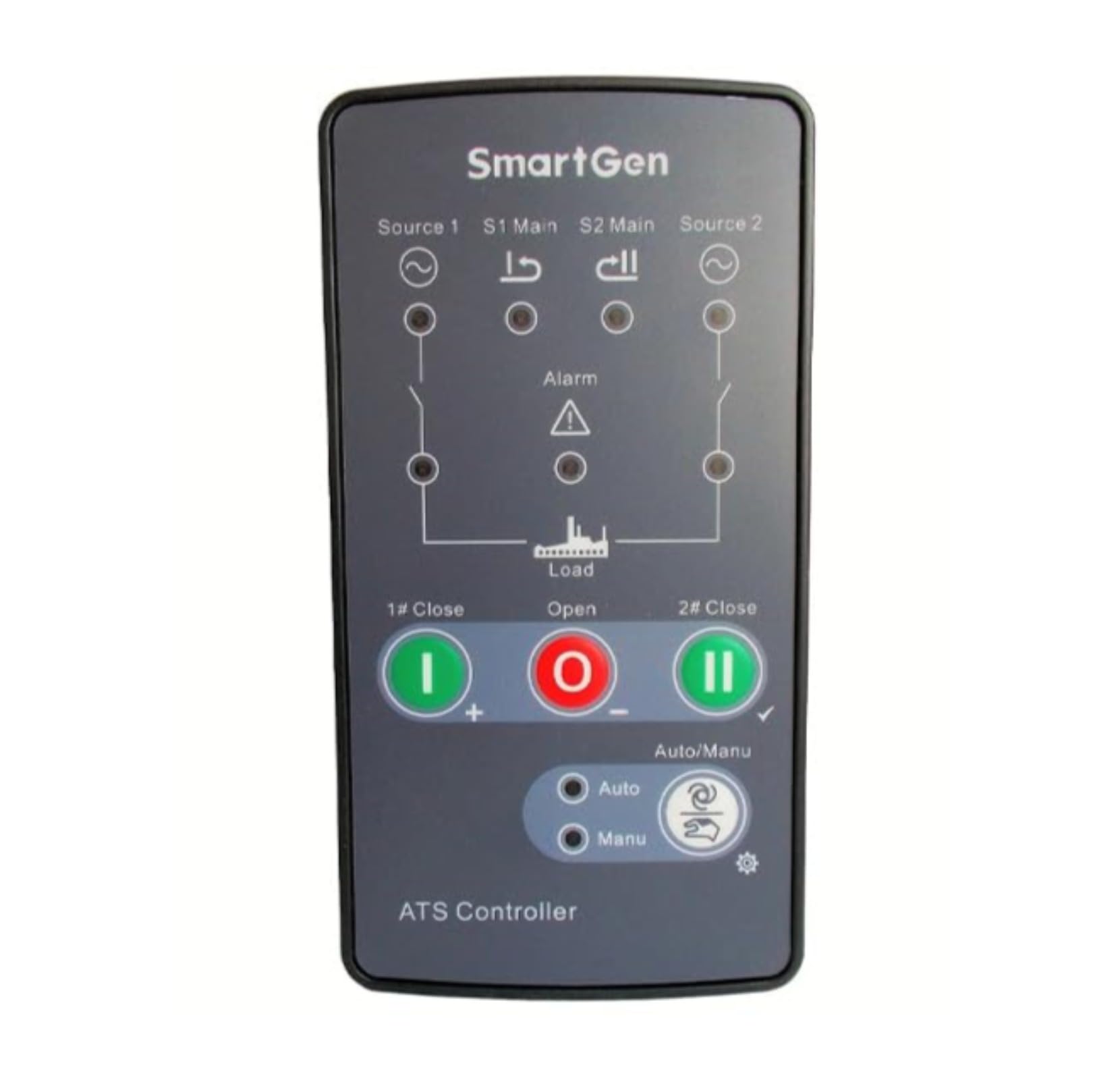

HAT160 ATS Controller is suitable for CB ATS of single motor with different capacities. It can accurately detect 2-way voltages of 3-phase 4-wire/single-phase 2-wire and make accurate judgment for occurred voltage abnormal (such as, over voltage, under voltage, over frequency, under frequency and loss of phase), then control ATS transfer after delay. When ATS switch gets abnormal, controller can detect close/open failure and indicates alarm on the front panel to ensure the correct action of ATS. If I# power gets abnormal, controller can send signal to start genset. Controller can realize remote communication, remote control and parameter configuration functions via LINK port communication.
Overview：
HAT160 ATS Controller is suitable for CB ATS of single motor with different capacities. It can accurately detect 2-way voltages of 3-phase 4-wire/single-phase 2-wire and make accurate judgment for occurred voltage abnormal (such as, over voltage, under voltage, over frequency, under frequency and loss of phase), then control ATS transfer after delay. When ATS switch gets abnormal, controller can detect close/open failure and indicates alarm on the front panel to ensure the correct action of ATS. If I# power gets abnormal, controller can send signal to start genset. Controller can realize remote communication, remote control and parameter configuration functions via LINK port communication.
One Motor Operation
Working PowerRange : AC(170-277)V
Overall Dimension : 86.9*158*119.5
Installation Dimension : 73.5*144
Working Temperature : (-25~+70)℃
weight : 0.6kg

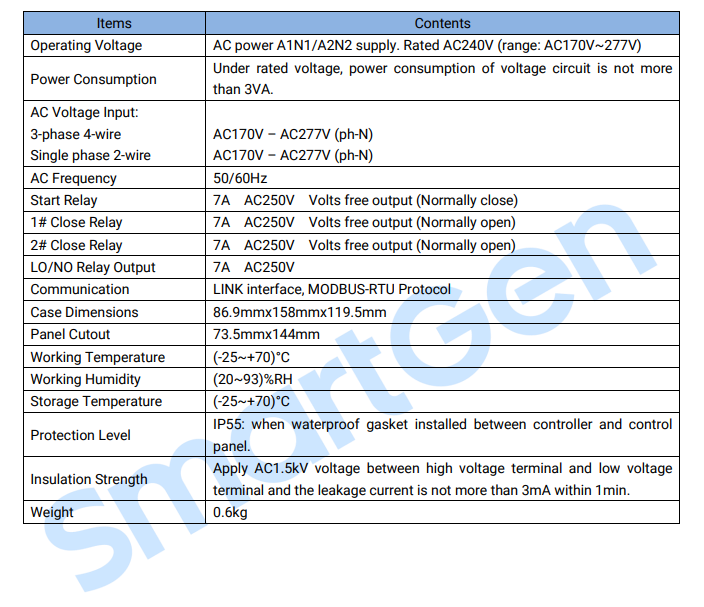

Technical Parameters：
