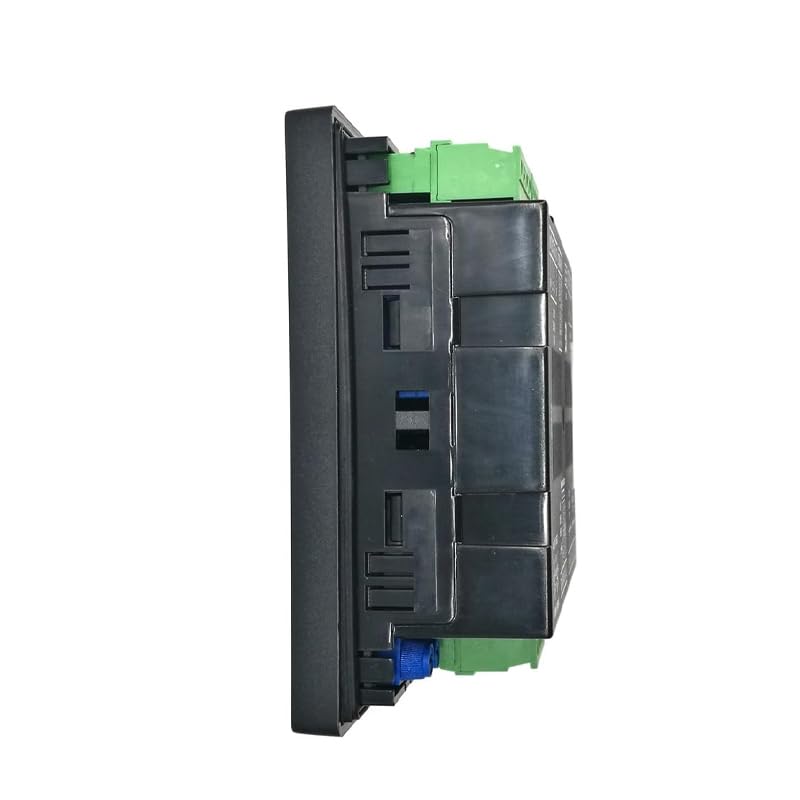

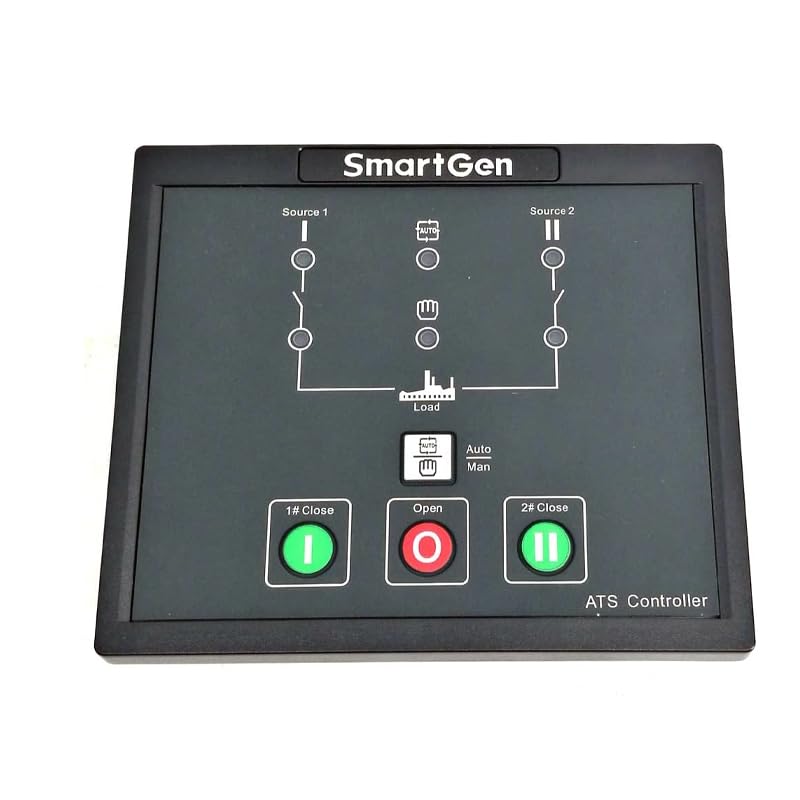

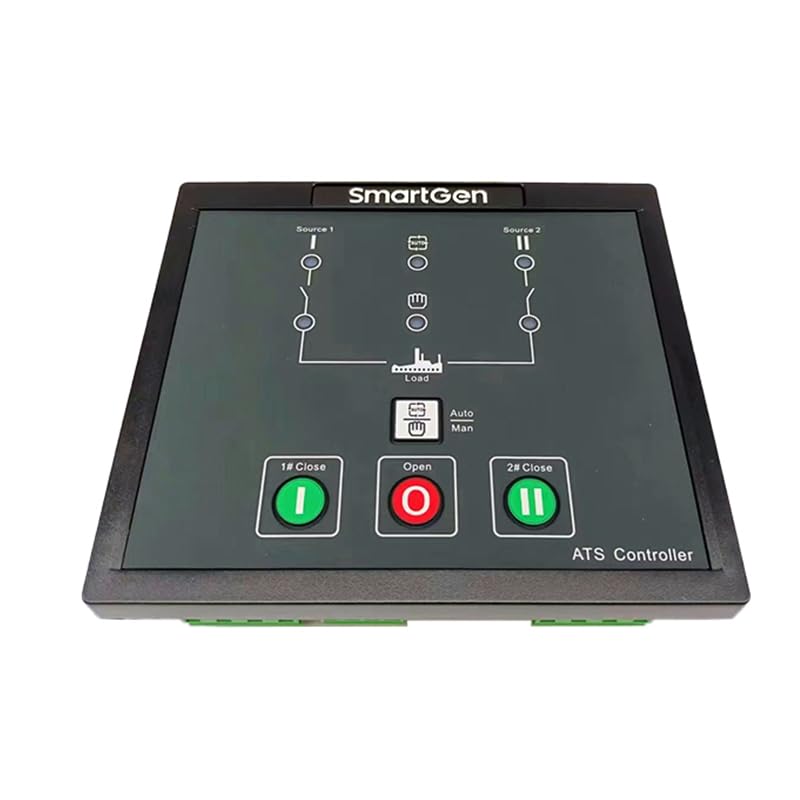

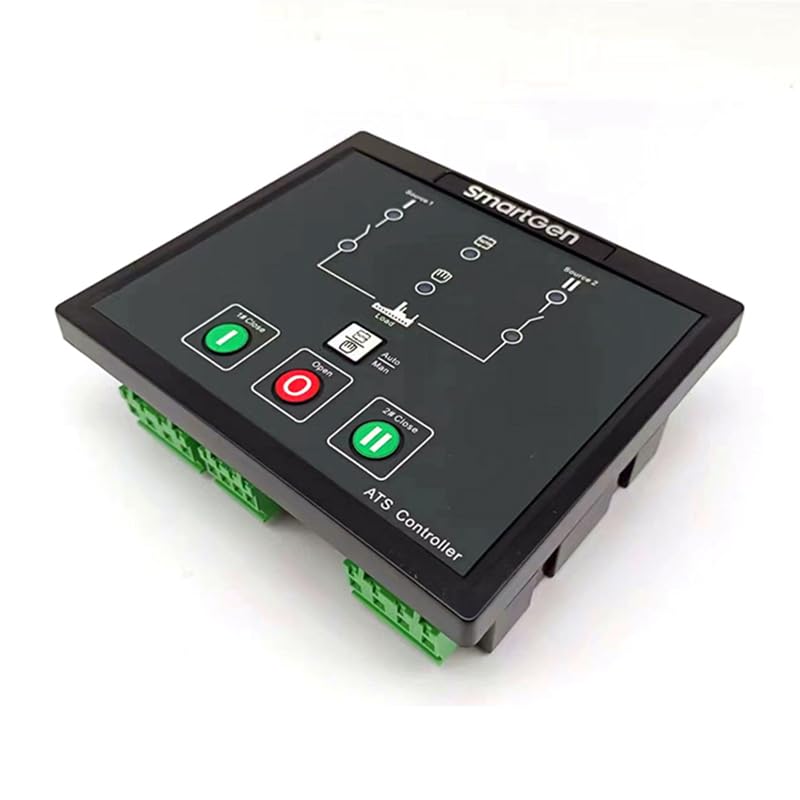

Original Smartgen HAT530N ATS Controller Automatic Transfer Switch Control Panel
Product Overview:
The powerful Microprocessor contained within the HAT530N ATS controller allows for precision voltage (2-way 3-phase/single phase) measuring and make accurate judgment on abnormal voltage (power lost, over/under voltage, over/under frequency, loss of phase, phase sequence wrong) and control ATS to transfer after the delay has expired. This controller is suitable for NO Breaking ATS and ONE Breaking ATS. When #1 power is abnormal, the controller will send signal to start genset after the "#1 abnormal delay" has expired. "Three remote" (remote control, remote measurement and remote communication)
Product Overview:
The powerful Microprocessor contained within the HAT530N ATS controller allows for precision voltage (2-way 3-phase/single phase) measuring and make accurate judgment on abnormal voltage (power lost, over/under voltage, over/under frequency, loss of phase, phase sequence wrong) and control ATS to transfer after the delay has expired. This controller is suitable for NO Breaking ATS and ONE Breaking ATS. When #1 power is abnormal, the controller will send signal to start genset after the "#1 abnormal delay" has expired. "Three remote" (remote control, remote measurement and remote communication)
Key Technical Specifications
- · Brand: SmartGen
- · Model: HAT530N
- · Power Supply: DC 8~35V wide battery (12V/24V universal, reverse polarity protection)
- · Display: Small monochrome LCD, real-time voltage & frequency display
- · Front Protection: IP65 with silicone sealing gasket

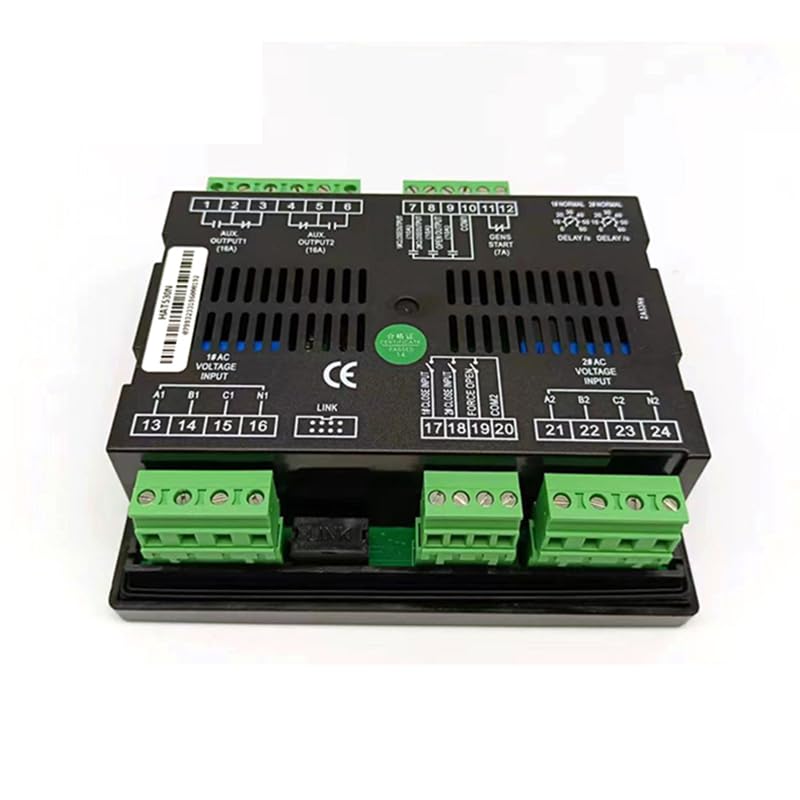

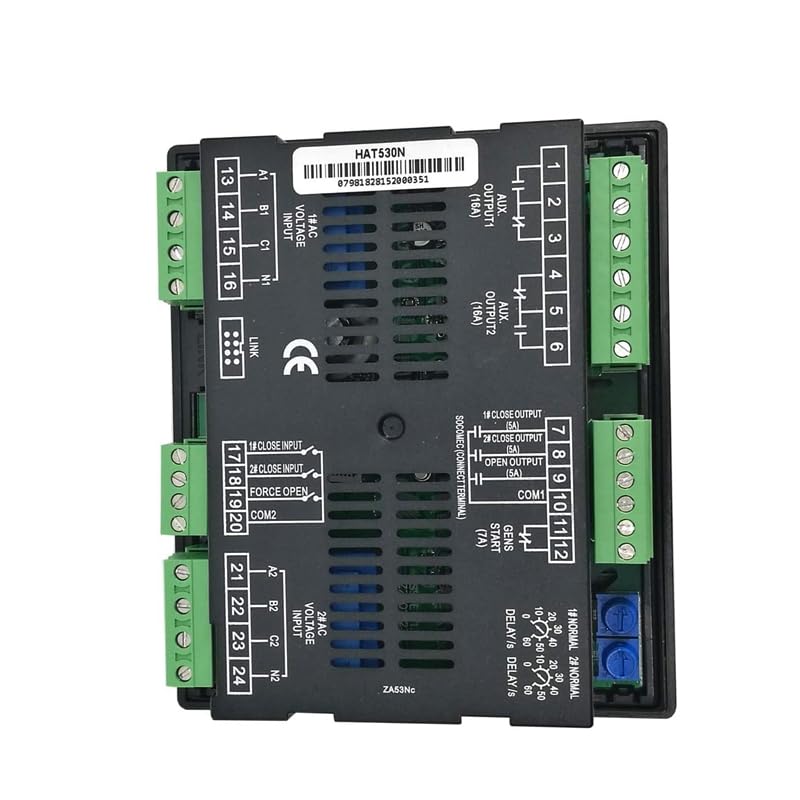

- · AC Sampling: Dual 1P2W / 3P3W / 3P4W, 50/60Hz auto adapt, isolated N wire design
- · Digital Input: 3 programmable DI (ATS position feedback, fire forced trip)
- · Relay Output: 3 passive AC250V relays (2×16A ATS closing, 1×7A genset start)
- · Communication: Only LINK debug port (SG72A adapter required for PC parameter setting)
- · Adjustable Delay: Fault delay 0~60s, genset start/stop delay 0~3600s
- · Core Functions: Auto transfer between mains & genset, fire mandatory neutral trip, auto/manual mode, auto restore/non-restore logic
- · Dimension: 139×120×50mm, Panel Cutout: 130×111mm
- · Operating Temp: -25℃ ~ +70℃
- · Certifications: CE, EMC, RoHS
- · Warranty: 12 months genuine factory warranty
