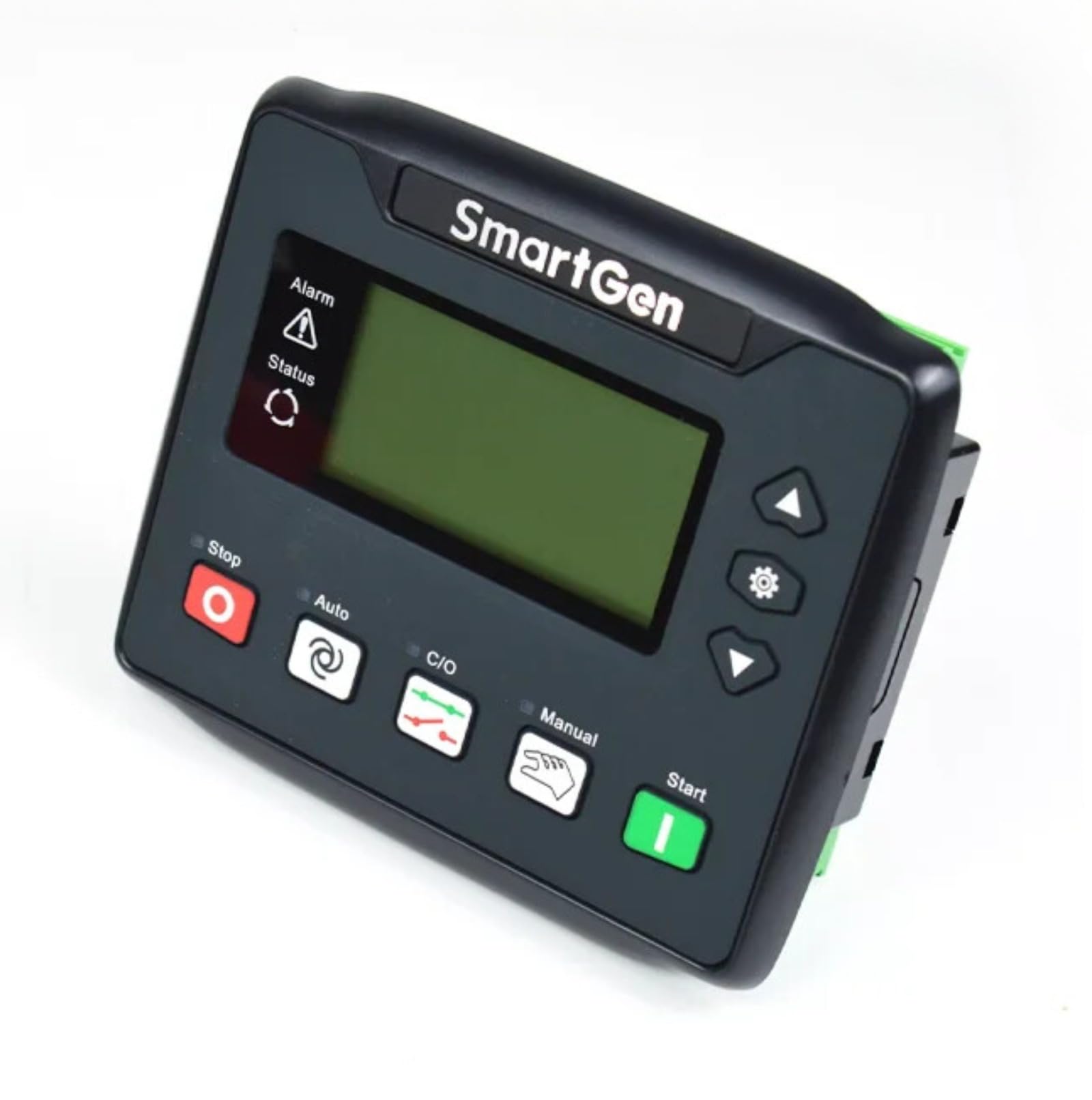

Original Smartgen HGM420N Genset Generator Controller Auto Engine Control Module
Original Smartgen HGM420N Genset Generator Controller Auto Engine Control Module
Regular price
$198.00 USD
Regular price
$286.36 USD
Sale price
$198.00 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability

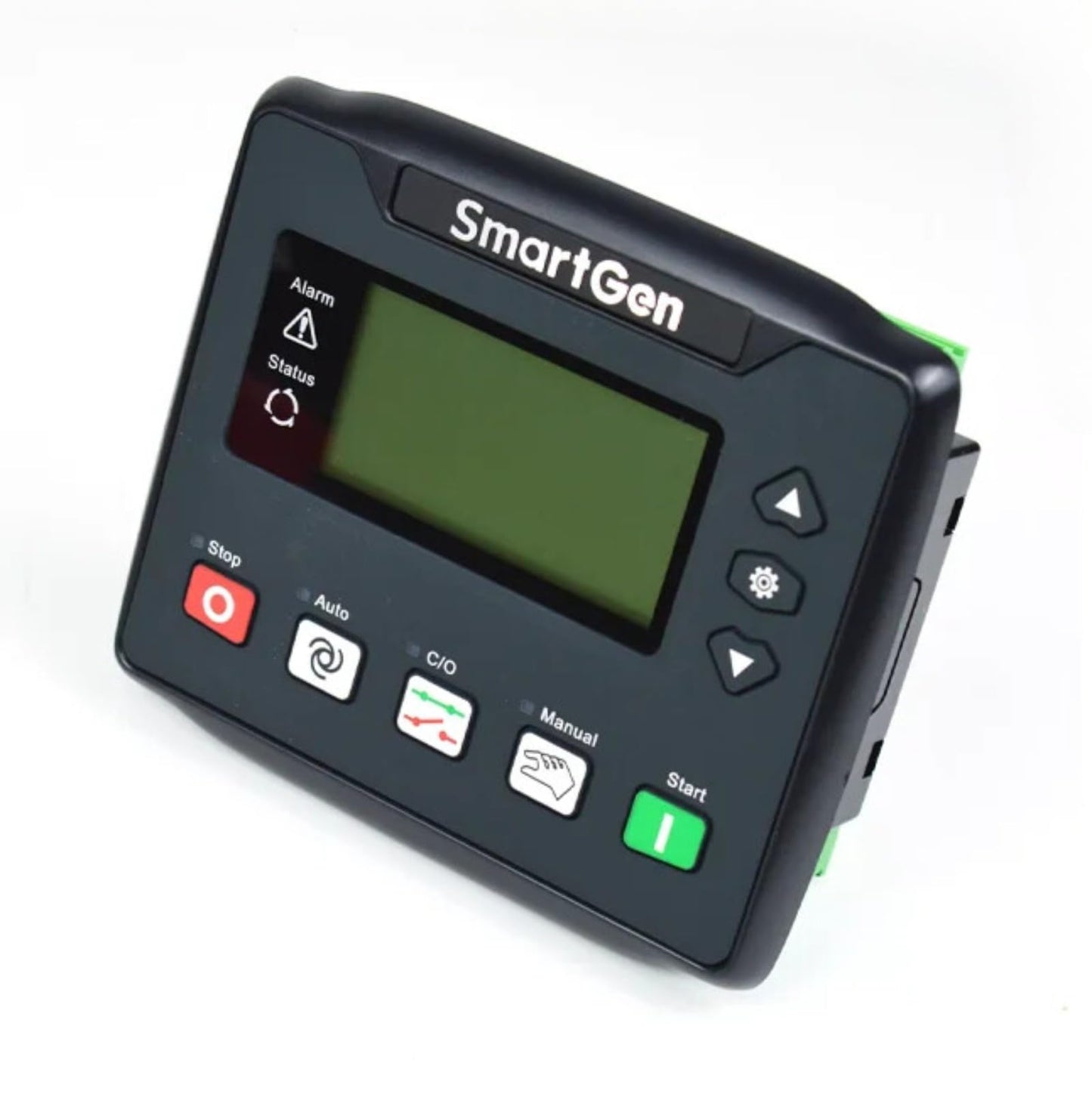

Original Smartgen HGM420 Genset Generator Controller Auto Engine Control Module
HGM420N: based on HGM410N, AMF (Auto Mains Failure) and Mains/Gens automatic transfer control functions are added, which is especially suitable for single unit automation system composed by one mains and one gens.
Main characteristics are as below:

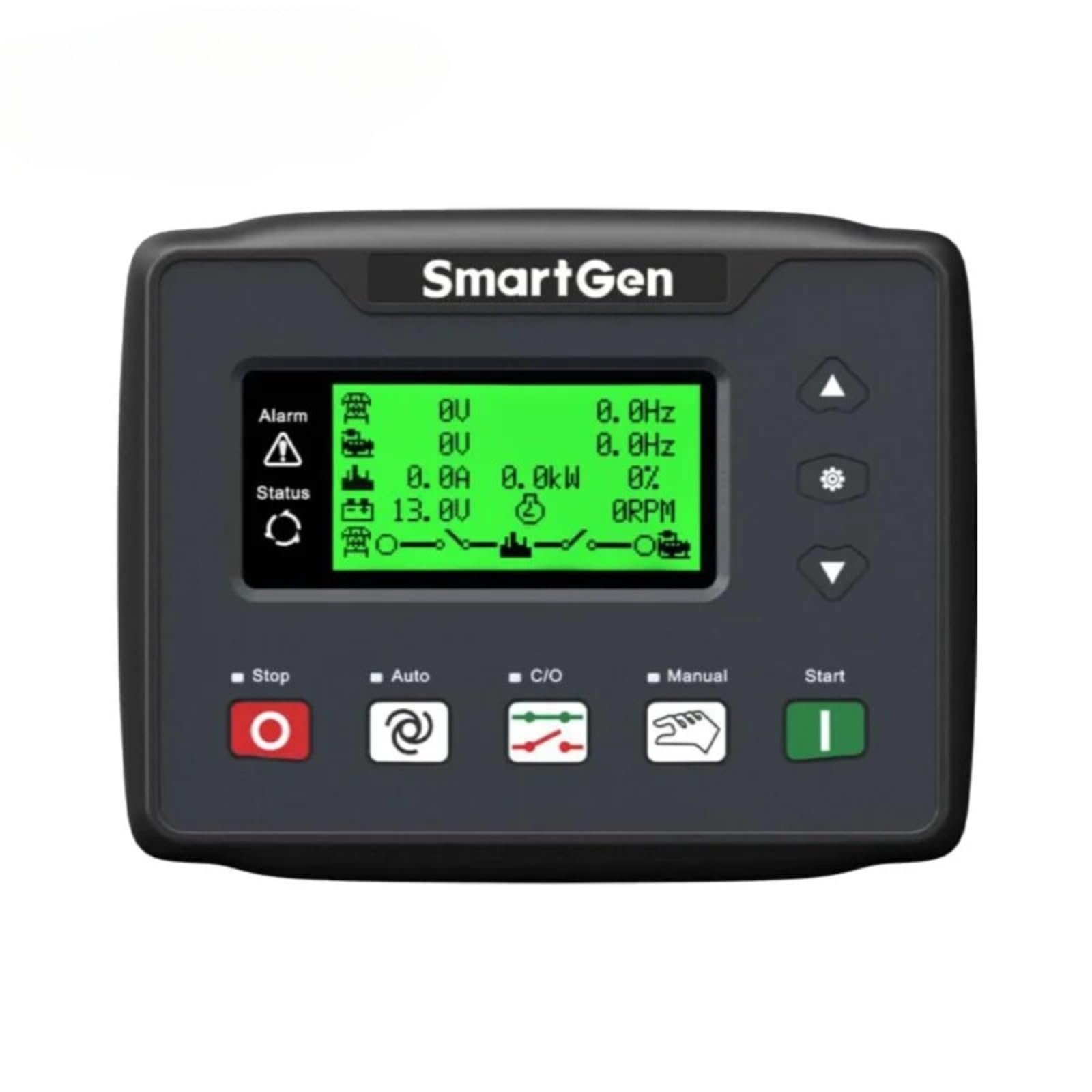

· 132x64 LCD with backlight, selectable language interface (Chinese, English, Spanish, Turkish, Russian and French), push-button operation;
· Improved LCD wear-resistance and scratch resistance due to hard screen acrylic;
· Silicon panel and pushbuttons for better operation in high/low temperature environment;
· Suitable for 3-phase 4-wire, 3-phase 3-wire, single phase 2-wire, and 2-phase 3-wire systems with voltage 120/240V and frequency 50/60Hz;
· Collects and shows 3-phase voltage, 3-phase current, power parameter and frequency of generator or mains;
HGM420N: based on HGM410N, AMF (Auto Mains Failure) and Mains/Gens automatic transfer control functions are added, which is especially suitable for single unit automation system composed by one mains and one gens.
Product Specifications：
- · Brand: SmartGen
- · Model: HGM420N
- · Power Supply: DC 8~35V wide battery (12V/24V universal, reverse polarity protection)
- · Display: 132×64 Backlight LCD, multi-language optional
- · Front Protection: IP65 with silicone sealing gasket
- · AC Sampling: Dual mains & genset 1P2W/3P3W/3P4W, 50/60Hz auto adapt, CT 5A current sampling
- · Analog Input: 4 channels (oil pressure, coolant temp, fuel level, D+ charging voltage)
- · Digital Input: 4 programmable DI terminals (emergency stop, remote start, engine alarms)
- · Relay Output: 6 passive relays (5A DC28V / 5A AC250V)
- · Communication: Only front USB debug port (no RS485 / CAN bus)
- · Fault Storage: 99 timestamped fault event logs with RTC clock
- · Core Functions: AMF mains loss auto start/stop, full engine protection, scheduled genset test, maintenance reminder
- · Dimension: 126×109×44mm, Panel Cutout: 110×90mm
- · Operating Temp: -25℃ ~ +70℃
- · Certifications: CE, EMC
- · Warranty: 12 months genuine factory warranty
Main characteristics are as below:
· 132x64 LCD with backlight, selectable language interface (Chinese, English, Spanish, Turkish, Russian and French), push-button operation;
· Improved LCD wear-resistance and scratch resistance due to hard screen acrylic;
· Silicon panel and pushbuttons for better operation in high/low temperature environment;
· Suitable for 3-phase 4-wire, 3-phase 3-wire, single phase 2-wire, and 2-phase 3-wire systems with voltage 120/240V and frequency 50/60Hz;
· Collects and shows 3-phase voltage, 3-phase current, power parameter and frequency of generator or mains;
