Origional DC30T Mebay Generator Set Controller Small Diesel Genset Control Module

Origional DC30T Mebay Generator Set Controller Small Diesel Genset Control Module

$88.00 USD
$0.00 USD $88.00 USD
Sale Sold out
Shipping calculated at checkout.
Origional Genuine Mebay DC30T Ultra-Compact Single Genset Controller 1.8" LCD Front USB Debug DC8-36V Auto Start Stop

Wide Application Range

Portable small diesel/gasoline generator control box, agricultural irrigation gas genset, construction engineering temporary mobile power supply, off-grid independent power unit, small engine OEM matching control system, generator factory low-power genset complete machine assembly, replacement of MGC120/HGM4010/DSE4610 compact single-unit controllers, all small-power off-grid genset projects needing automatic start-stop control and local USB debugging without mains ATS and remote monitoring demand.

Product Specifications

  • Brand: Mebay (Yokden)
  • Model: DC30T
  • Core Function: Ultra-compact off-grid single-unit genset automatic controller, front USB local debug (No RS485 remote Modbus, No CAN J1939 ECU bus, No AMF mains ATS)
  • Working Power Supply: DC8V ~ 36V universal 12V/24V genset battery wide voltage
  • Sampling Standard: Single-phase 1P2W AC sampling, match 50mA miniature current transformer
  • Communication Interfaces: Front USB debug port only (No RS485, No CAN bus)

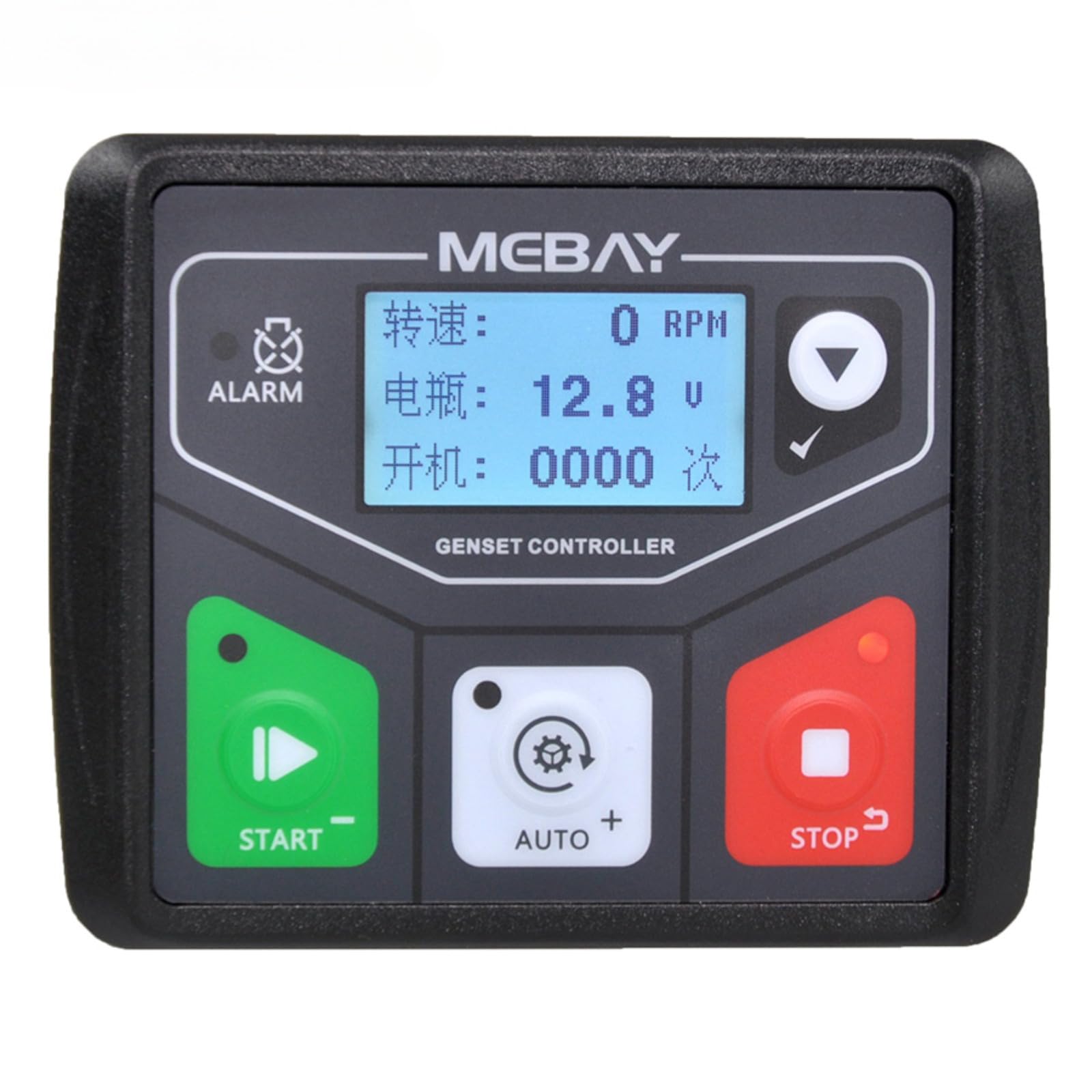

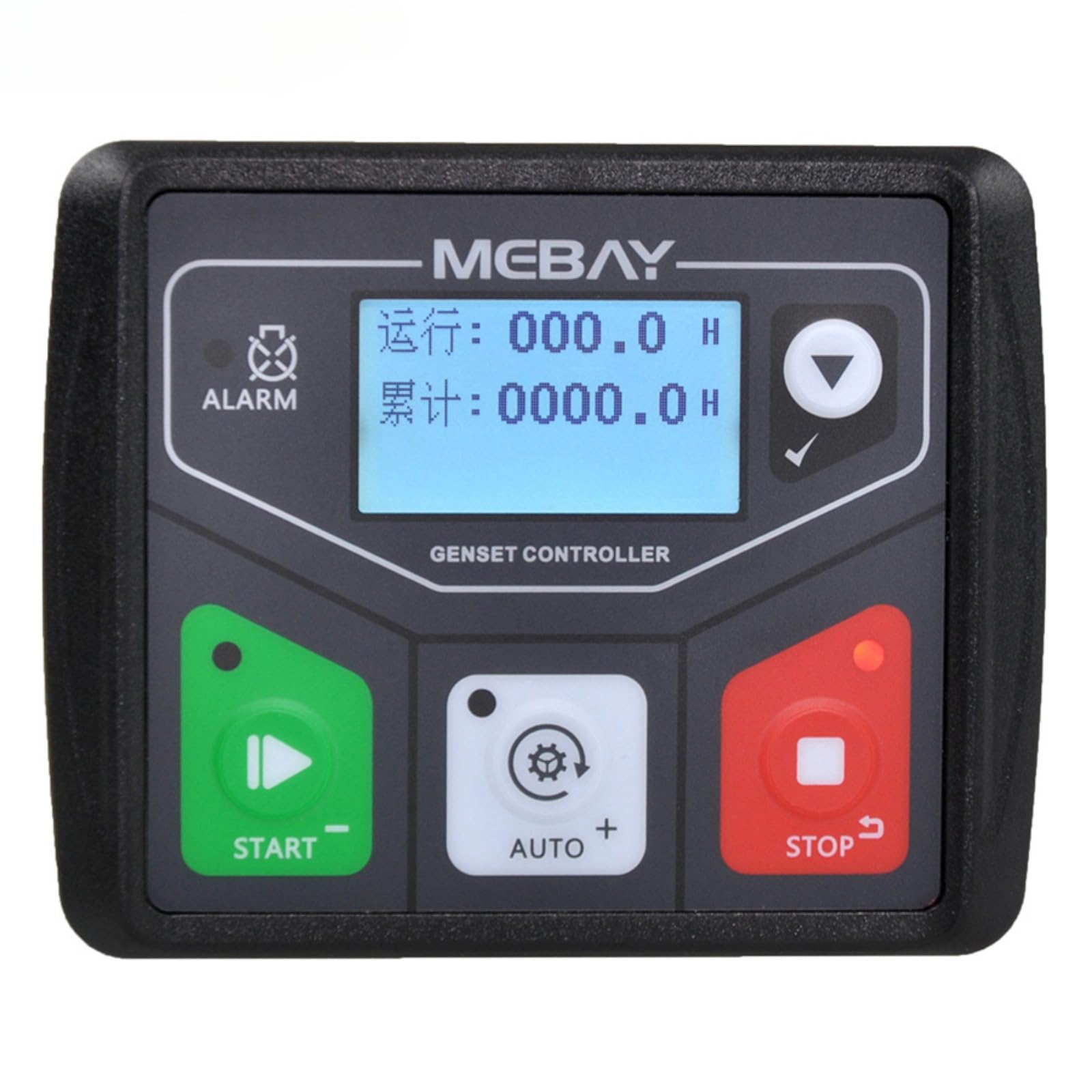

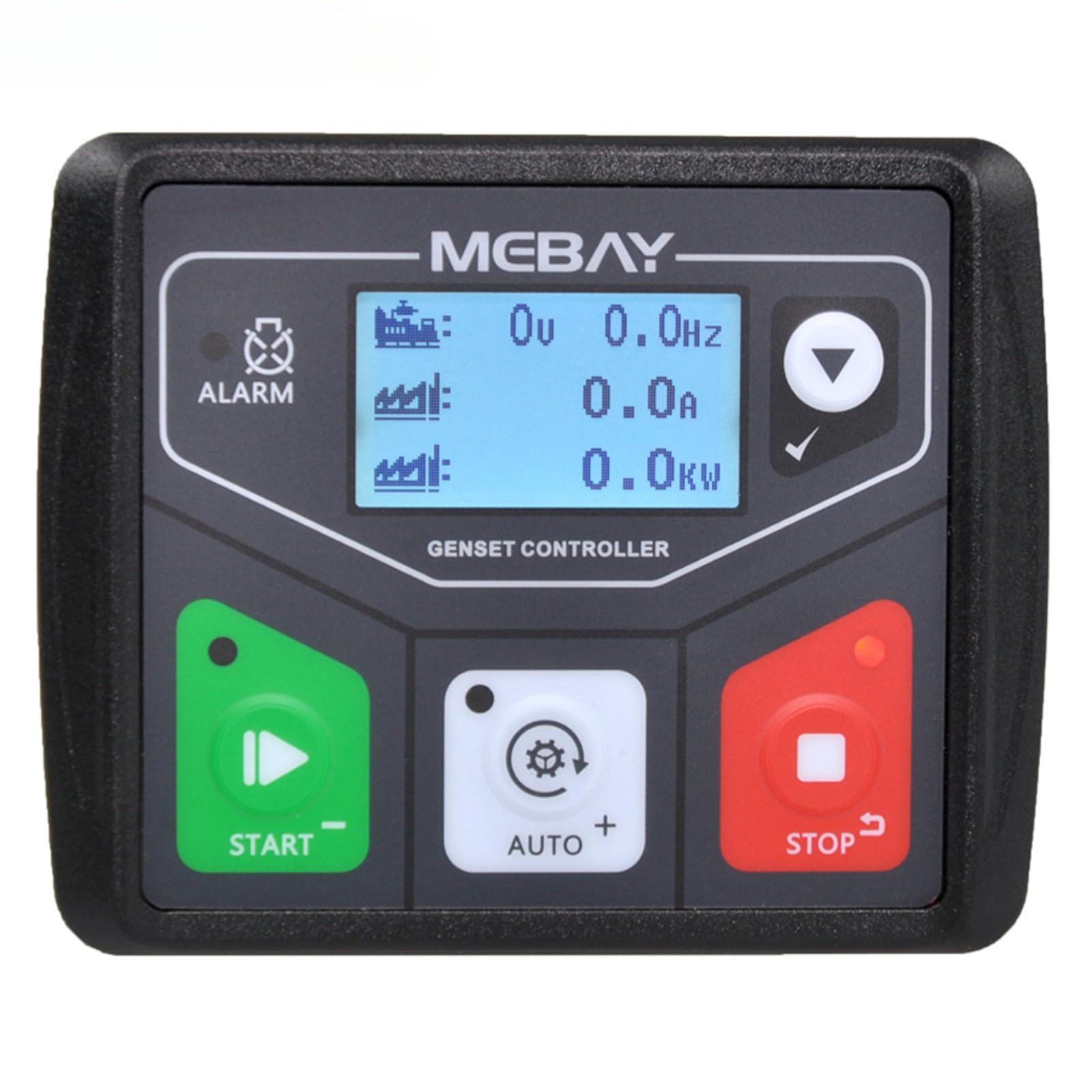

  • Display: 1.8-inch 128×64 backlight LCD screen, Chinese/English switchable
  • Panel Cutout Size: 78 × 66 mm, overall dimension 130 × 82 × 38 mm
  • Front Panel Protection Grade: IP54 dustproof, waterproof, oil-proof industrial panel
  • Operating Temperature: -25℃ ~ +65℃
  • Warranty: 12 months genuine factory warranty
  • Certifications: CE, ISO9001, EMC IEC61000-4

Common Equipment Failures Solved

  • LCD no display after power on: Check battery voltage within DC8~36V working range, confirm positive and negative wiring correct
  • PC cannot connect via USB: Replace standard data cable, restart controller and exit fault lock state
  • Cannot auto start in AUTO mode: Check remote start signal wiring, recalibrate startup delay parameters via USB software
  • Frequent false alarm during startup: Adjust startup anti-shock delay time to filter transient abnormal signals
  • Need remote APP cloud monitoring: Upgrade to DC30TR model with RS485 Modbus + DTU module
  • Need mains automatic ATS switching function: Replace with DC32D mini AMF controller
  • Need EFI engine ECU data reading: Upgrade to DC30C CAN bus controller
  • Need power & kWh statistics: Match GV59 basic multi-function power meter
  • Old DC30D non-USB controller upgrade: Direct replacement DC30T, same installation size and wiring compatibility
