Pressure Switch For MERCEDES Actros Mp2 / Mp3 Zetros 96-05 0045455414
Pressure Switch For MERCEDES Actros Mp2 / Mp3 Zetros 96-05 0045455414
Regular price
$38.80 USD
Regular price
$0.00 USD
Sale price
$38.80 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability

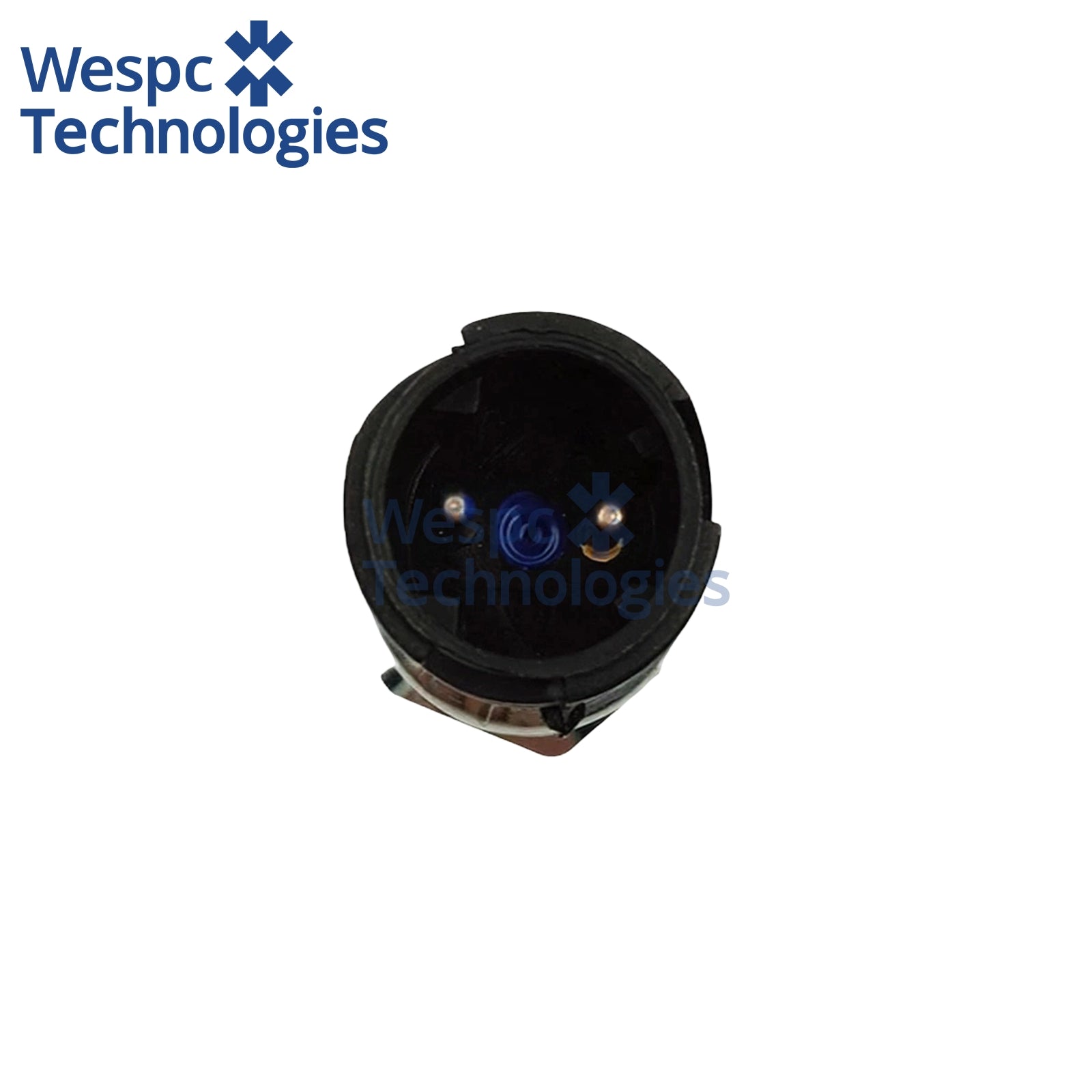

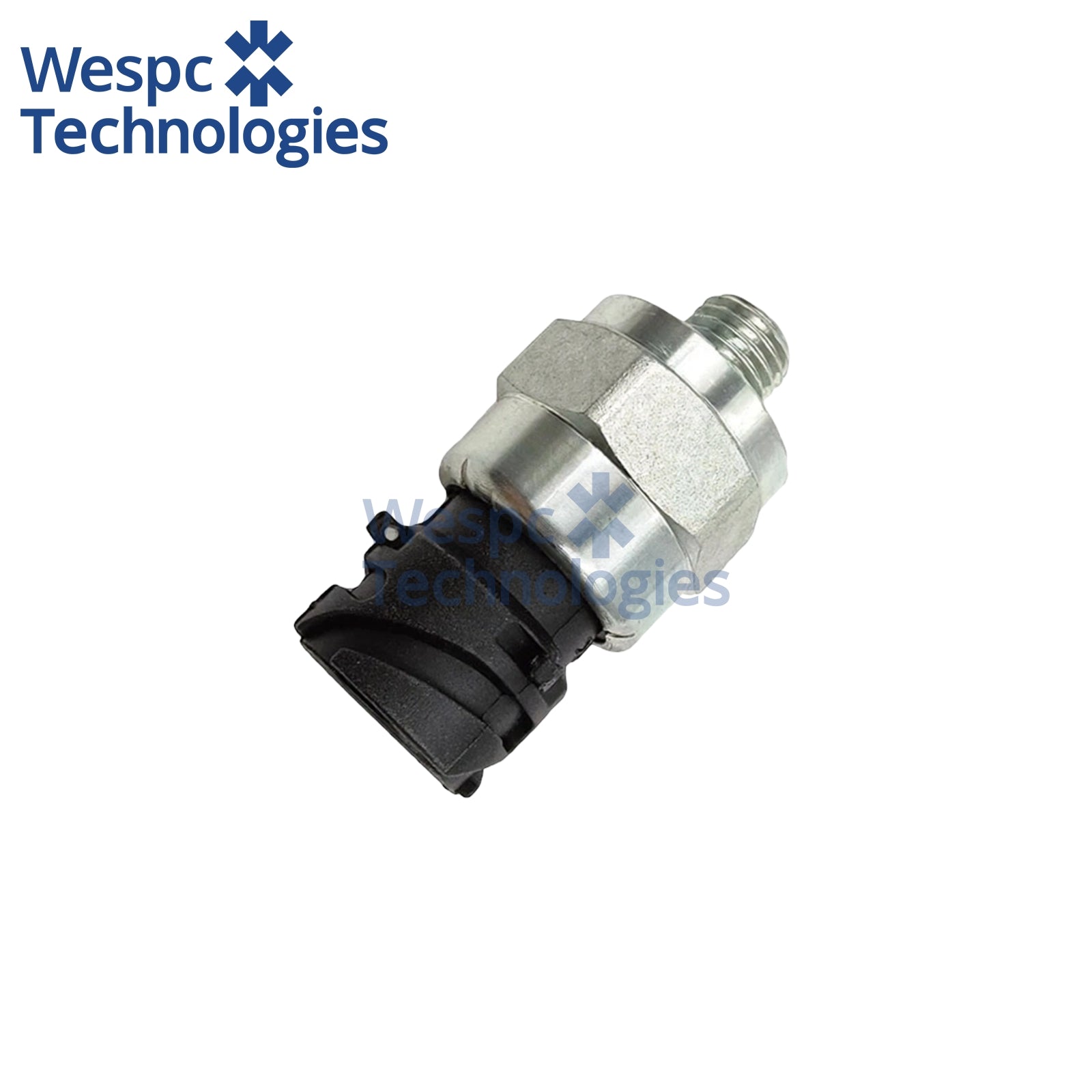

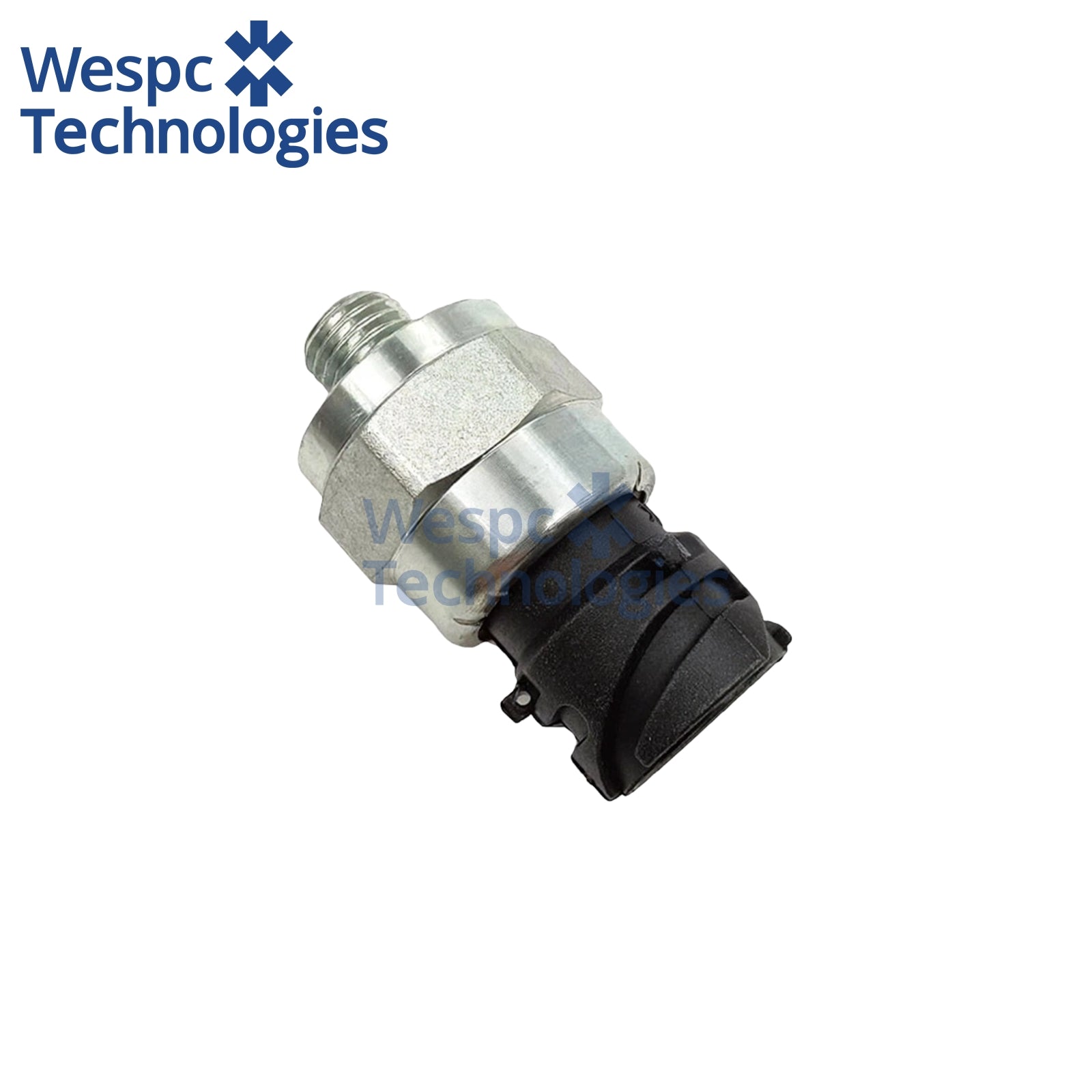

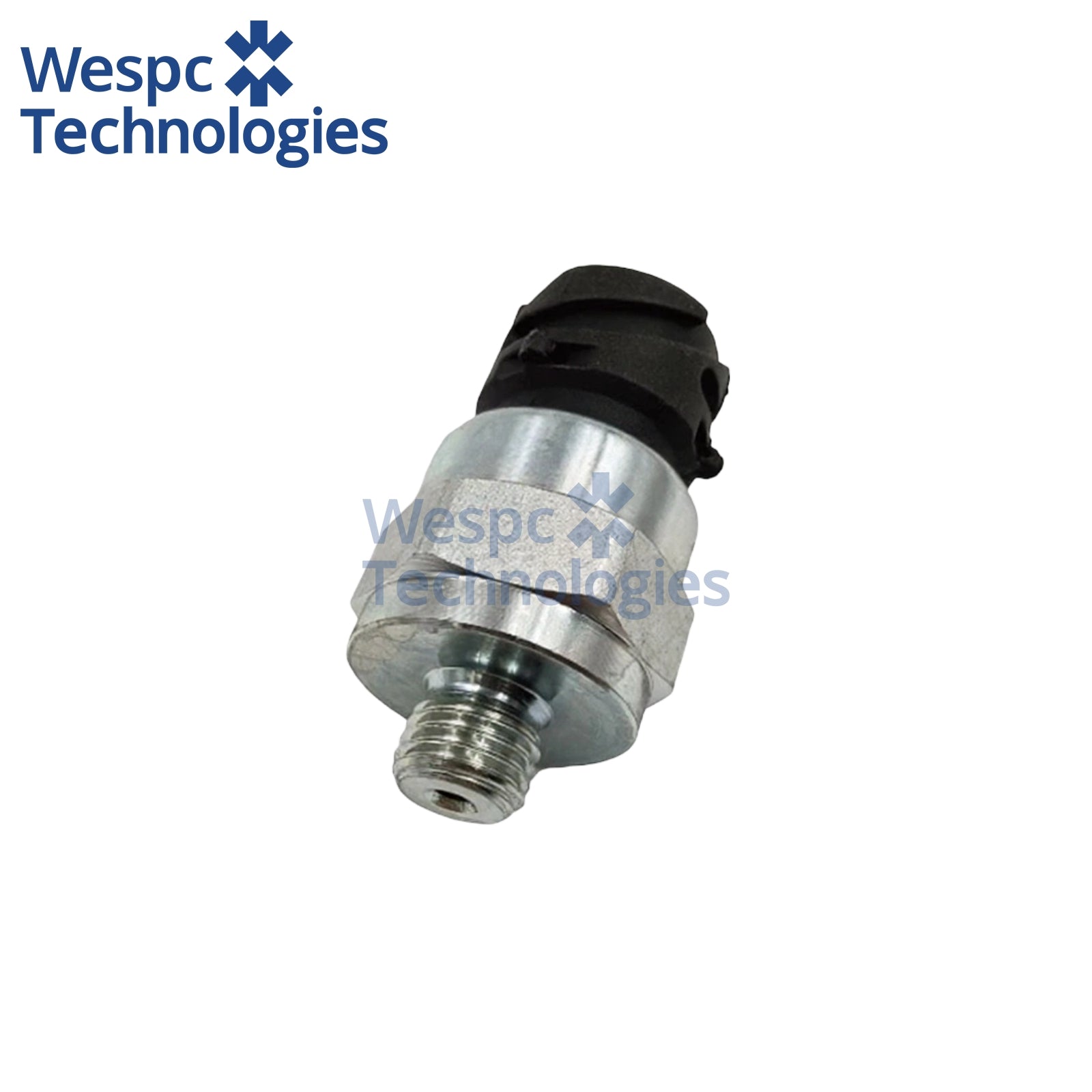

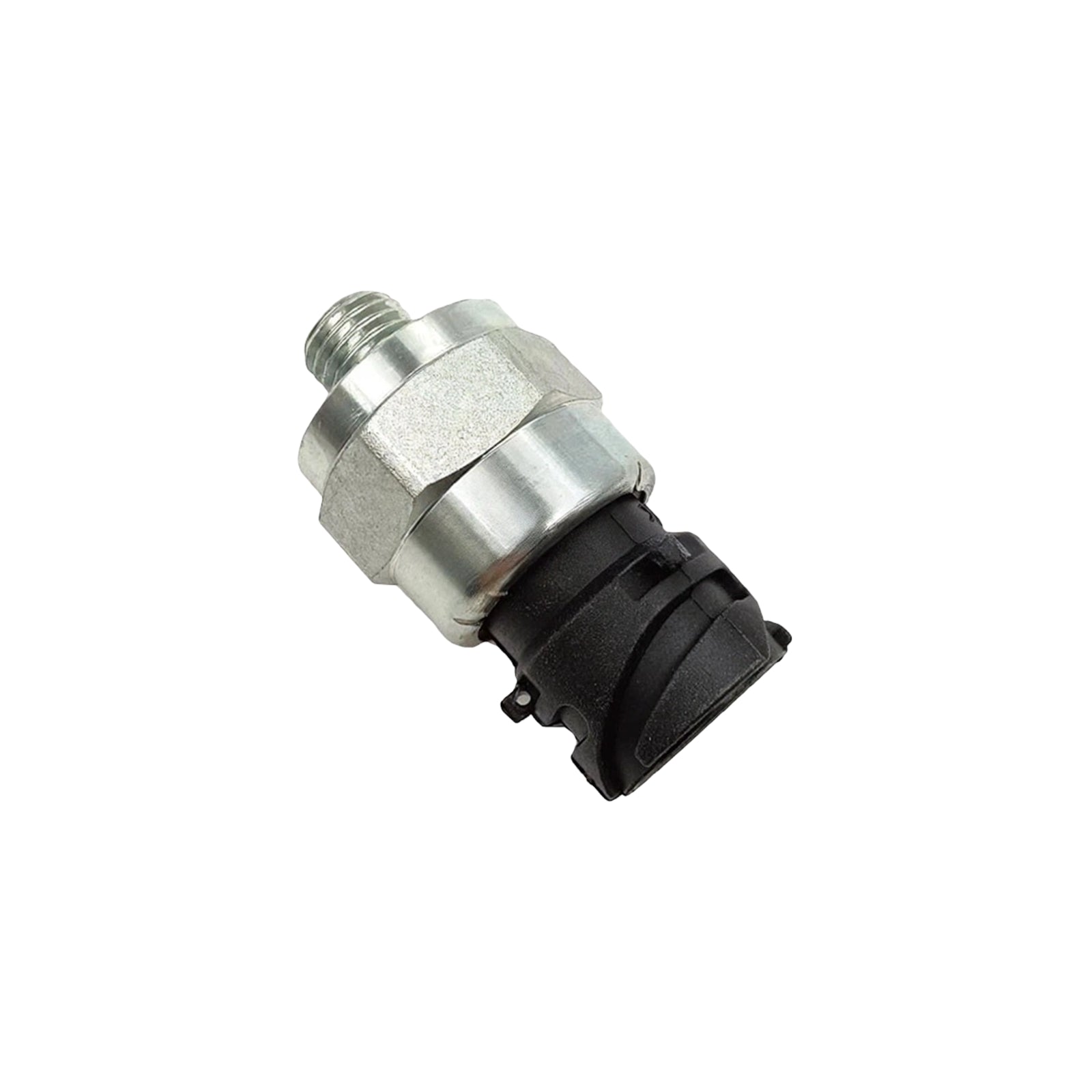

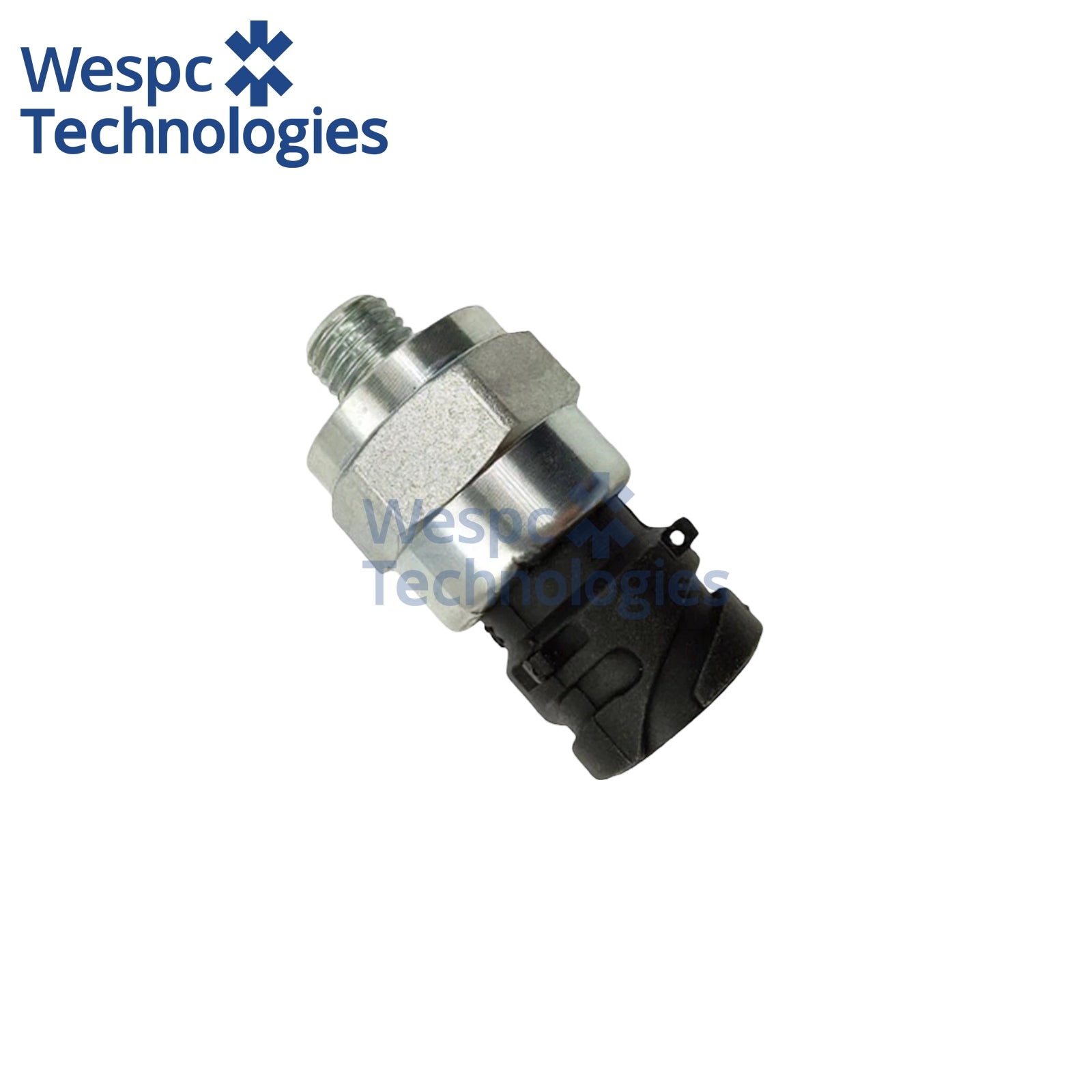

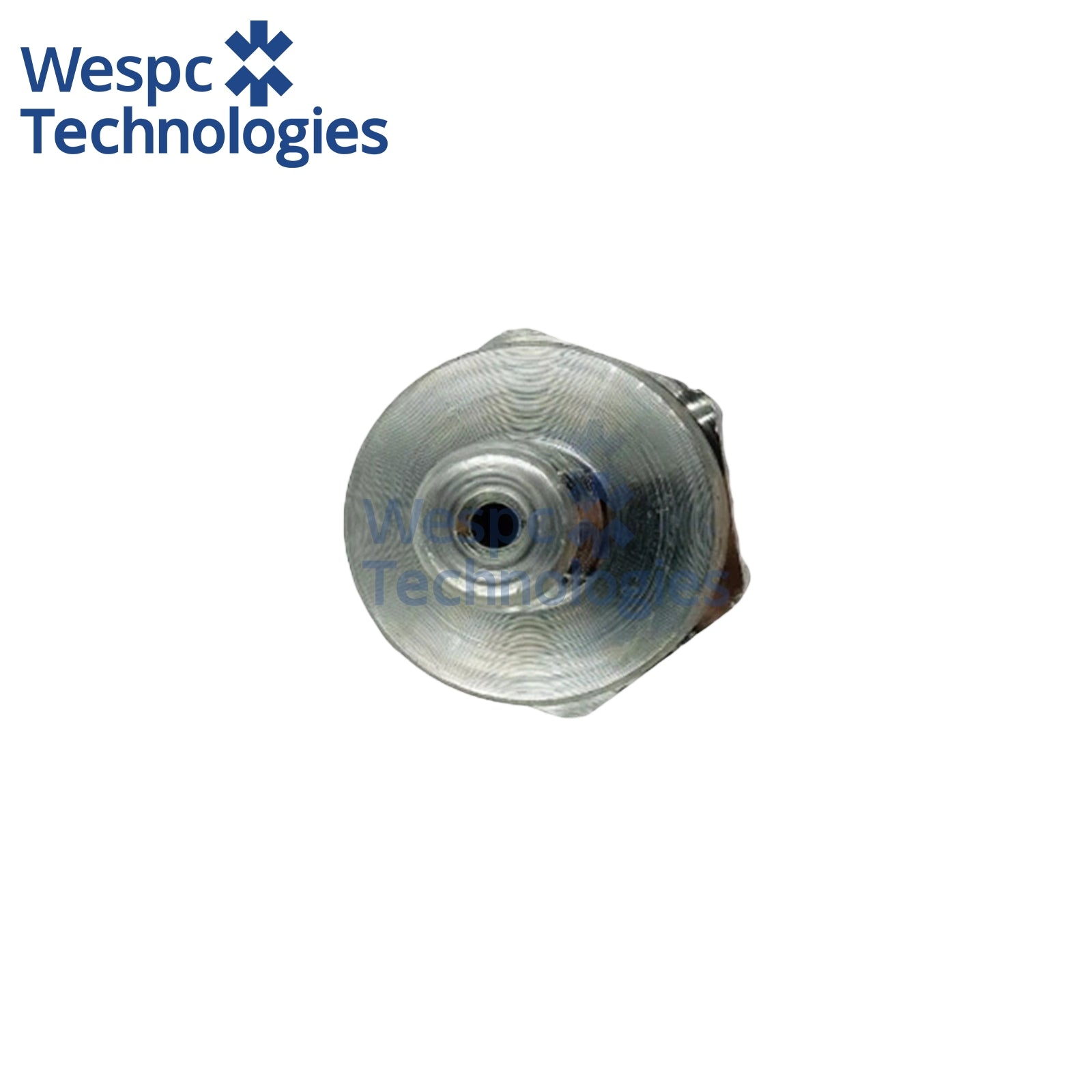

Pressure Switch For MERCEDES Actros Mp2 / Mp3 Zetros 96-05 0045455414
Type: Air-pressure (pneumatic) switch – normally-open / normally-closed change-over contact
Function: Monitors compressed-air reservoir pressure; closes at ≈ 6.3 bar, opens at ≈ 5.5 bar differential, sending 24 V signal to ECU to trigger low-pressure warning and/or compressor cut-in .
Port & mounting: 3/8"-24 UNF male thread, 19 mm hex – screw-in style, no separate bracket required.
Electrical: 4-pin rectangular Deutsch DT04-4P connector, 24 V DC, 5 A resistive load; contacts silver-plated for <5 mΩ after 50 000 cycles .
Media / temperature: Dry compressed air, –40 °C to +120 °C (ambient), proof pressure 16 bar, burst 25 bar.
Materials: Zinc-nickel plated steel body, NBR O-ring (included), PA66 connector housing – 720 h salt-spray protection.
Features: Direct-fit, no calibration needed; integrated hysteresis spring gives ±0.2 bar repeatability; connector seal IP67.
Items included: Switch only – harness, clip, dust cap not supplied.
Part-number cross-reference: 0045455414, A0045455414, 0065451114, 0045455514, FEBI 176660, DT 4.62065, PETERS 080-007-00, LEMFÖRDER 2524801.
Warranty: 12 months / 100 000 km.
Applications: Mercedes-Benz Actros MP2 (1996-2002), Actros MP3 (2003-2011), Zetros 1833/2633, Atego 2, Axor 2, Touro O 500, Unimog U300-U500 – primary / secondary air reservoir and park-brake circuit.
