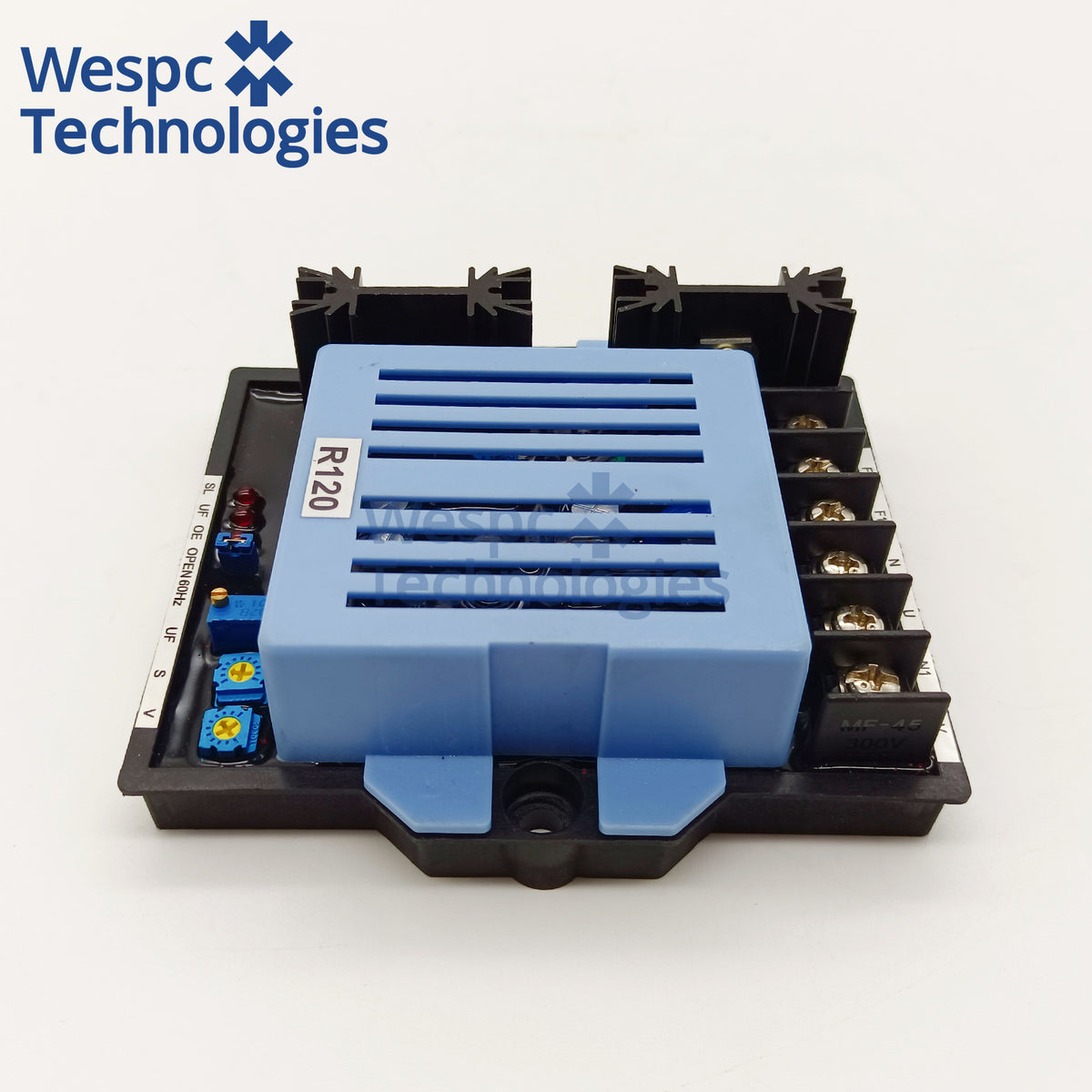

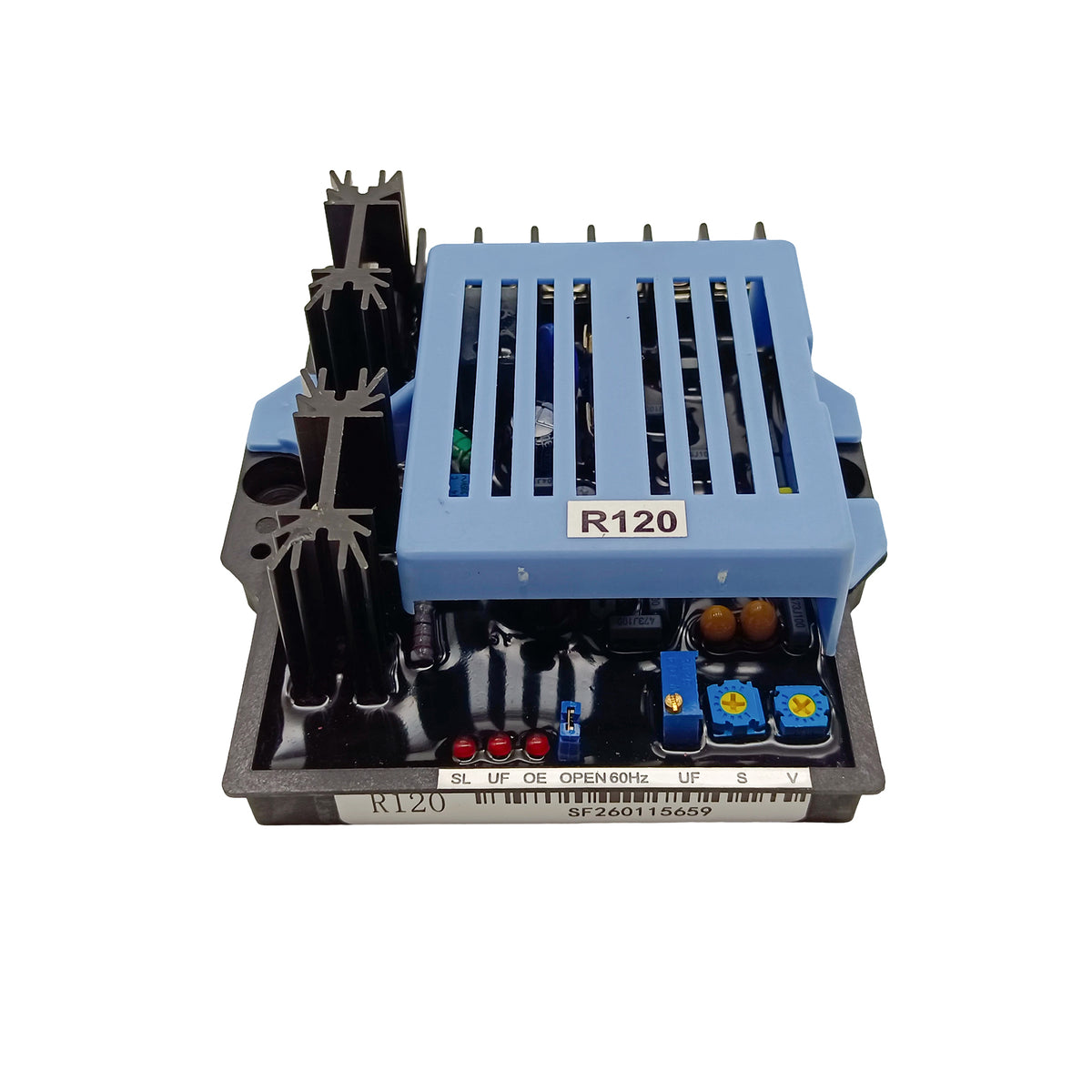

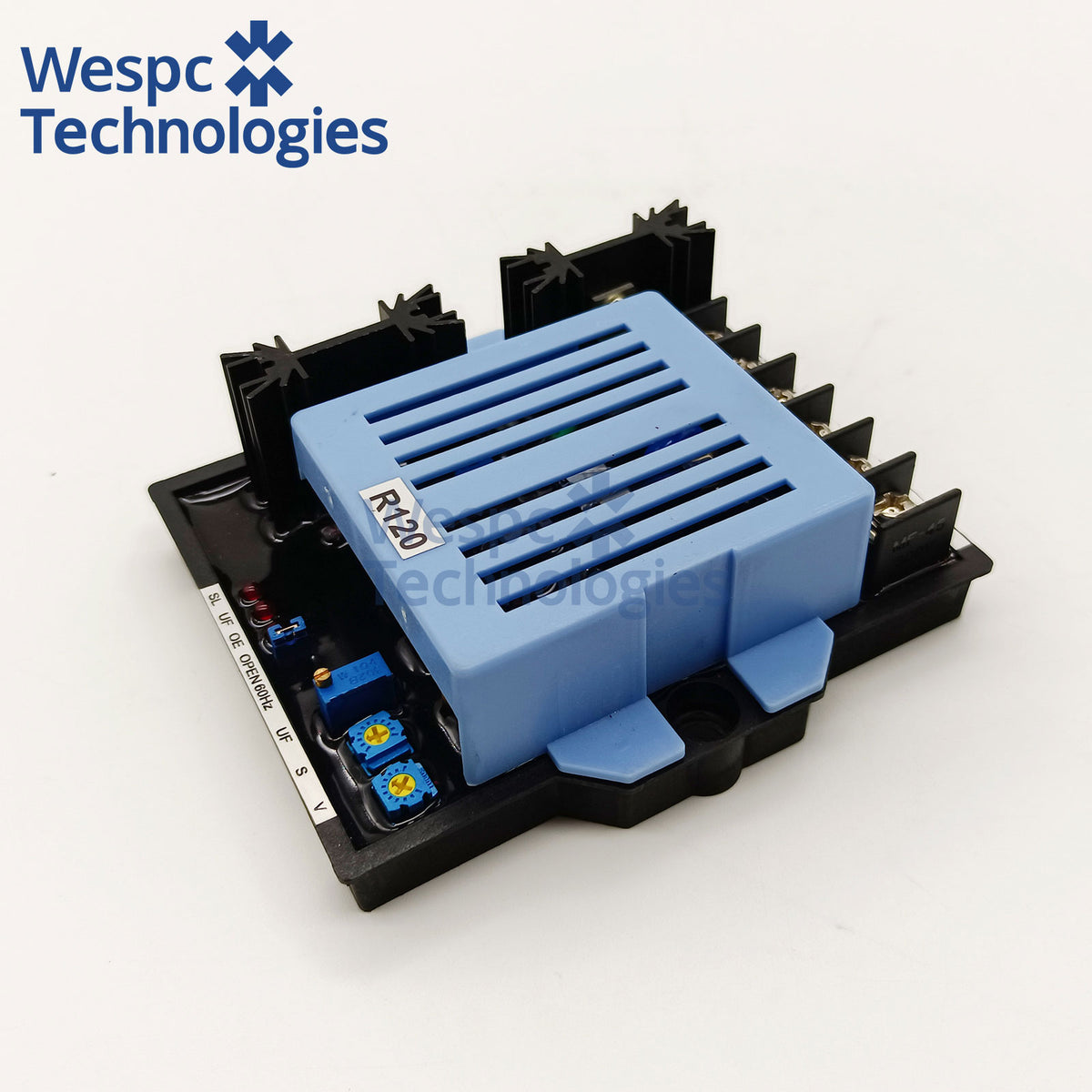

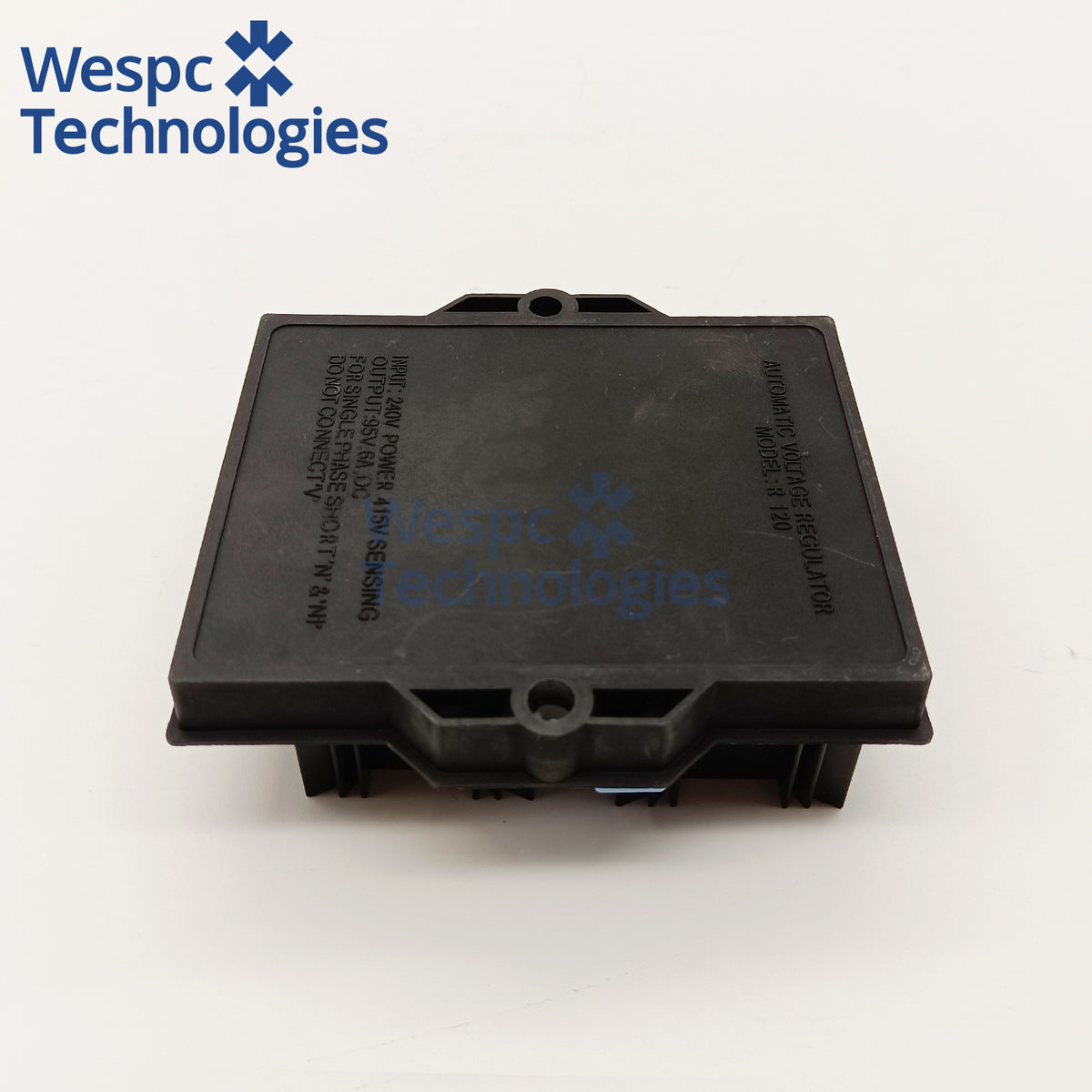

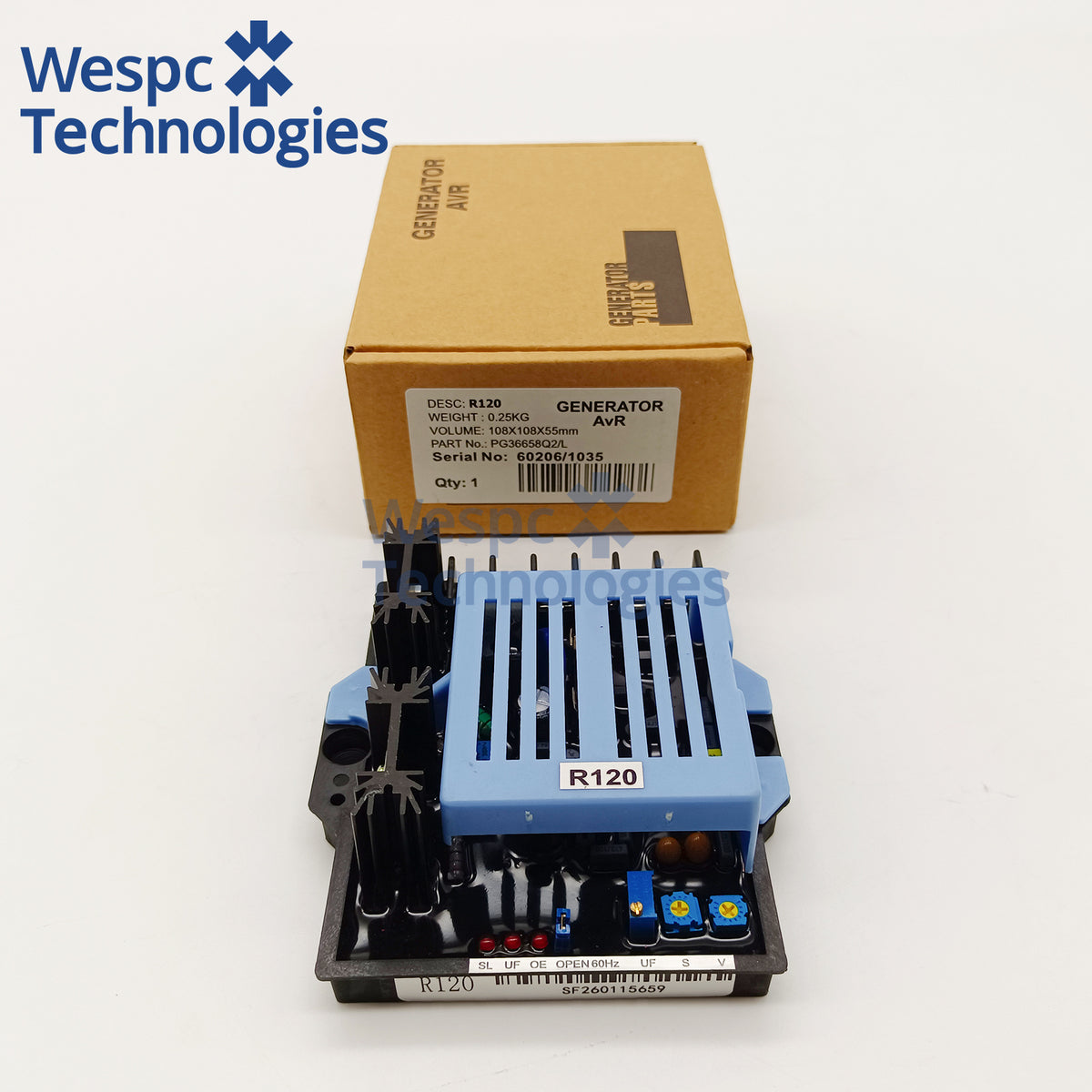

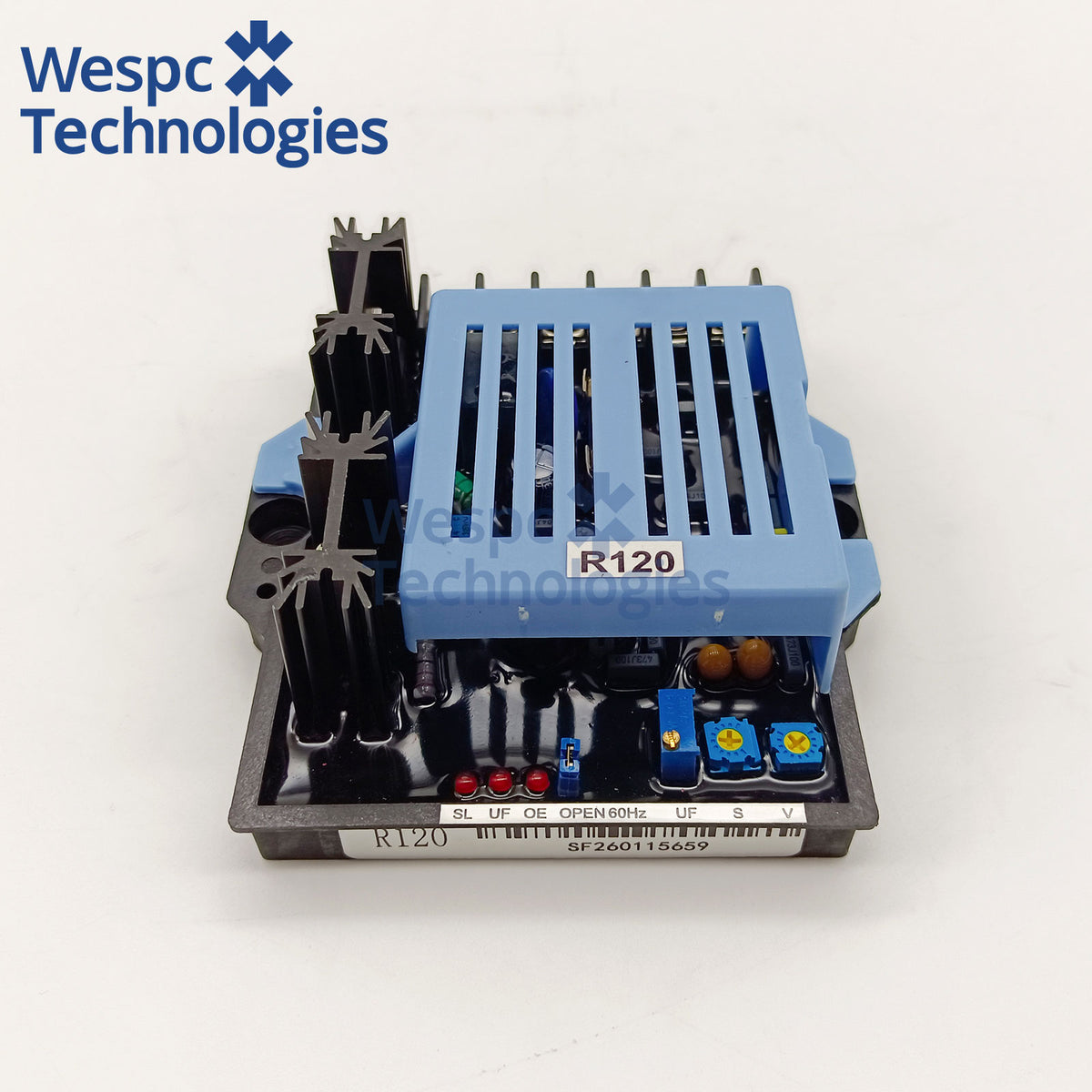

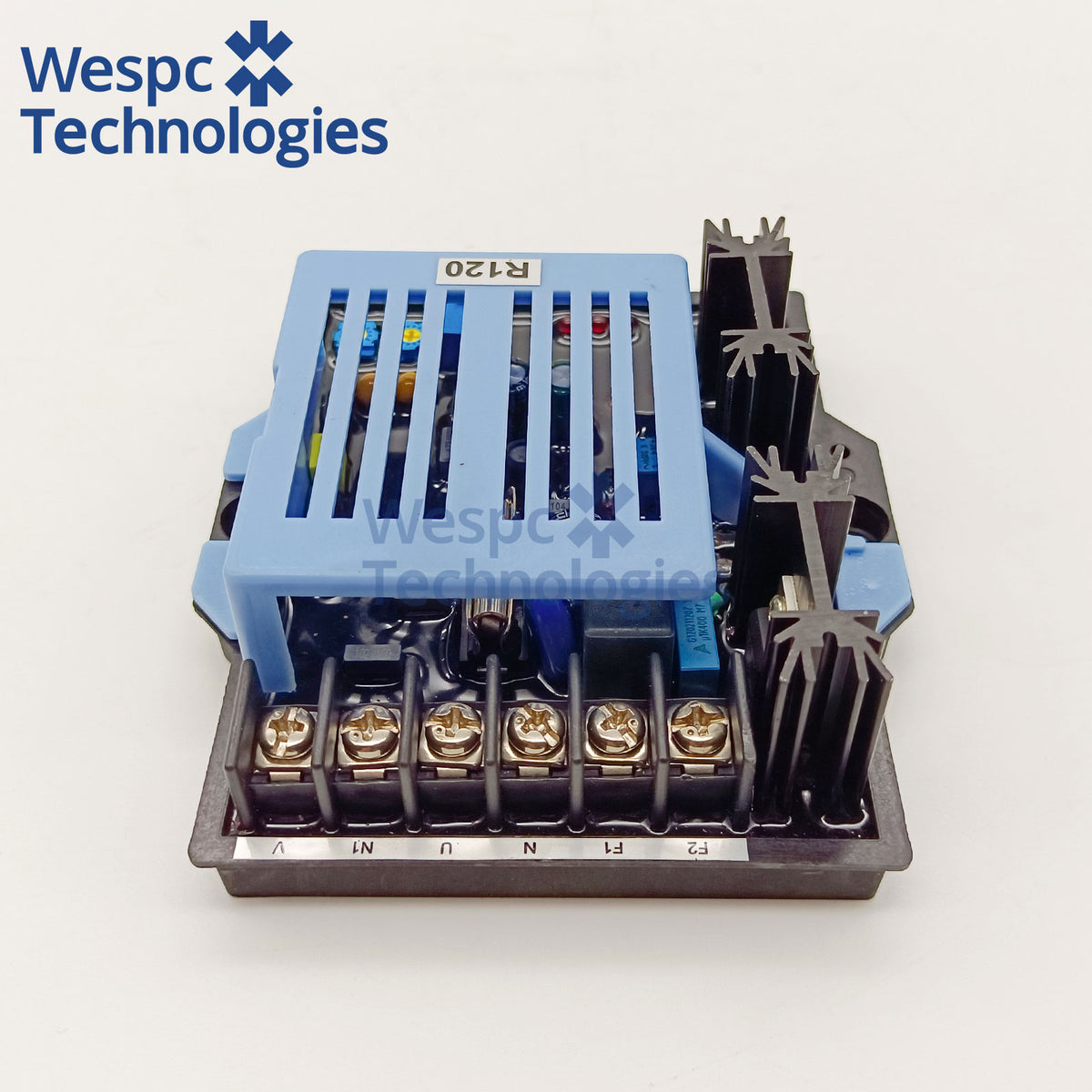

Model: R120 AVR
-
Product Type: Analog Automatic Voltage Regulator (AVR)
-
Supplier: Wespc
-
Rated Excitation Current: Continuous 4A DC; Intermittent 6A DC for 30 seconds
-
Voltage Regulation Accuracy: ±1%
-
Voltage Adjustment Range: ±10% of rated generator voltage
-
Frequency Range: 50Hz / 60Hz jumper selectable
-
Under Frequency Roll-off: 46Hz (50Hz system), 56Hz (60Hz system)
-
Voltage Build-up: 2V L-N residual voltage
-
Key Features: Under frequency roll-off, loss of sensing protection, over-excitation limit, soft start ramp
-
Operating Temperature: -20℃ ~ +70℃
- Storage Temperature: -40℃ ~ +80℃
-
Warranty: 12 months factory warranty
