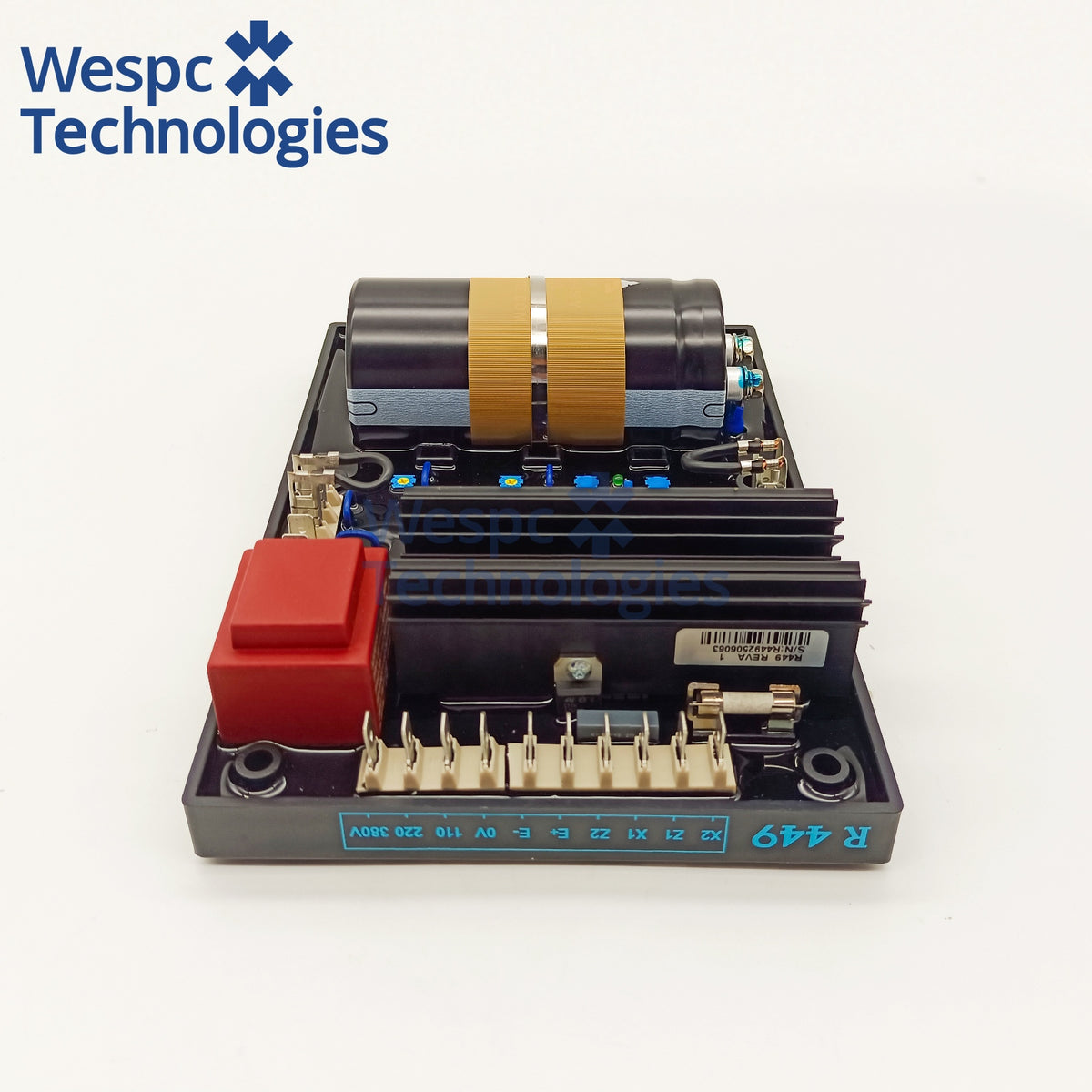

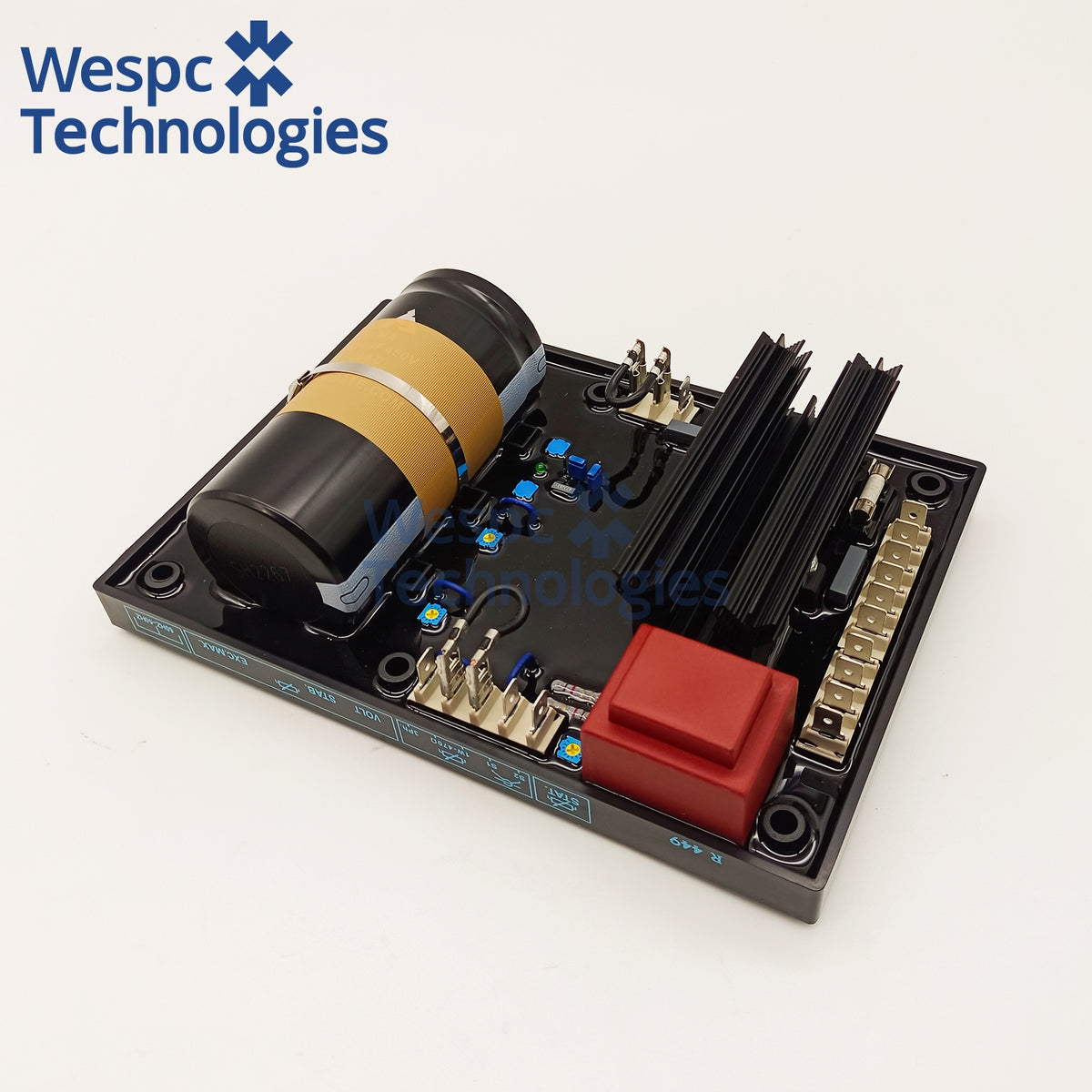

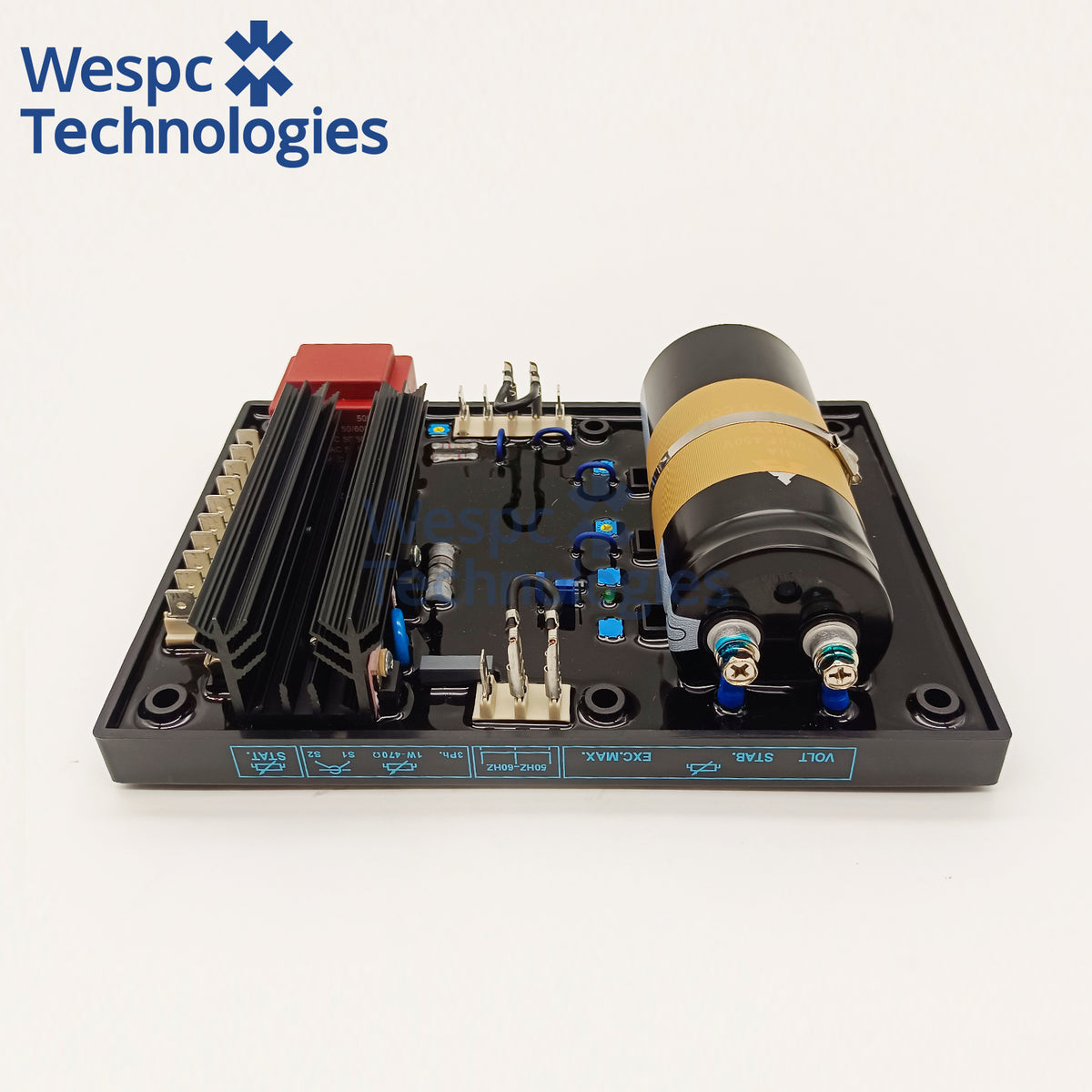

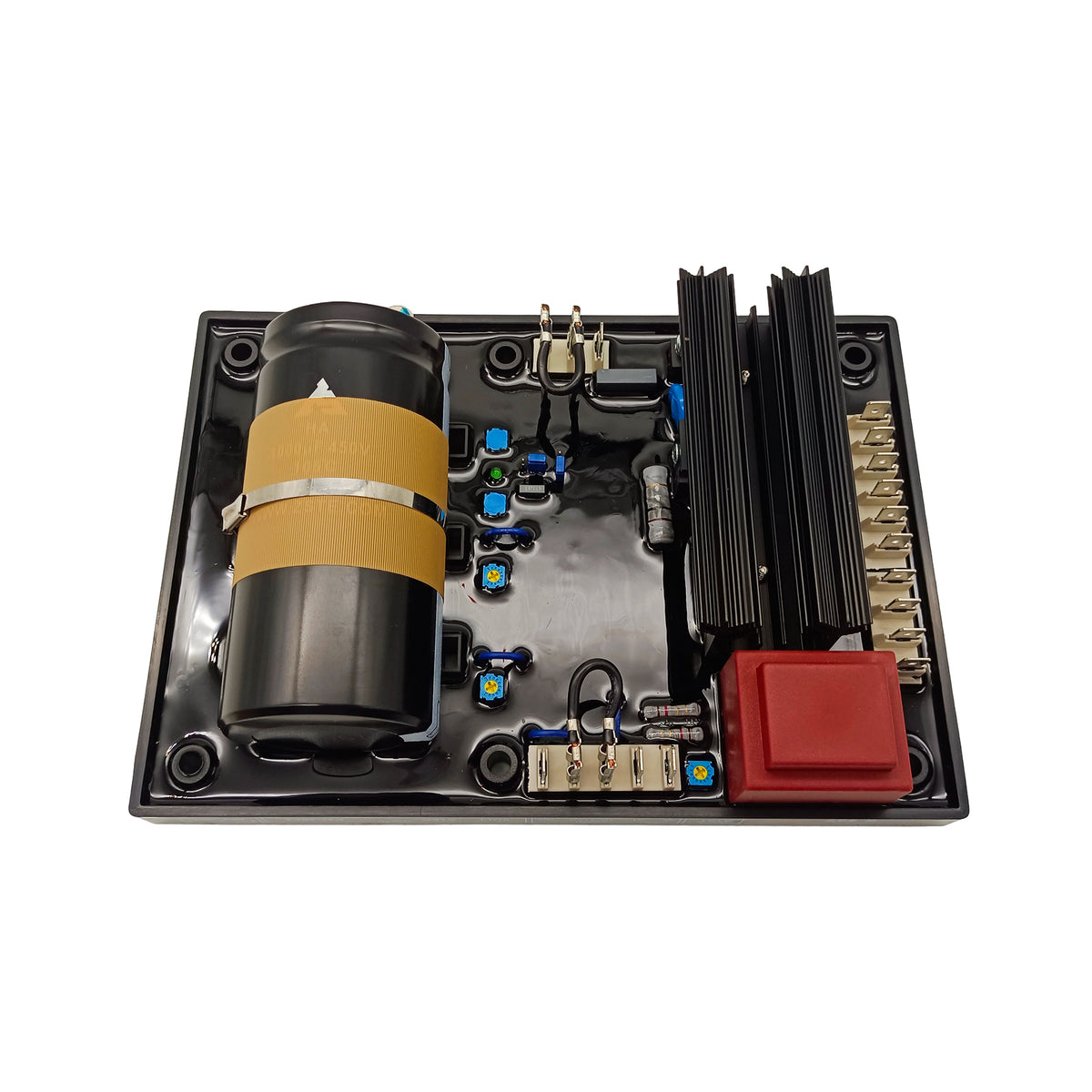

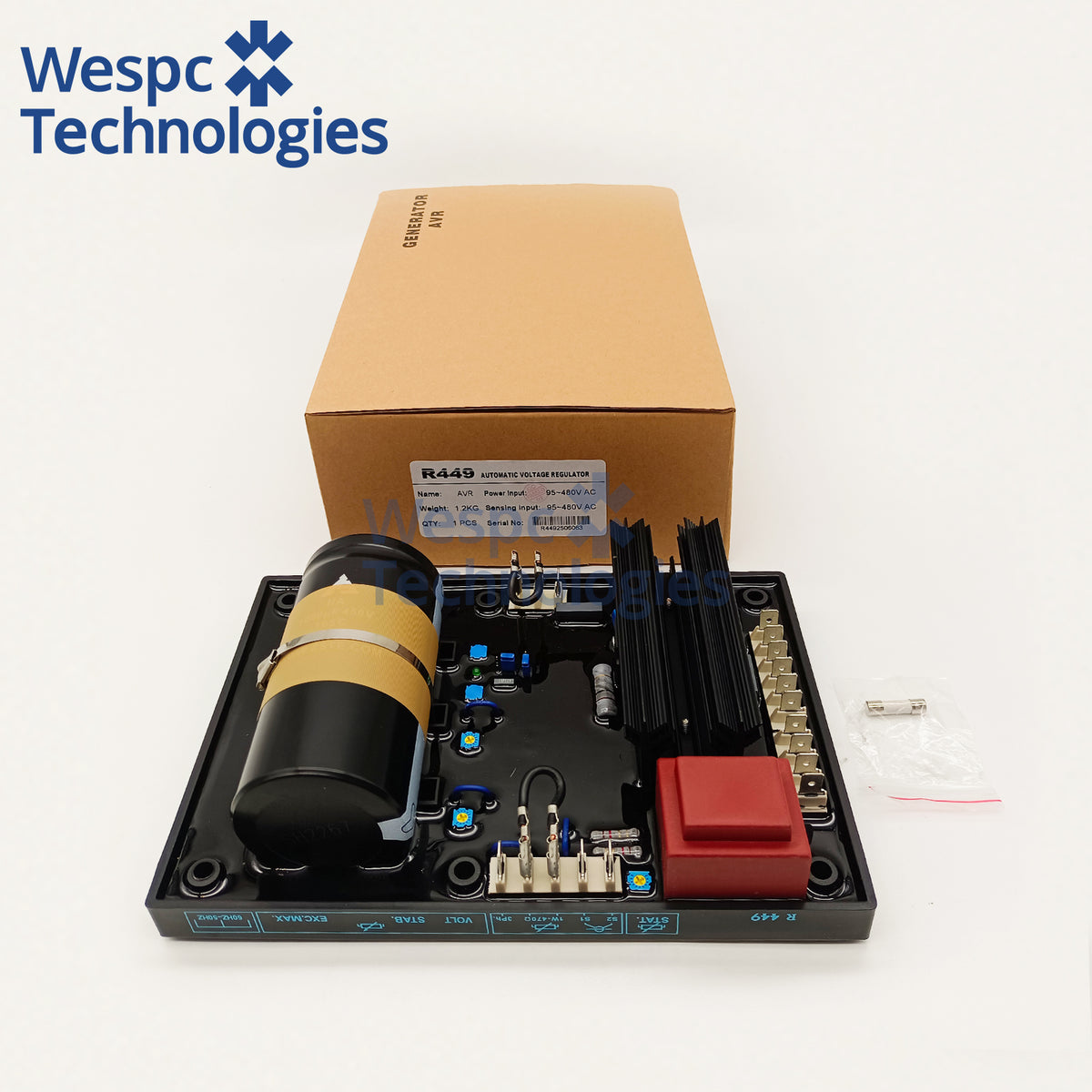

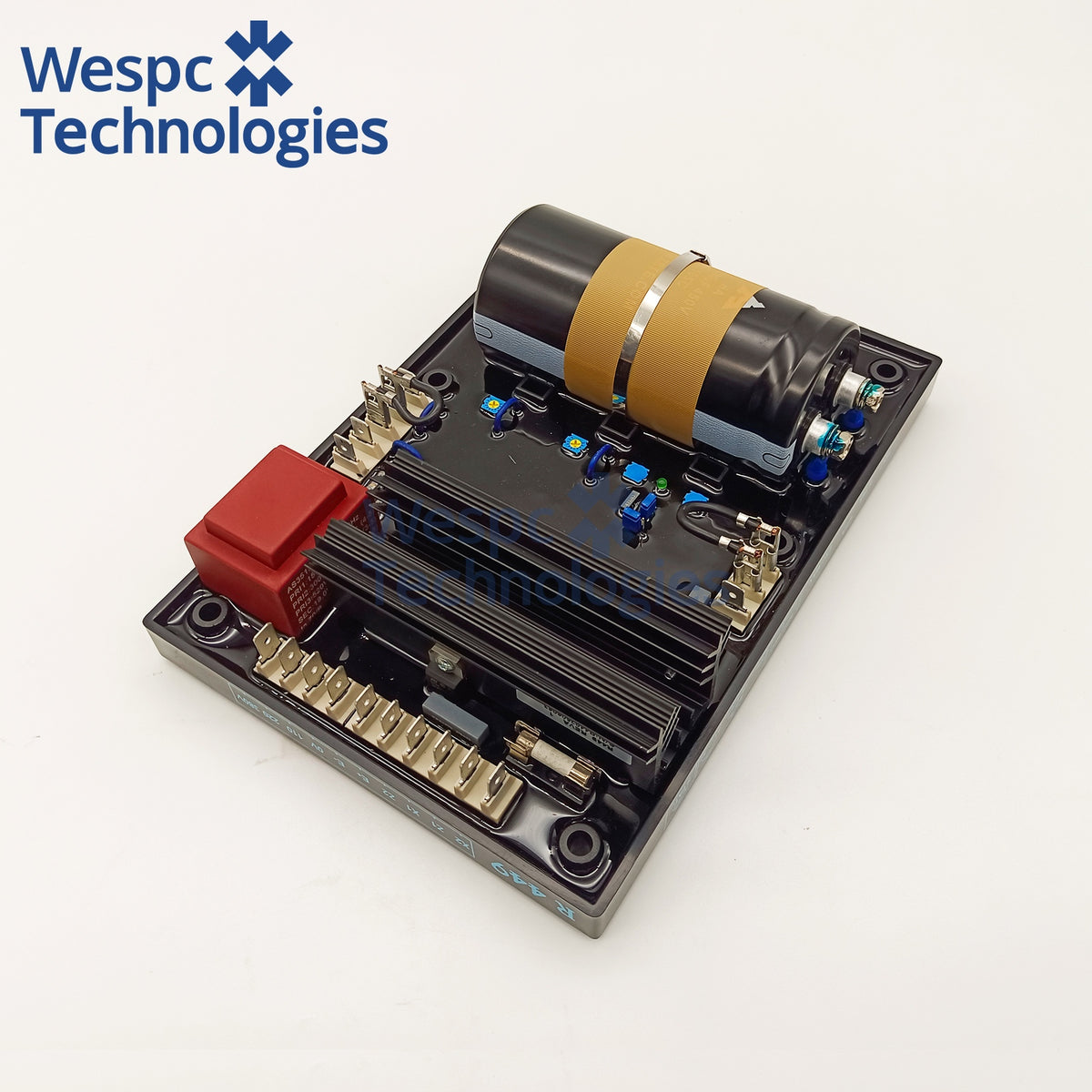

R449 AVR Automatic Voltage Regulator Compatible With Leroy Somer AREP PMG Alternator A50-A54 Genset

Specifications

• Model: R449
• Type: Analog AVR for AREP / PMG excitation alternator
• Sensing Input: 85~520V AC, 50/60Hz
• Continuous Excitation Output: 7A DC
• Peak Excitation Current: 15A DC (10s surge)
• Voltage Regulation Accuracy: ≤ ±1%
• Response Time: ≤600ms
• Functions: U/F underspeed protection, LAM load acceptance, quadrature droop for parallel operation
• Operating Temperature: -25℃ ~ +60℃
• External Fuse: 16A external gG fuse required
• Application: Leroy Somer A50-A54 alternator, AREP / PMG excitation genset & marine generator
• Dimension: 23*7.5*16cm
• Net Weight:1.1kg
• Warrant: 12 months factory warranty
