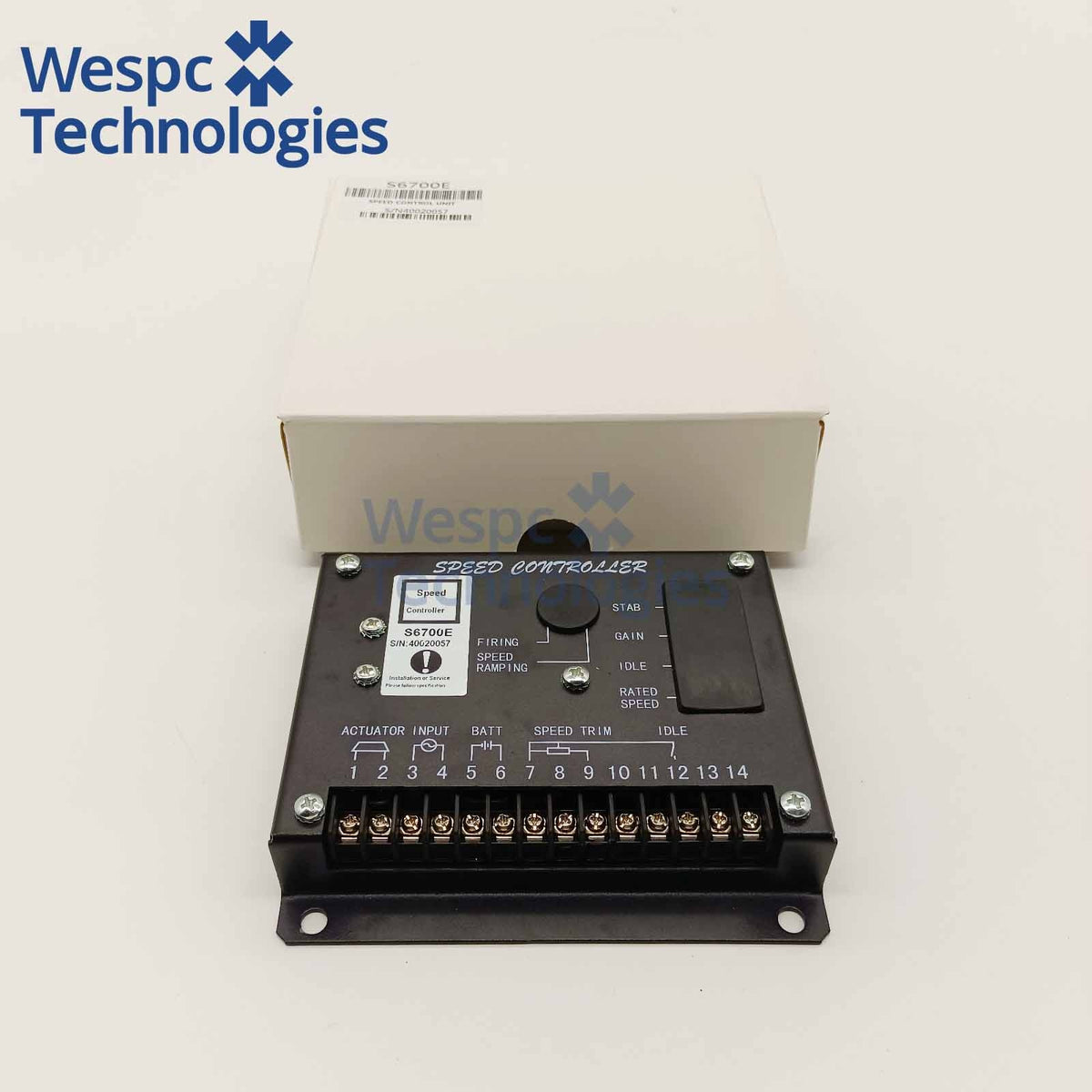

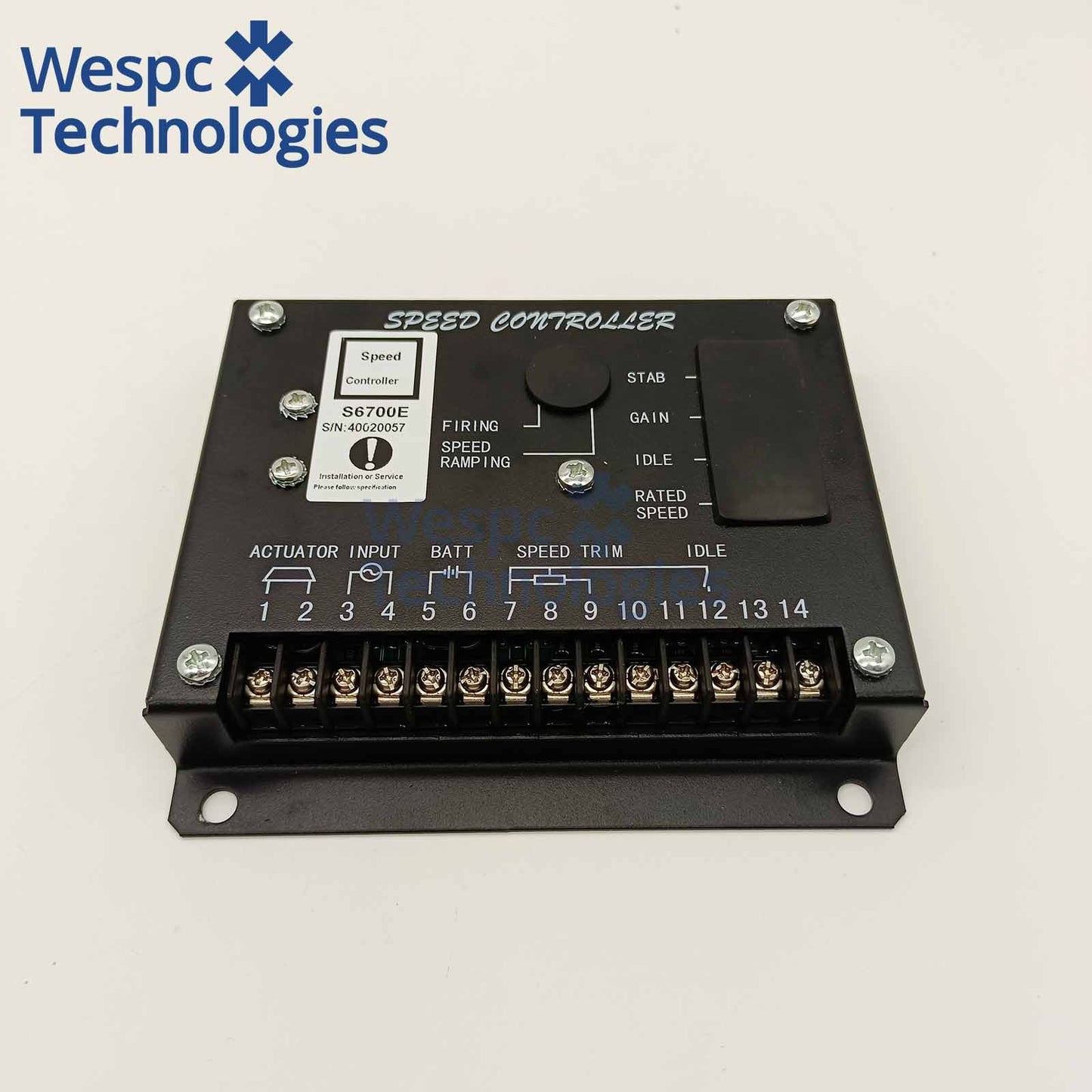

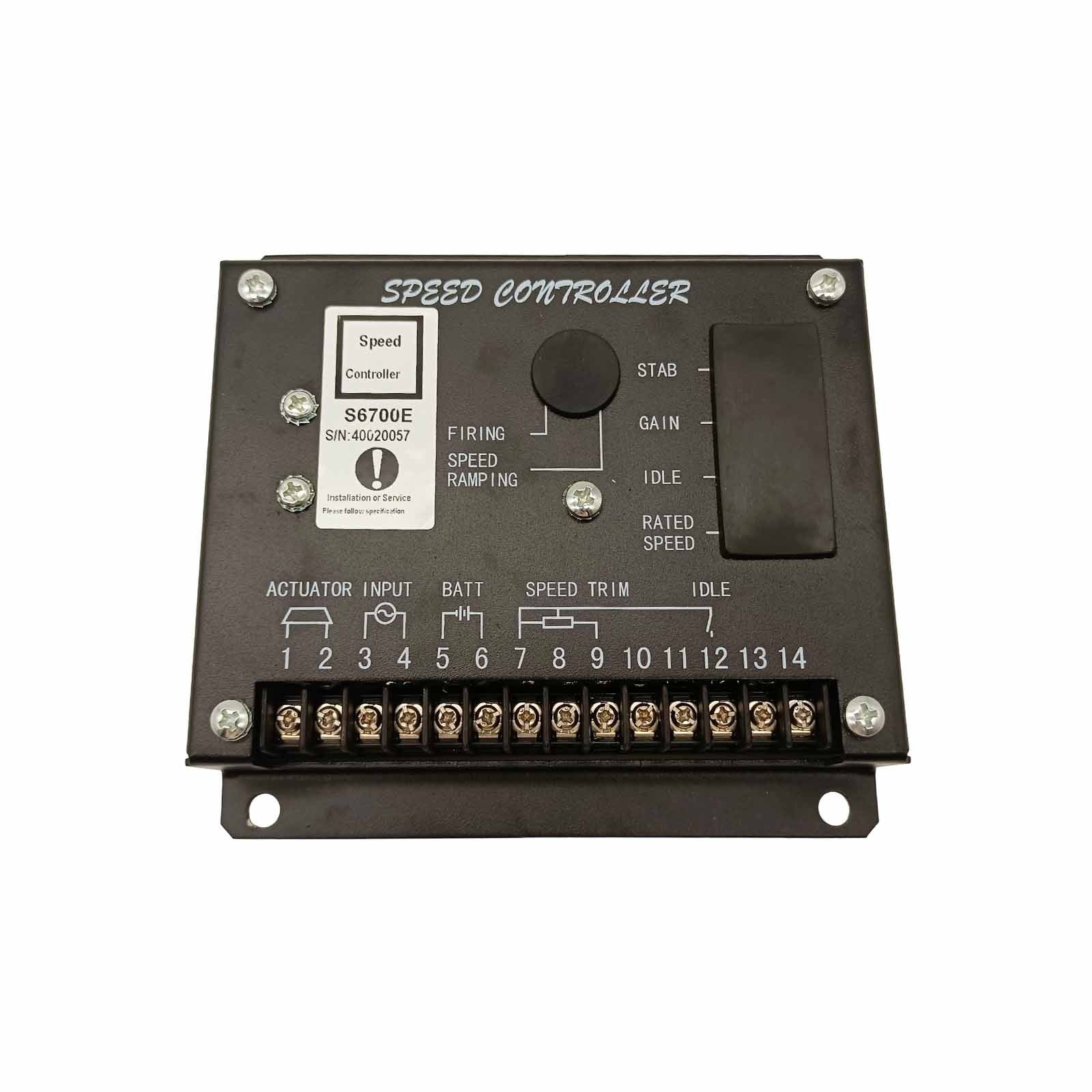

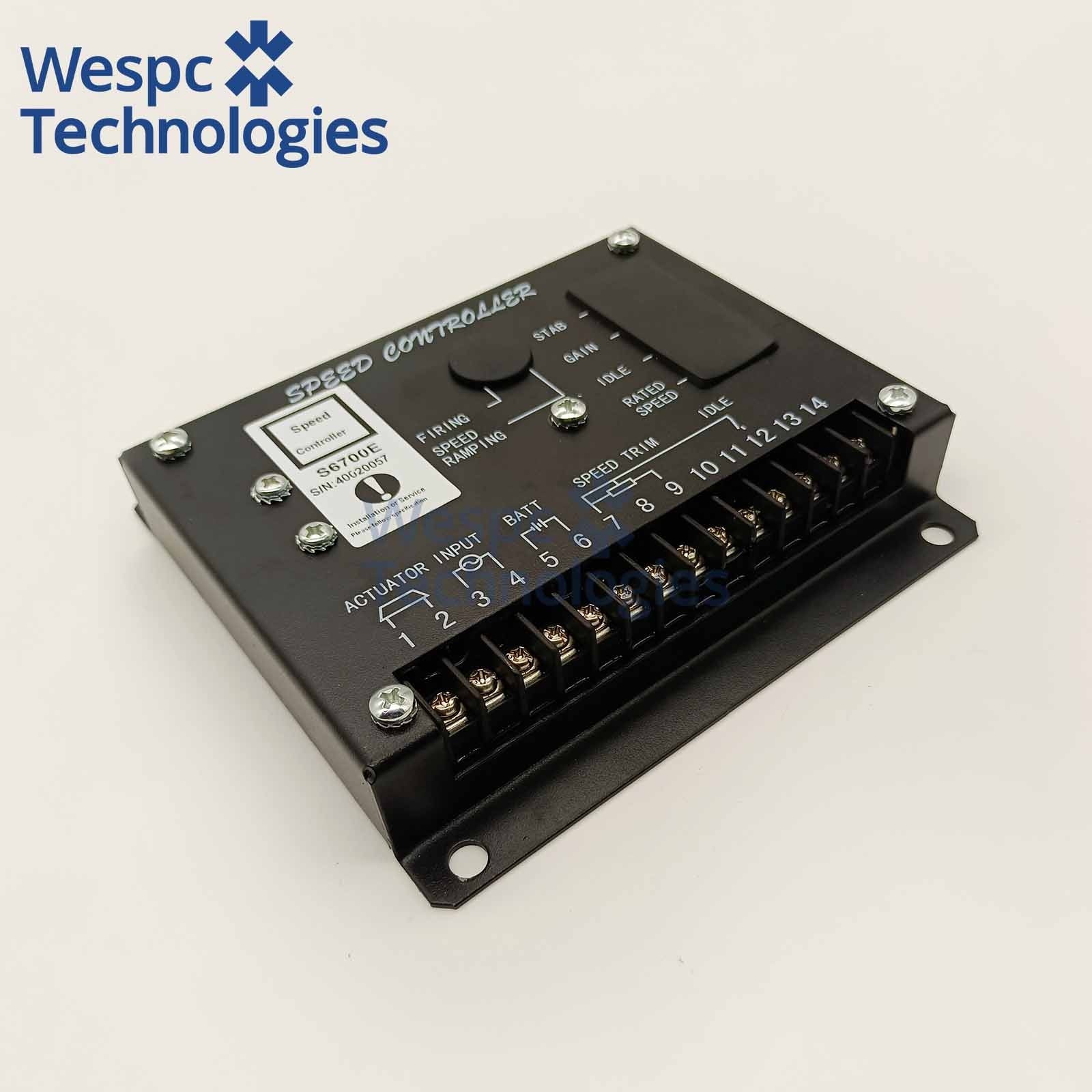

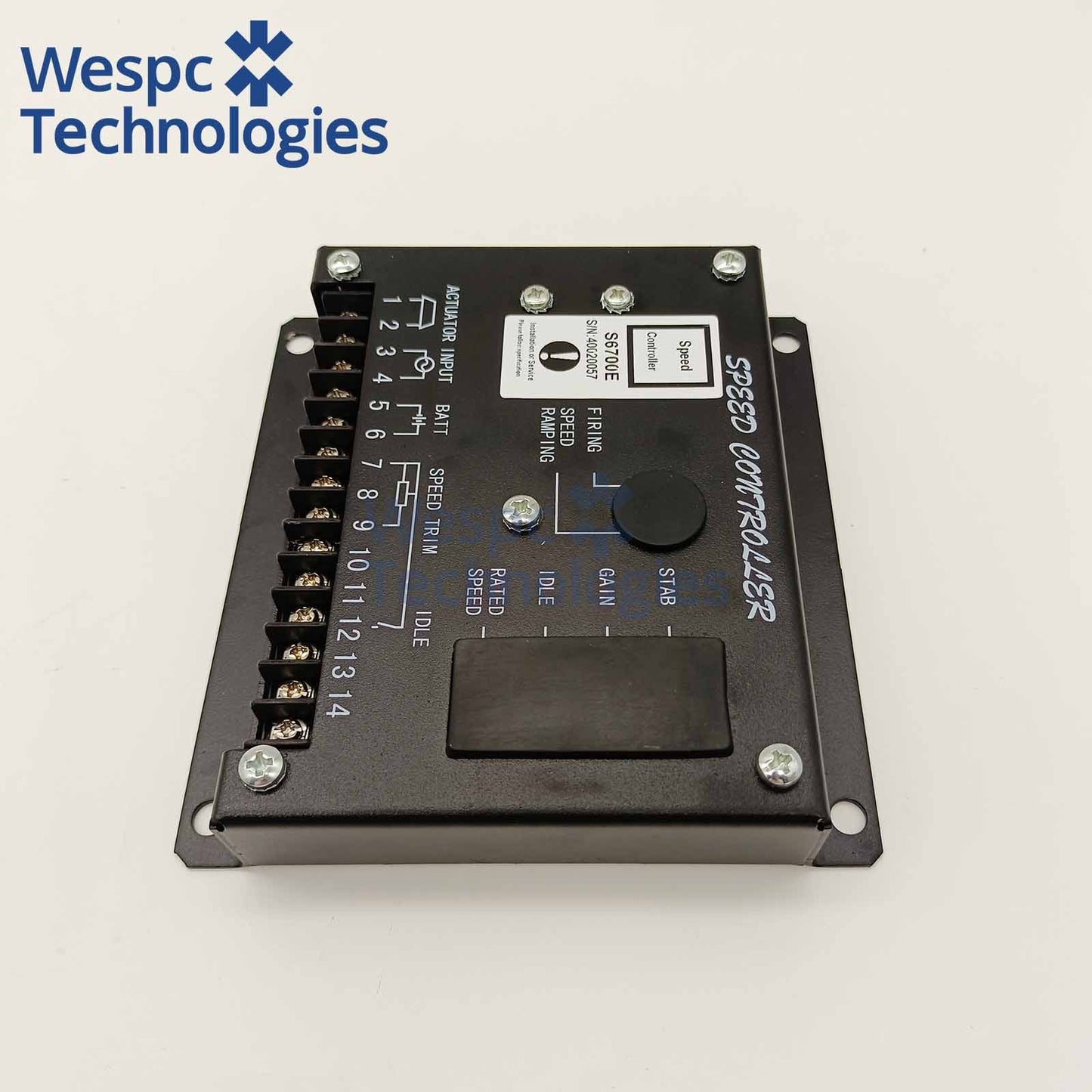

S6700E Electronic Speed Controller Governor Unit 24V DC For Diesel Generator Genset EFC Actuator Replacement

Specifications

‑ Model No: S6700E
‑ Product Type: Diesel Engine Electronic Speed Governor Controller
‑ Power Supply: 24V DC
‑ Continuous Actuator Output Current: 2.5‑10A ‑ Speed Sensor Input: 1‑20V AC magnetic pickup signal
‑ Speed Frequency Range: 1kHz‑7.5kHz
‑ Speed Stability: ±0.25%
‑ Steady State Speed Droop: 0‑3% adjustable
‑ Max Temperature Drift: ±1%
‑ Built‑in Protection: Reverse power protection, transient over‑voltage, speed signal loss, actuator fault, overspeed alarm
‑ Working Temperature: ‑40℃ ~ +80℃
‑ Relative Humidity: ≤95% non‑condensing

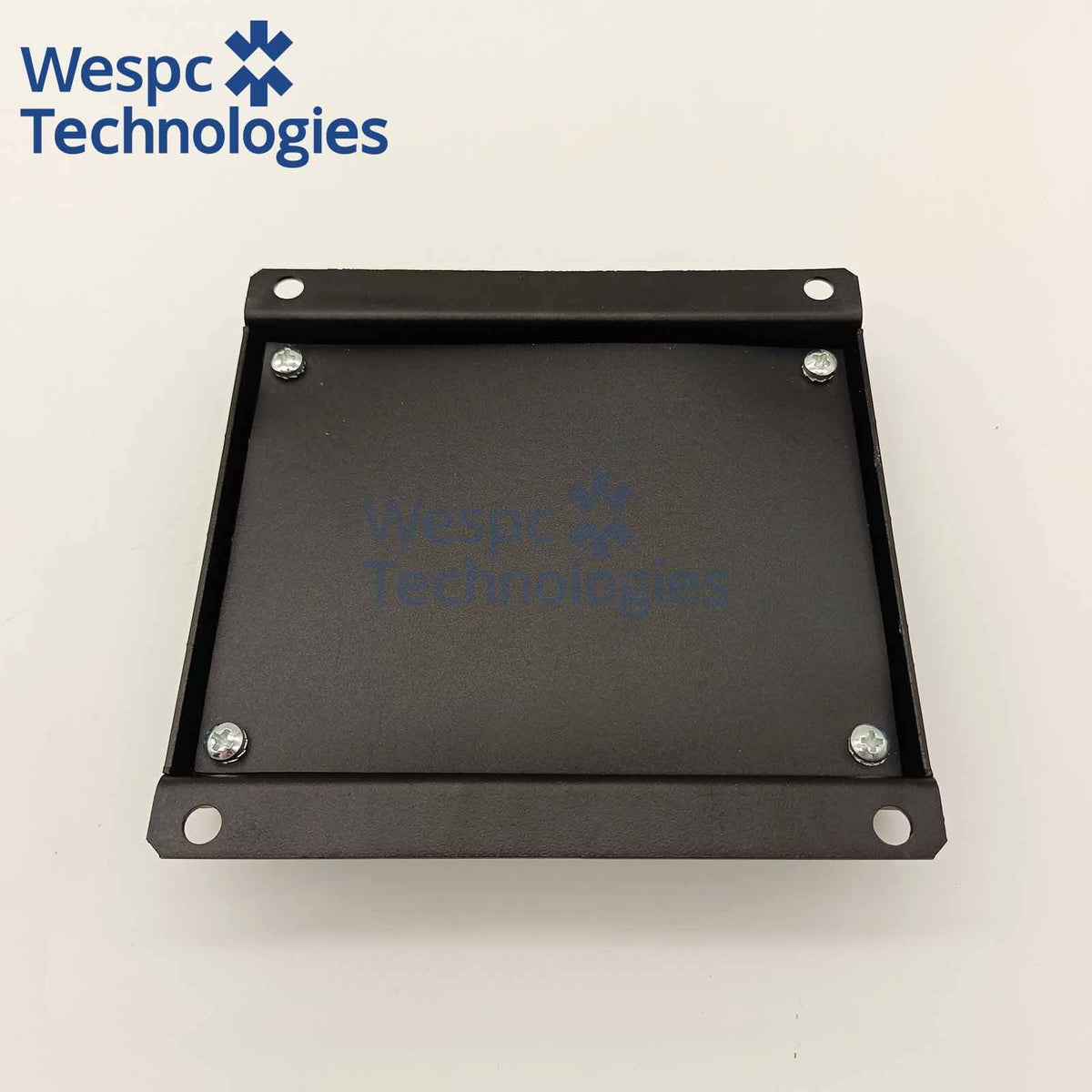

‑ Mounting: Screw fixed metal housing for cabinet installation
‑ Condition: Brand New Aftermarket
‑ Net Weight: 1.6kg
‑ Warranty: 12 months factory warranty
