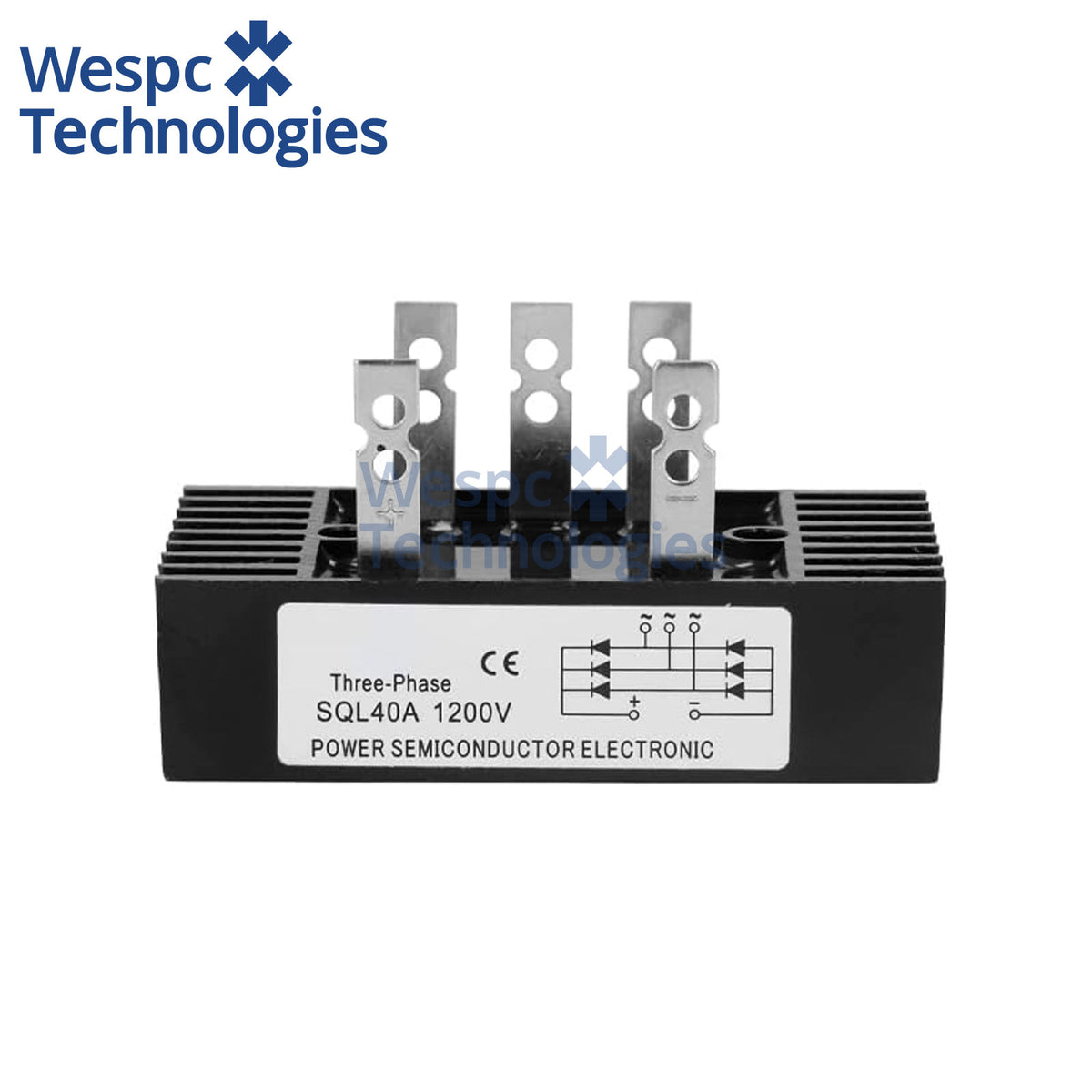

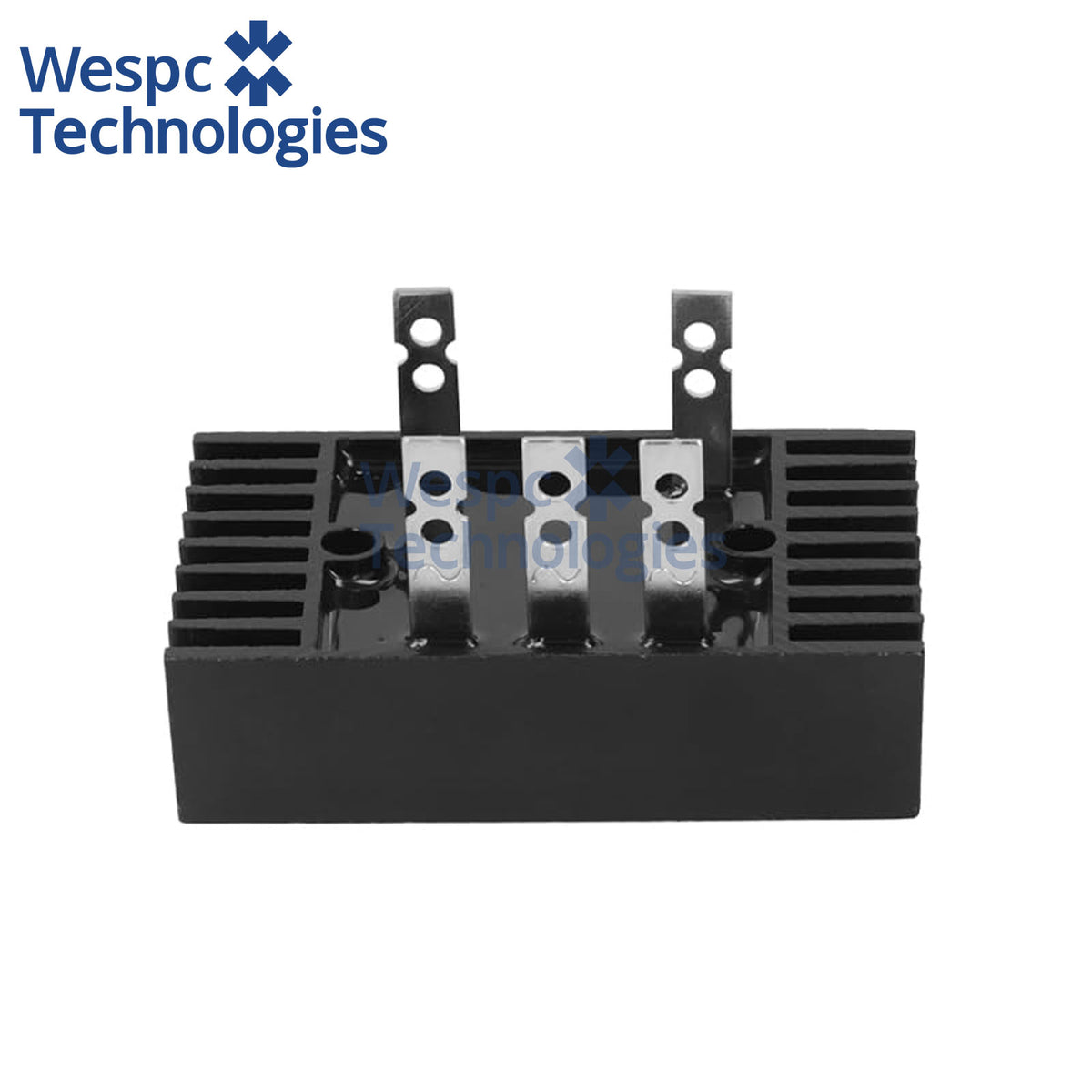

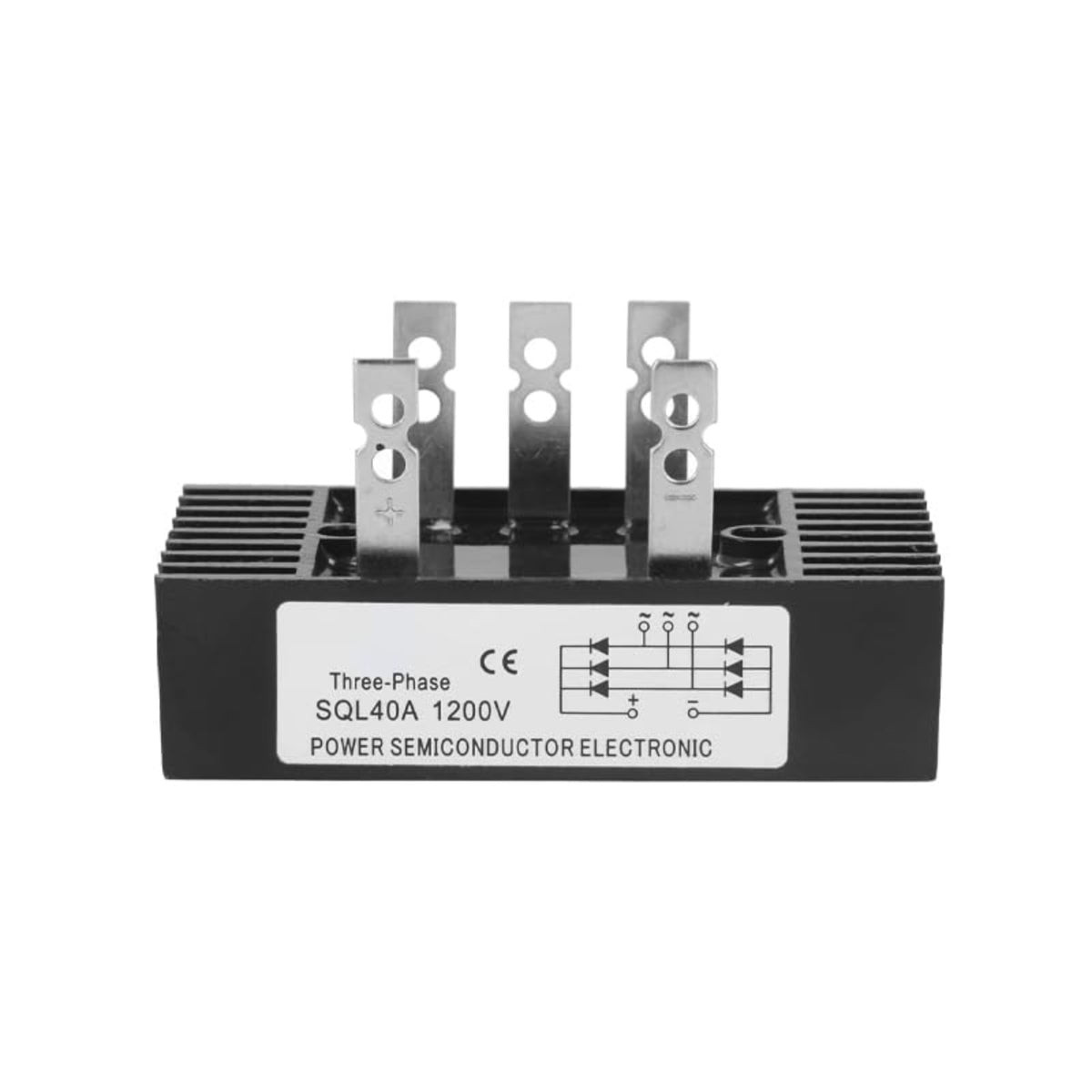

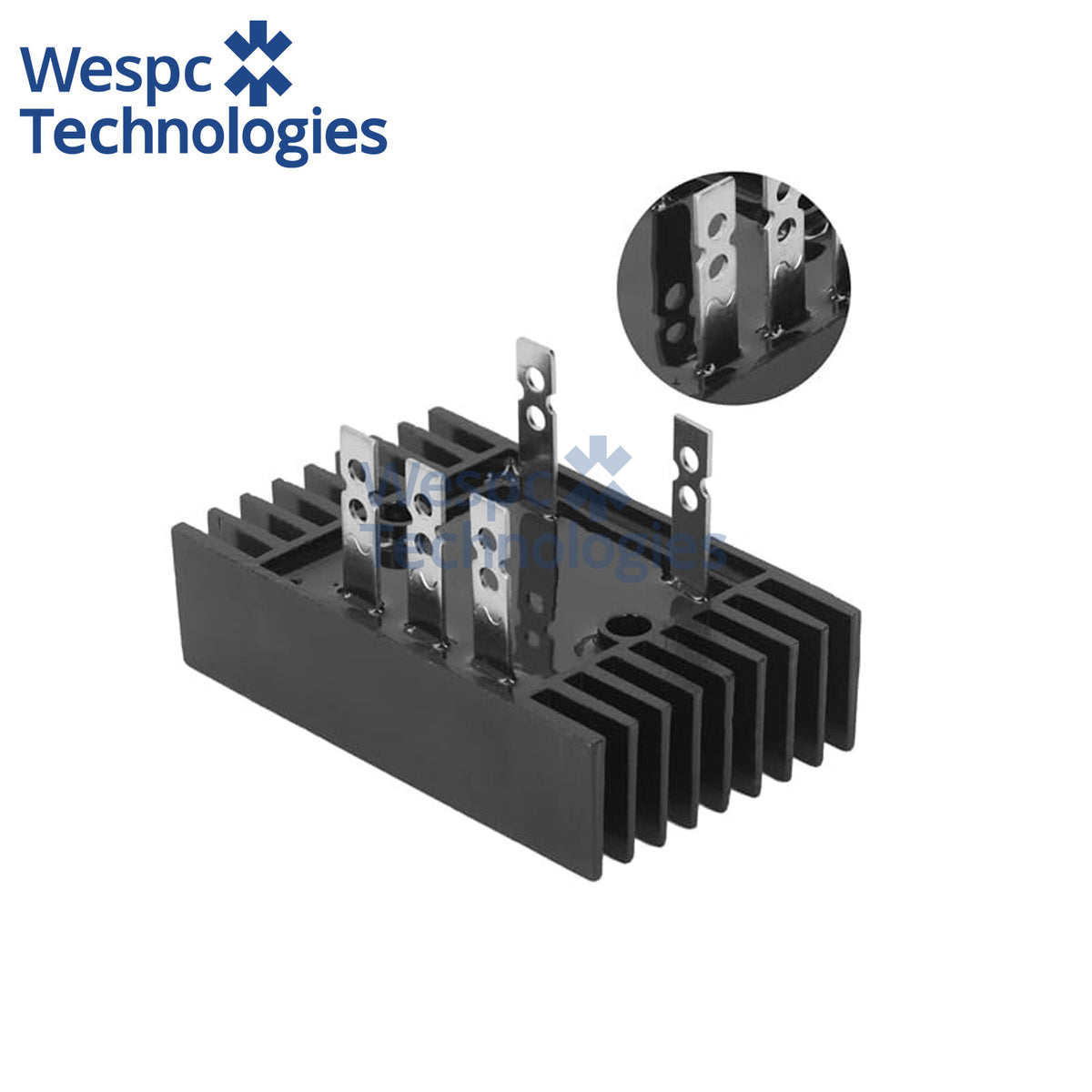

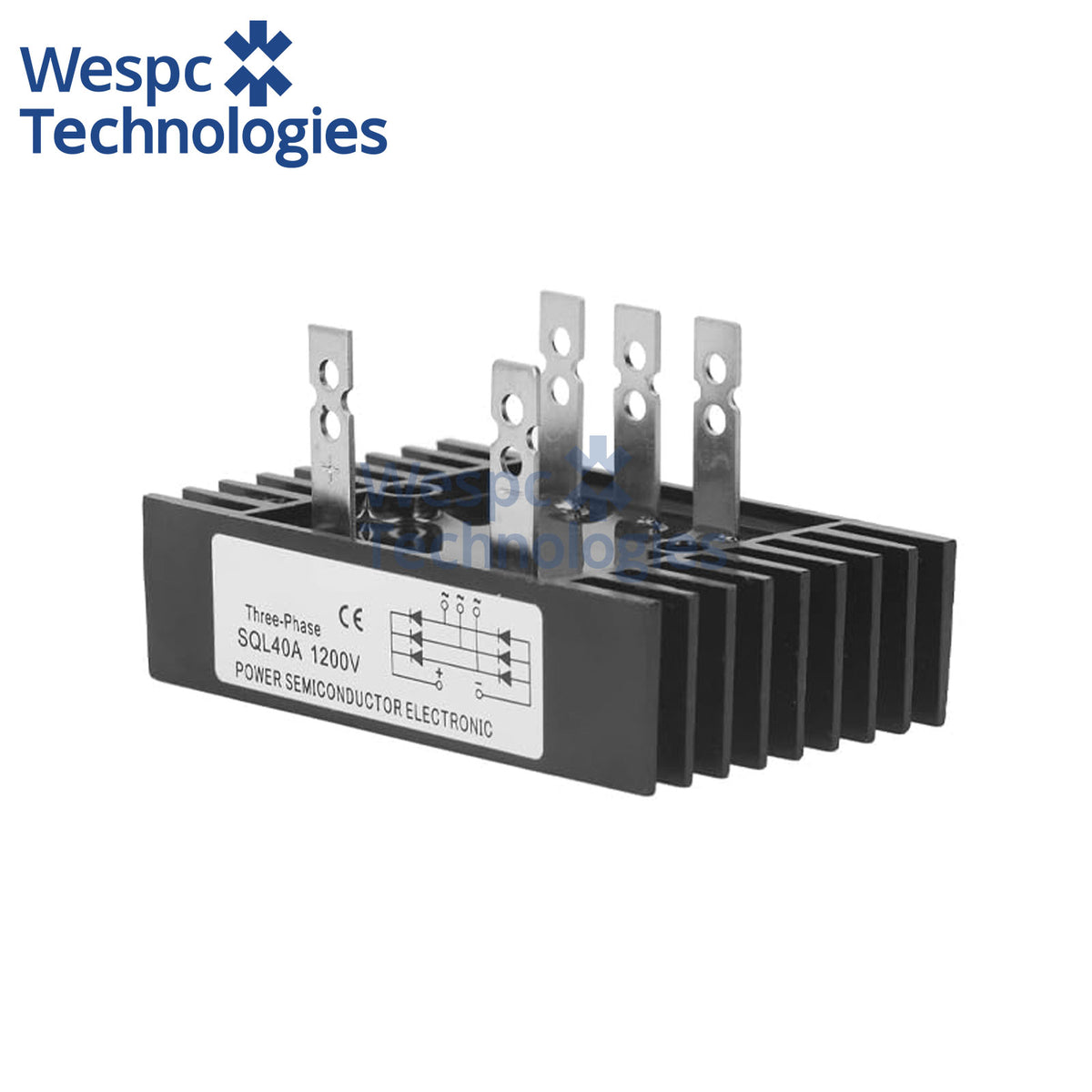

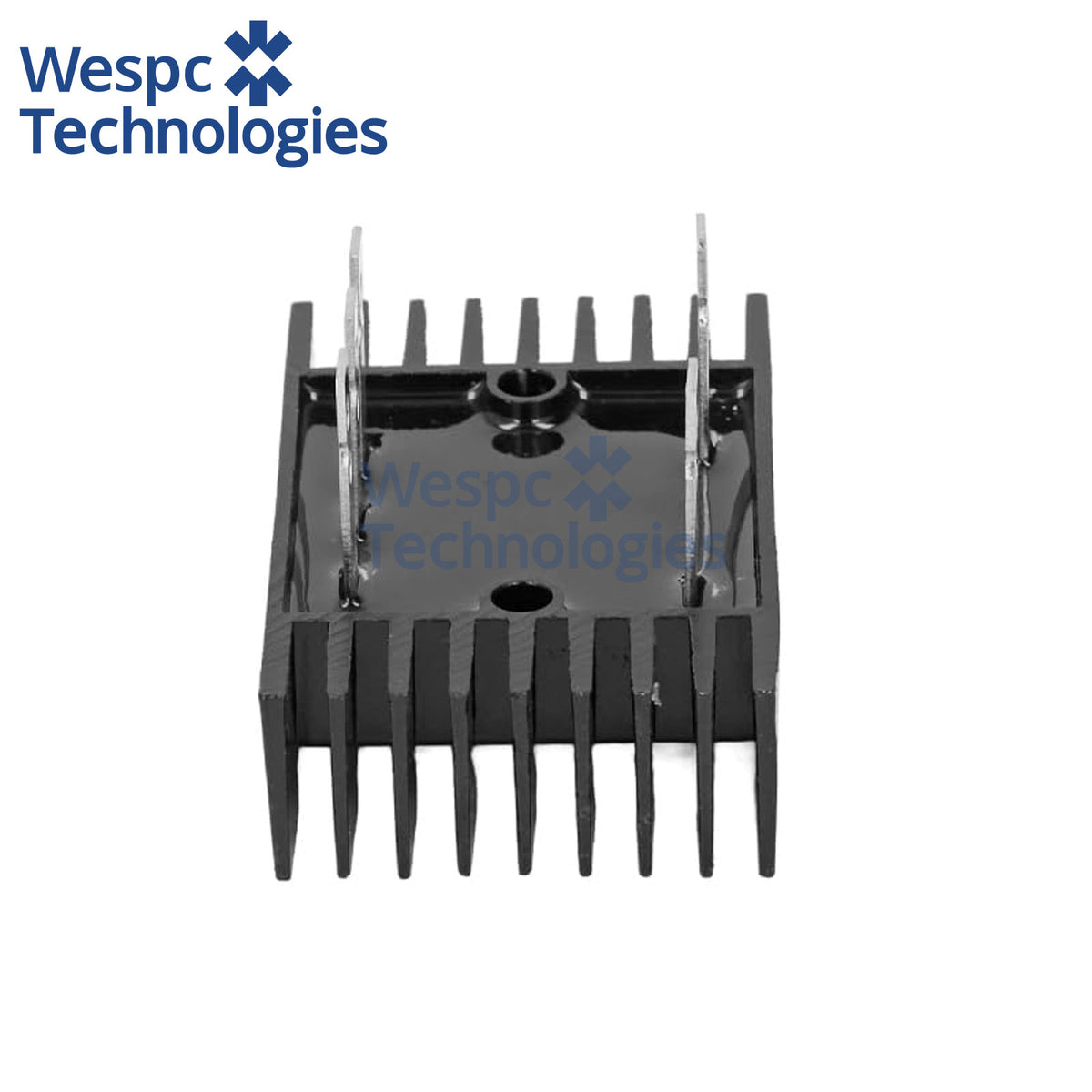

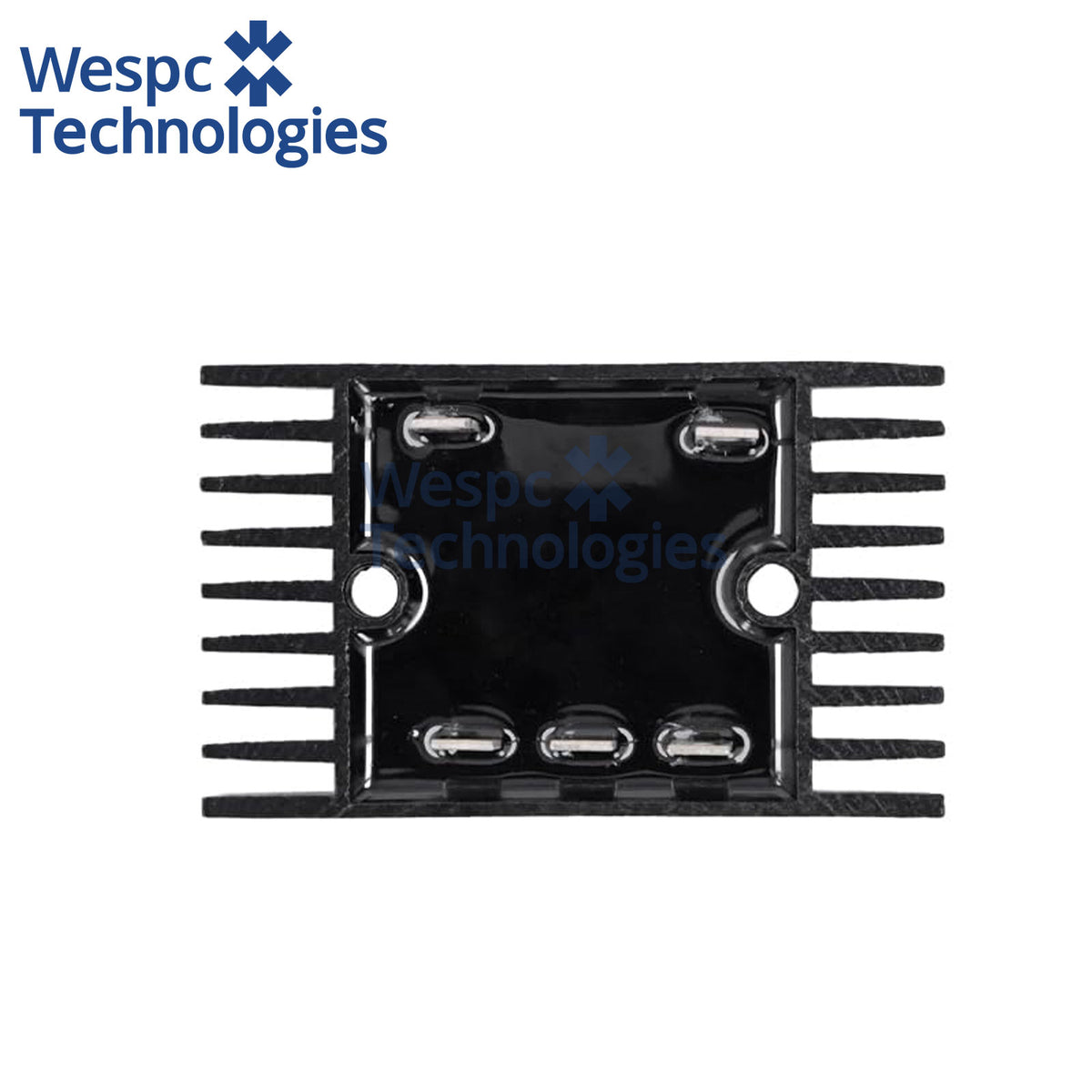

SQL40A Three Phase Power Semiconductor Electronic 1200V 40A Alternator Diode Rectifier for Diesel Generator

Specifications

• Model: SQL40A (1200V)
• Full Name: SQL40A Three Phase Power Semiconductor Electronic Module
• Type: Three Phase Bridge Rectifier
• Brand: WESPC
• Rated Output Current: 40A
• Repetitive Peak Reverse Voltage (VRRM): 1200V
• Heat Sink: Integrated aluminum heat sink
• Diode Chip: Glass passivated silicon diode
• Insulation Voltage: 2500V AC
• Terminals: 5 terminals
• Feature: Low forward voltage drop, good thermal dissipation, anti-surge, low leakage current, vibration resistant
• Mounting: Bolt mounting, standard footprint
• Application: Brushless alternator excitation, diesel generator rectifier replacement, industrial power supply rectification
• Warranty: 12 months factory warranty
