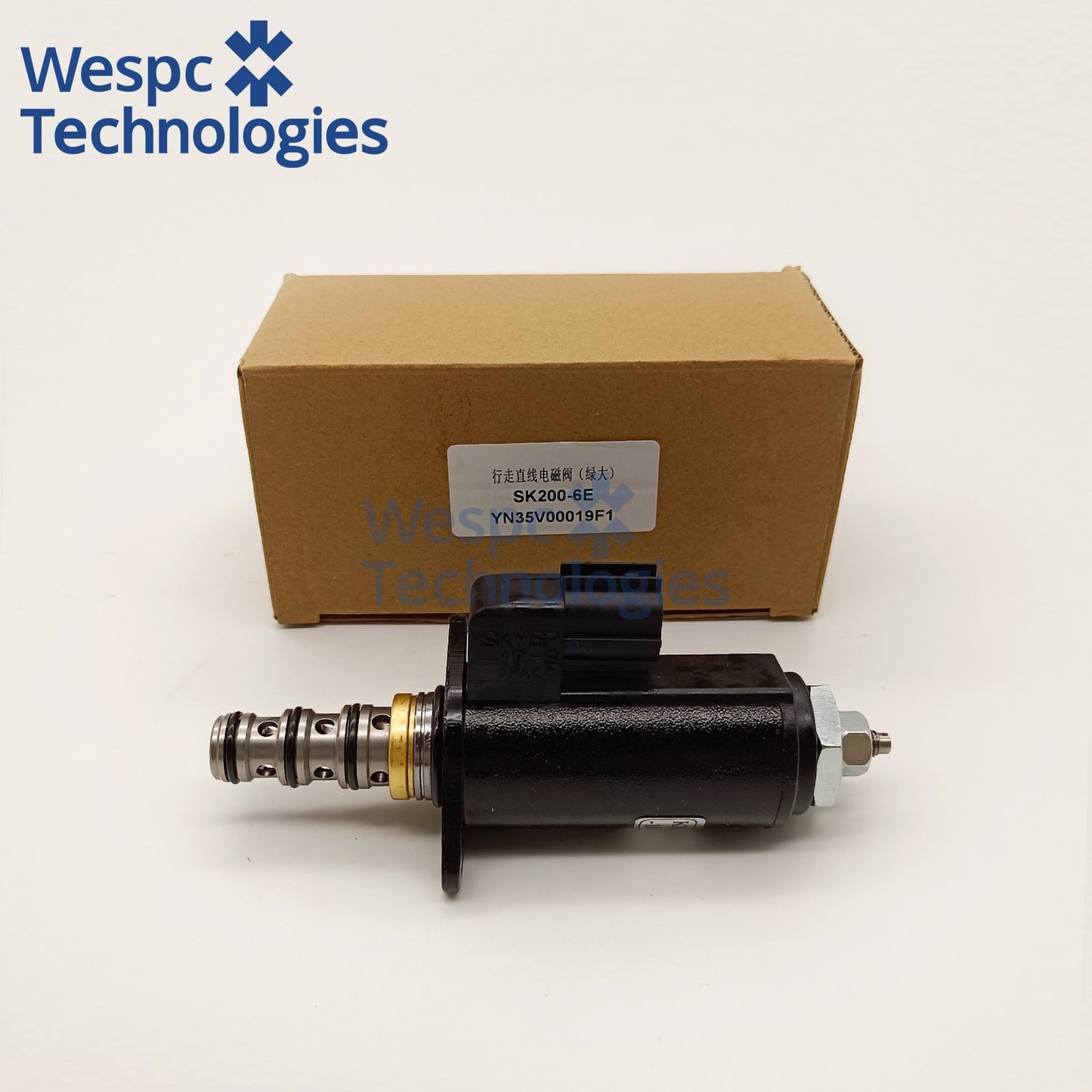

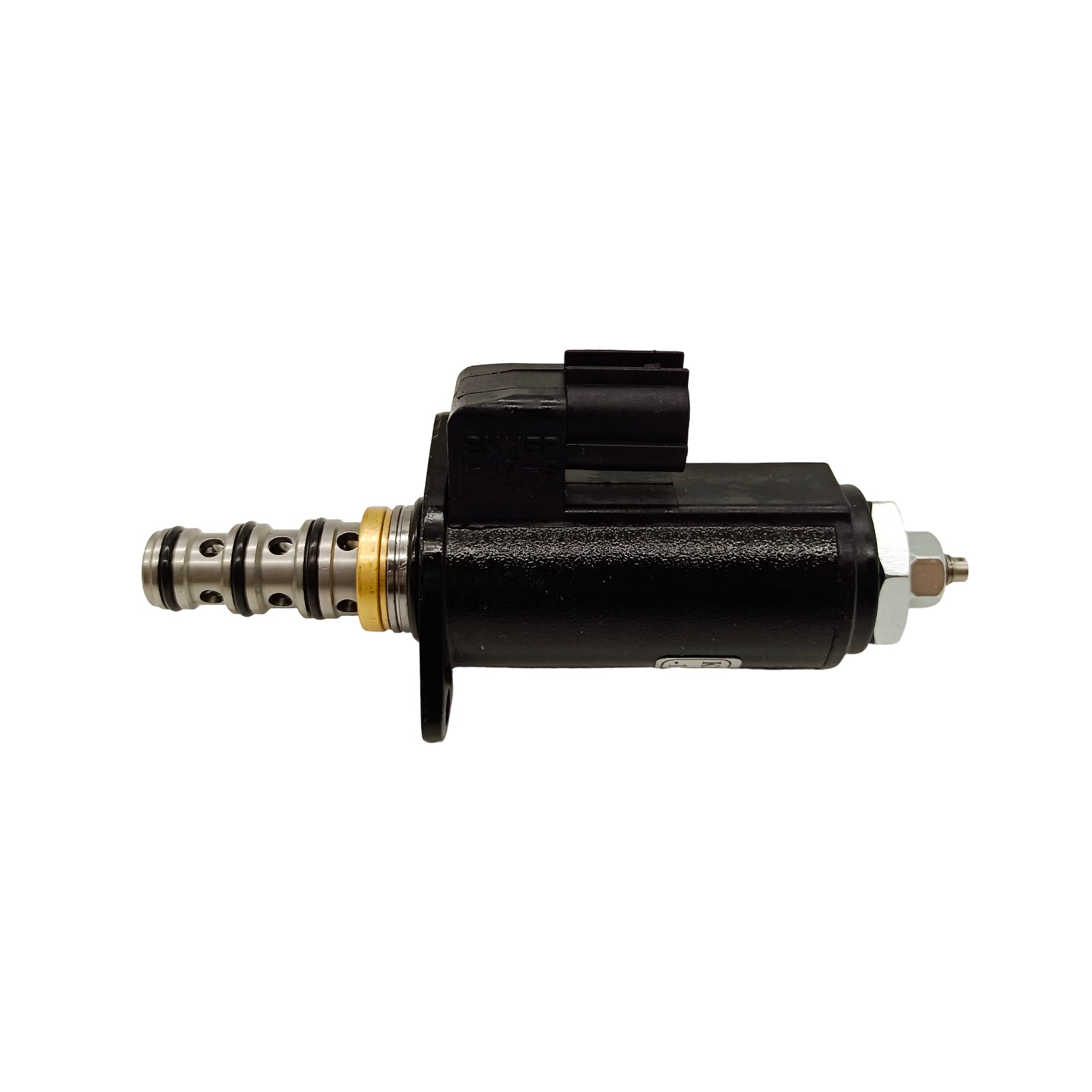

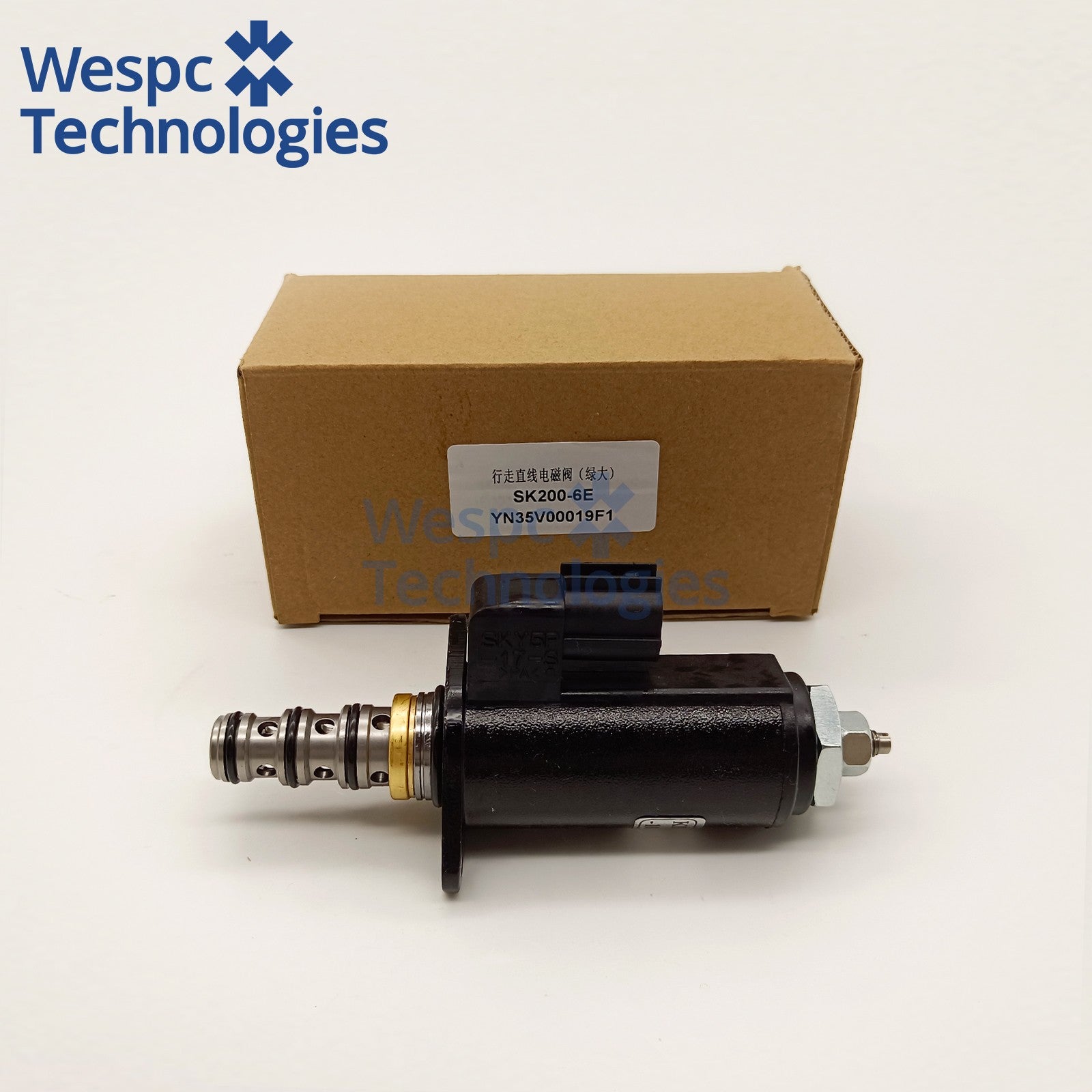

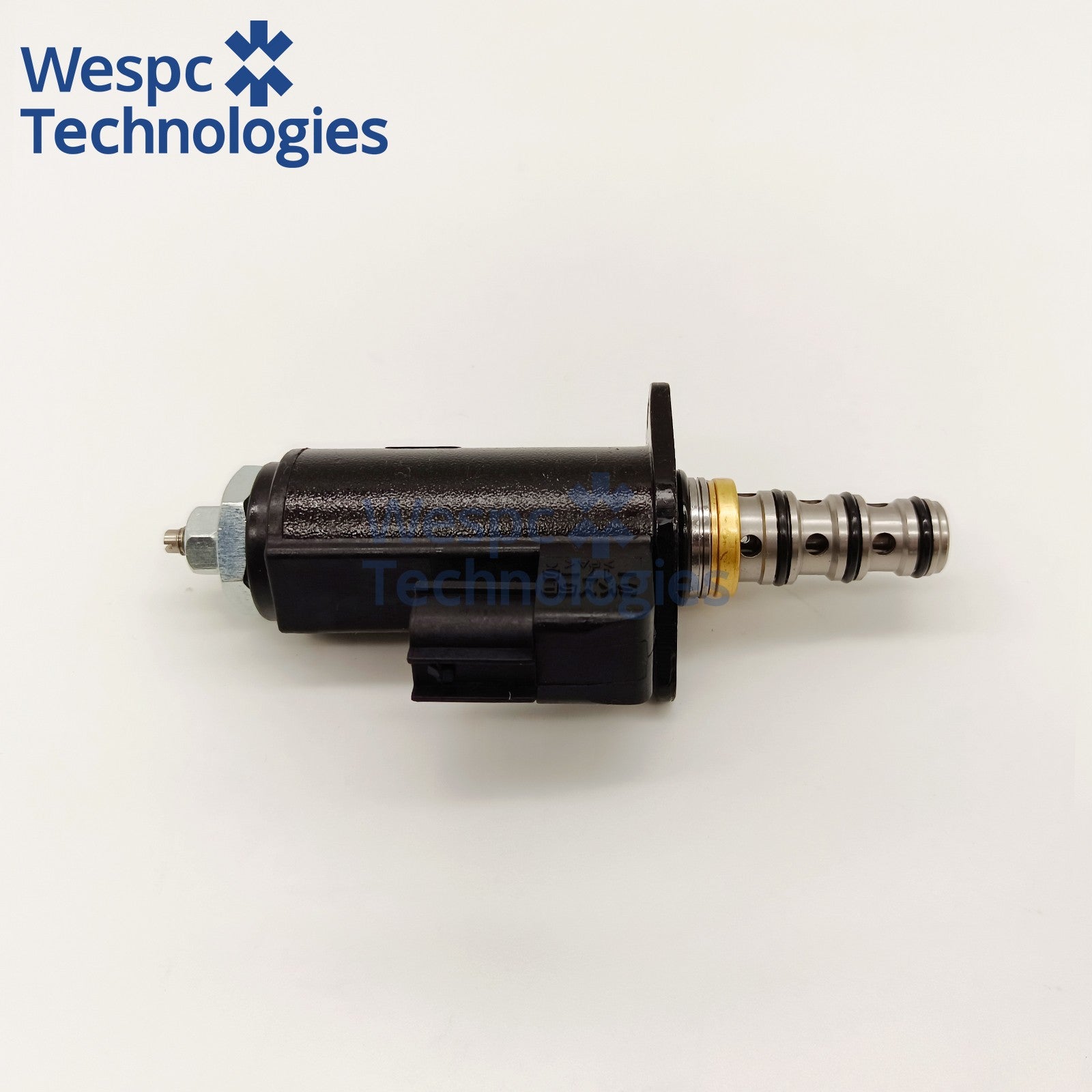

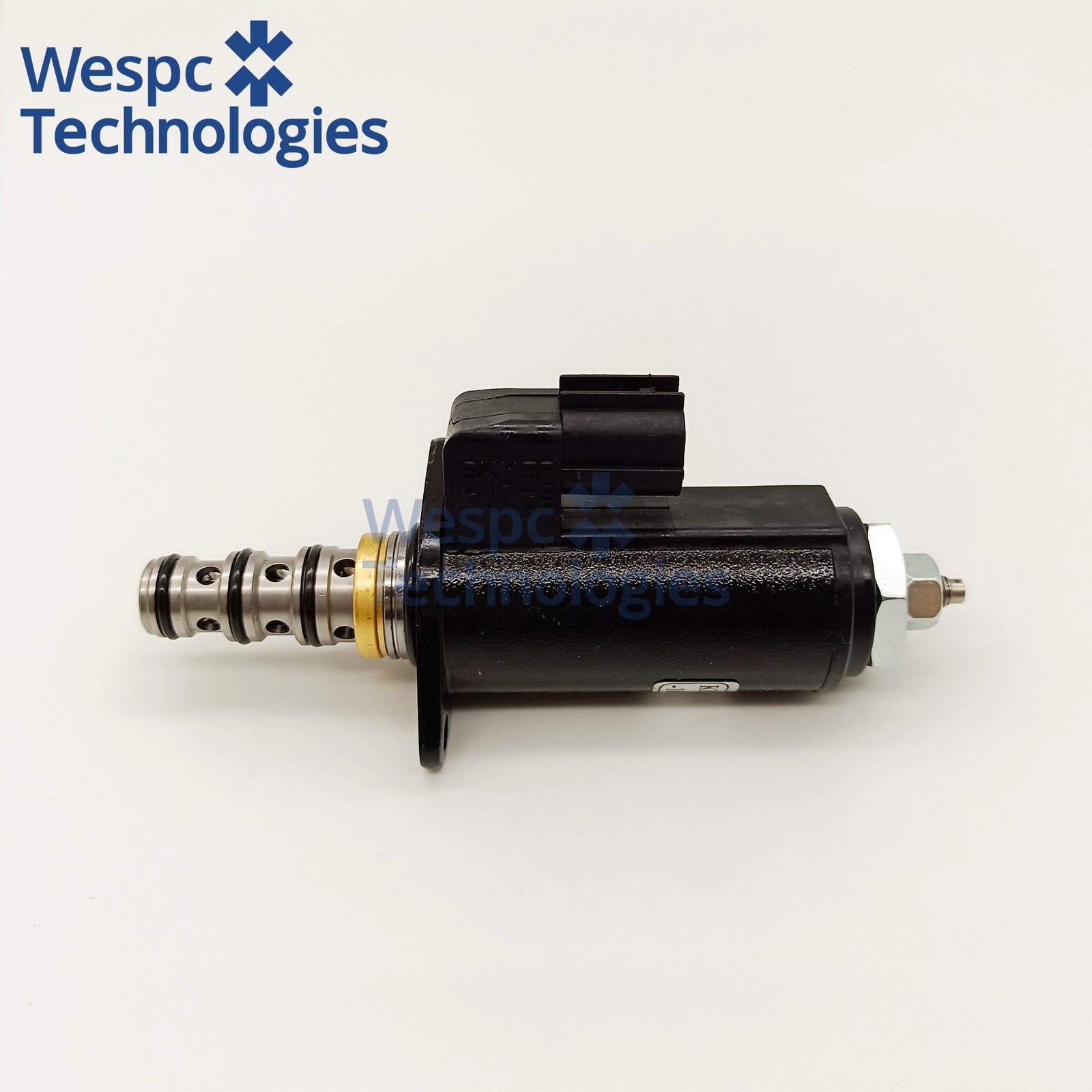

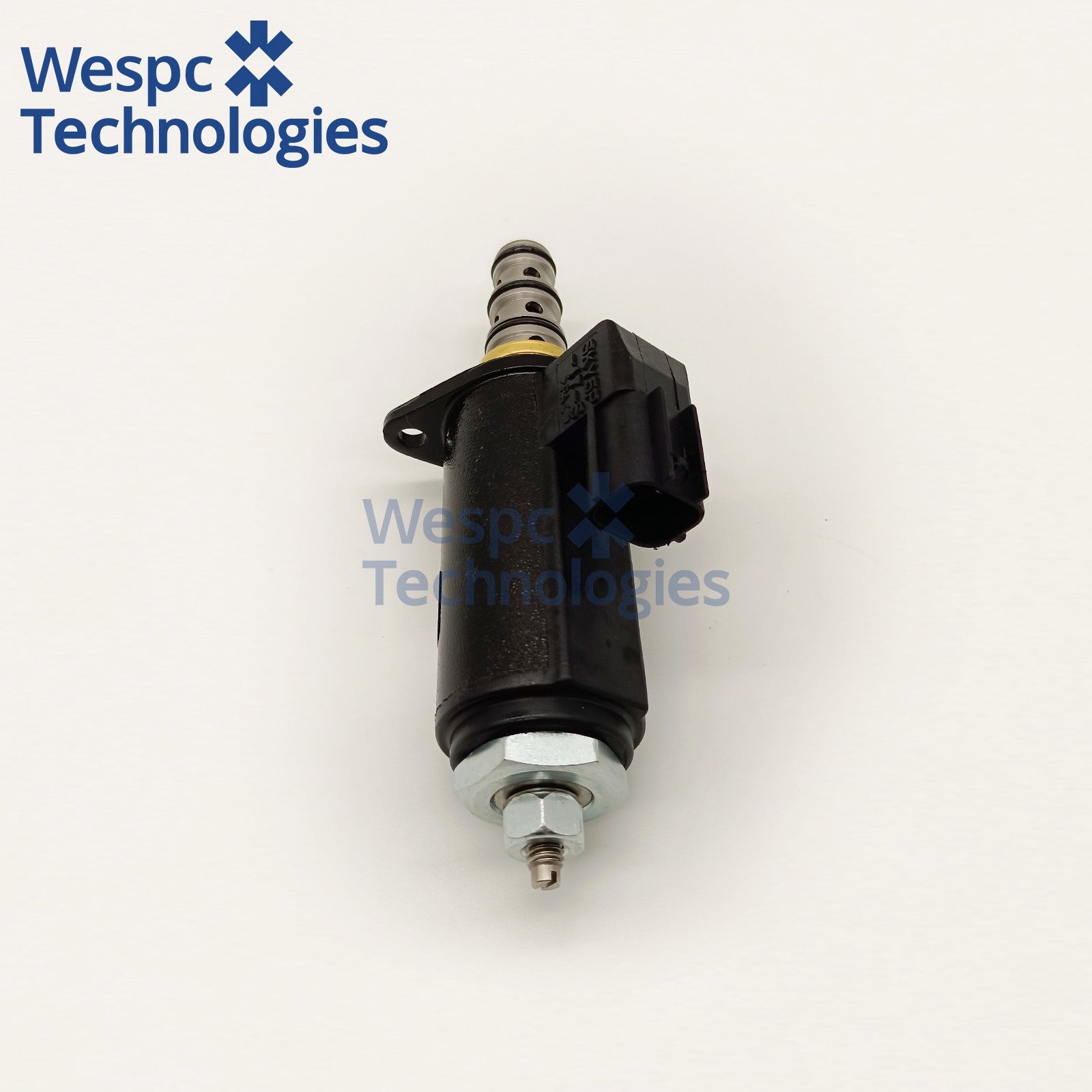

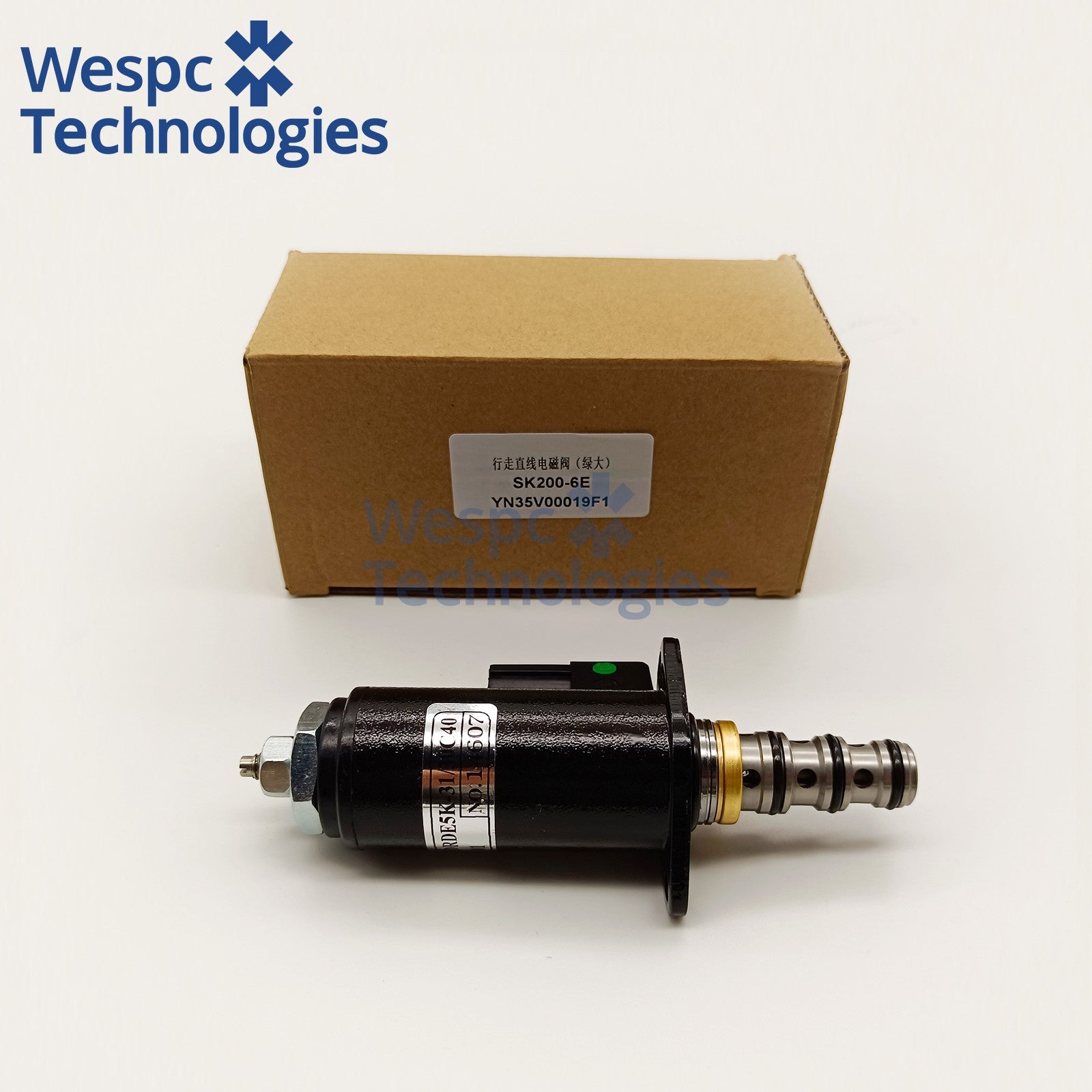

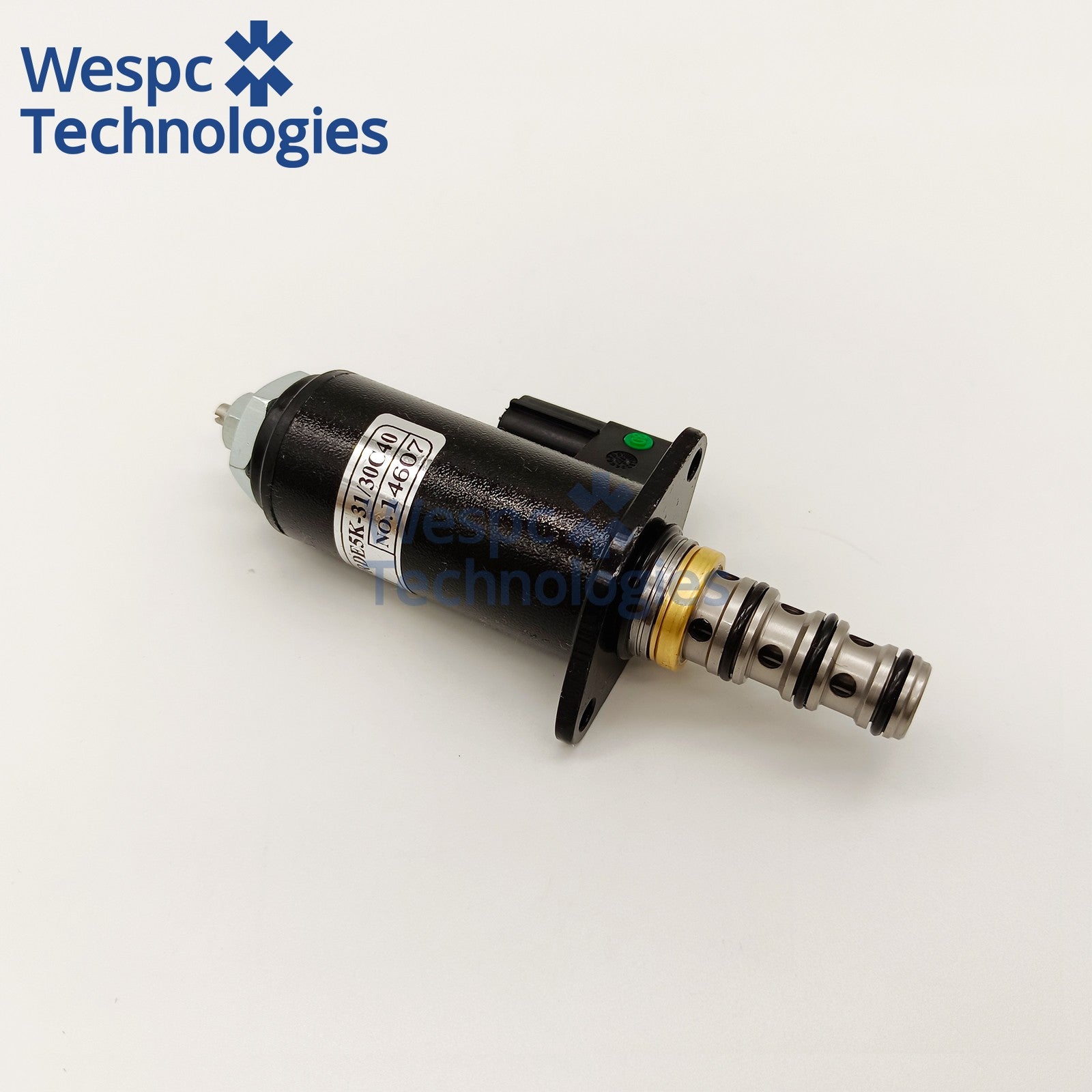

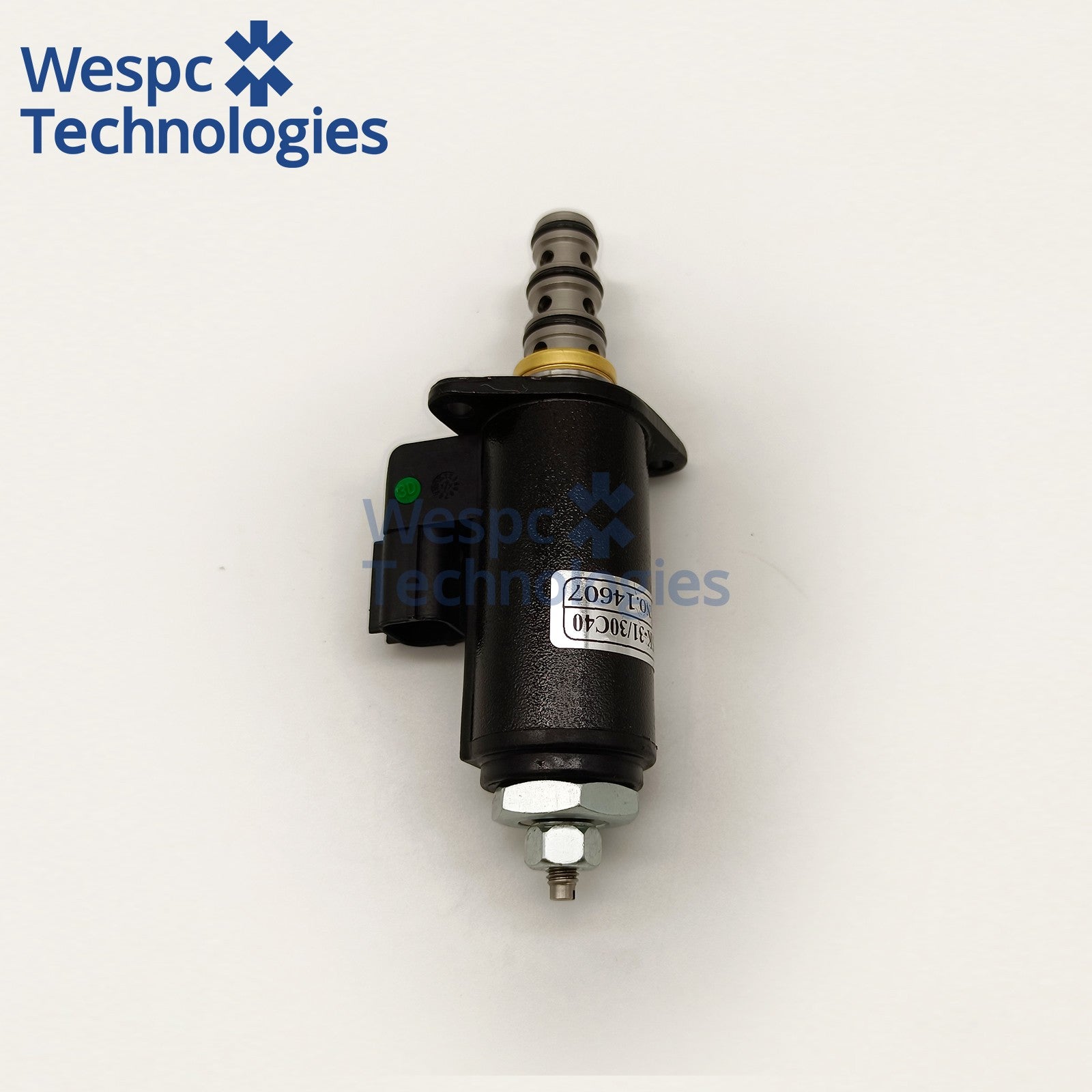

This is a
proportional solenoid valve for hydraulic excavators, with universal part number
YN35V00019F1, also compatible with
YB35V00003F1 / YB35V00005F1 / KDRDE5K-31 / 30C50-111. It functions as an electro-hydraulic proportional pressure reducing valve, converting electrical signals from the controller into precise hydraulic pilot pressure to regulate main pump displacement or valve spool movement.
Specifications
Universal Part No.: YN35V00019F1
Compatible Numbers: YB35V00003F1, YB35V00005F1, KDRDE5K-31, 30C50-111
Product Type: Cartridge Proportional Reducing Solenoid Valve
Hydraulic: Max pilot pressure ~8.8 MPa, Max control flow ~10 L/min
Seal Material: NBR (Oil resistant)
Body Material: Alloy steel, anti-rust surface
Weight: 0.5 kg
Dimensions: 14 × 7 × 7 cm
